ADA Compliant Access Ramp & Rail Accessories

Provide a Safe Crossing for Wheelchairs, Carts or Strollers


Cord Protectors
CPHD4X125
Qty:


ADA Rails
CPADARL-1GP
Qty:


ADA Ramps
CPADARP-1GP
Qty:

What's special about this ADA System?

  • Protects cables, cords and hoses at events featuring heavy foot traffic.
  • The gently sloping design prevents pedestrians from tripping over cables.
  • Textured ramp surface provides traction and resists slips.
  • Heavy duty protection with load capacity up to 40,300 lbs. per axle.
  • Easy to set up and disassemble
  • Side rails prevent accidental falls and roll-offs.
  • Click for More Features

When planning a large event (like a street fair, convention or outdoor concert), this cord protector system is a must have. Limit the possibility of customers tripping and falling over cables and hoses with this kit that includes the heavy duty cord cover, ADA ramps and rails to ensure the safety of your patrons. Choose the cord protector that will best suit your needs first, then the corresponding ADA rails and ramps. One person installation is literally a “snap”.

ADA Ramp Ordering Information -ships in 1 Week

** Cord Protector will only work in conjunction with the corresponding ADA Rails and ADA Ramps**

STEP 1: Choose cord protector
Part # Brand Of Cord Protector Description Load Capacity Channel Height Channel Width Color Price
CPHD4X125 Linebacker® HD4 4 Channel Protector, Heavy Duty 40,300 lbs/axle 1.25" 2" Yellow lid w/orange ramp
Qty:
Manufacturer Direct
CP5XHD5-YO Linebacker® HD5 5 Channel Protector, Heavy Duty 40,300 lbs/axle 1.25" 1.25" Yellow lid w/orange ramp
Qty:
Manufacturer Direct
CP5XGP5-OY Linebacker® GP5 5 Channel Protector, General Purpose 21,000 lbs/axle 1.3" 1.3" Orange lid w/yellow ramps
Qty:
Manufacturer Direct
CPGD5X125-O/B Guard Dog 5 Channel Protector, Heavy Duty 21,000 lbs/axle 1.325" 1.339" Orange lid w/black ramps
Qty:
Manufacturer Direct

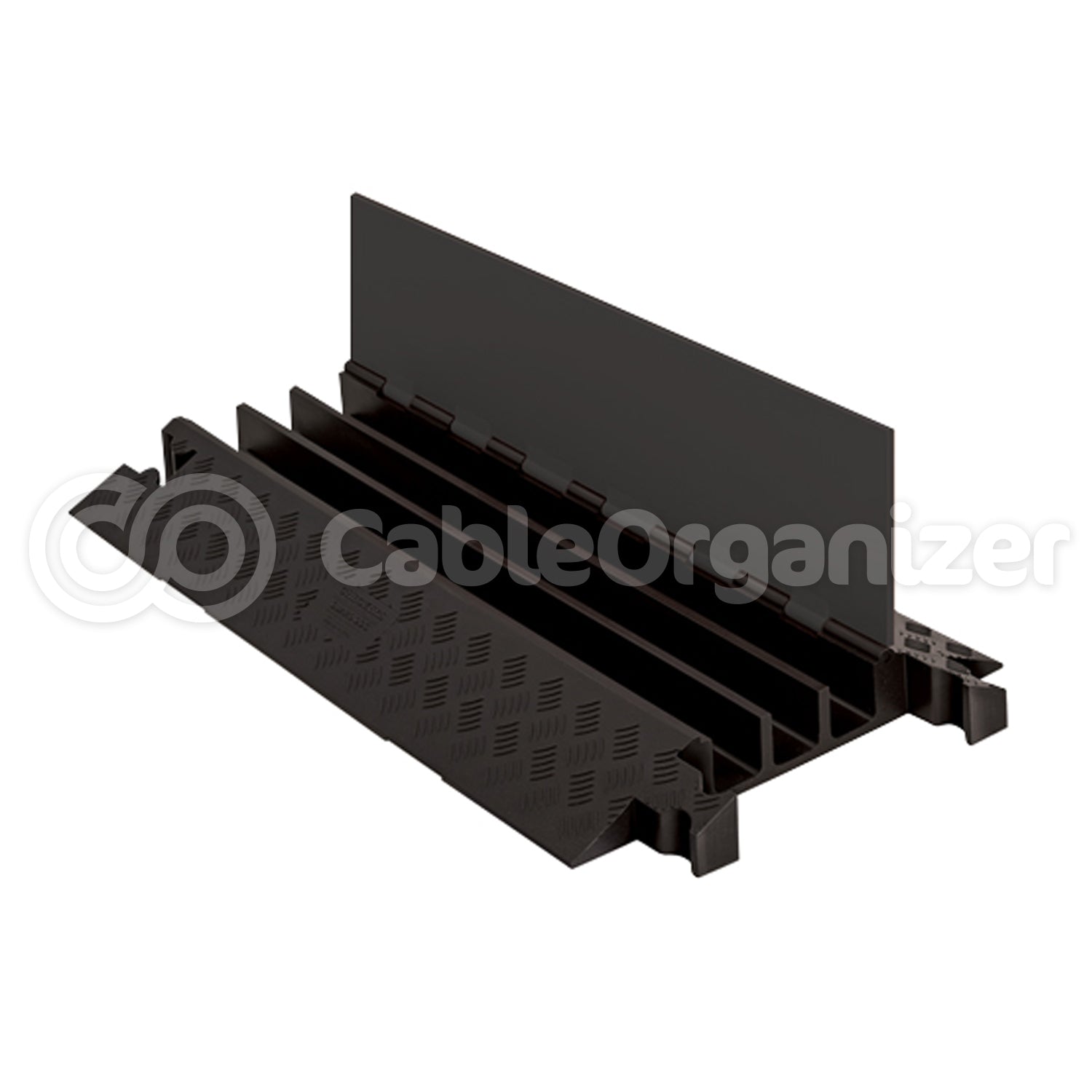

CPGD5X125-B/B Guard Dog 5 Channel Protector, Heavy Duty 21,000 lbs/axle 1.325" 1.339" Black lid w/black ramp
Qty:
Manufacturer Direct

**ADA Rails will only work in conjunction to the corresponding cord protector and ADA Ramps**

STEP 2: Choose ADA Rails that fit into your cord protector
Part # Cord Protector Part Numbers Description Color Price
CPADARL-4/5 CP5XHD5-YO
CPHD4X125
ADA Rails for the CP5XHD5 Cord Protector (Each) Yellow
Qty:
Manufacturer Direct
CPADARL-GD5 CPGD5X125-O/B
CPGD5X125-B/B
ADA Rails for CPGD5X125 Cord Protector (Each) Yellow
Qty:
Manufacturer Direct

**ADA Ramps will only work in conjunction with the corresponding cord protector and ADA Rails**

STEP 3: Choose ADA Ramps that fit into your cord protector
Part # Cord Protector Part Number Description Color Price
CPADARP-GD5 CPGD5X125-O/B
CPGD5X125-B/B
ADA Ramps for CPGD5X125 Cord Protector (Pair) Blue
Qty:
Manufacturer Direct

Cross-Guard  ADA Compliant Access Ramp

  • The 36" wide ramp allows more than one person to cross over at the same time.
  • Multiple sections can be used together for longer or wider runs.
  • Made out of strong but lightweight Polyurethane material that’s UV resistant.
  •

    WARNING! Cross-Guard® ramps and rails are compatible only with Linebacker® and Guard Dog® cable protectors as specified. Improper use with other cable protector brands may result in product failure or injury.



    Specification Data Load Capacity
    Max Load 70°F (21°C)
    Material Polyurethane (UV stabilized) Ramps 10,500 lbs. (4,463 kg) per tire
    Operating Temp. -40°F to 120°F (-40°C to 48°C) 21,000 lbs. (9,526 kg) per axle



    ADA Ramp Technical Specifications



    Part # Description A-Width B-Length C-Height Weight
    ADA Rails
    CPADARL-1GP ADA Rail for Linebacker® GP-1 1.5"
    (38.1mm)
    47.5"
    (1206.6mm)
    2" (50.8mm) 12.65 lbs.
    (5.75 kg)
    CPADARL-4/5 ADA Rail for Linebacker® HD-4 & HD-5 1.5"
    (38.1mm)
    55.5"
    (1409.7mm)
    2" (50.8mm) 12.75 lbs.
    (5.8 kg)
    CPADARL-GD5 ADA Rail for GD-5 Guard Dog 2"
    (50.8mm)
    55.5"
    (1206.6mm)
    2" (50.8mm) 15 lbs.
    (6.8 kg)
    ADA Ramps
    CPADARP-1GP ADA Ramps for Linebacker® GP-1
    (2 Ramps and 4 Connectors; same specs of all colors)
    36"
    (914.4mm)
    21.88" (555.75mm) 2" (50.8mm) 40 lbs.
    (18.1 kg)
    CPADARP-5GP ADA Ramps for Linebacker® GP-5
    (2 Ramps and 4 Connectors; same specs of all colors)
    36"
    (914.4mm)
    21.88" (555.75mm) 2" (50.8mm) 40 lbs.
    (18.1 kg)
    CPADARP-GD5 ADA Ramps for GD-5 Guard Dog
    (2 Ramps and 4 Connectors; same specs of all colors)
    36"
    (914.4mm)
    21.88" (555.75mm) 2" (50.8mm) 40 lbs.
    (18.1 kg)



    PART # NATIONAL STOCKING # (NSN)
    CP1X125-GP 5975-01-496-5274
    CP1X125-GP-DO 5975-01-496-5276
    CPADARP-4/5 5975-01-496-5277
    CPADARL-4/5 5975-01-496-5278
