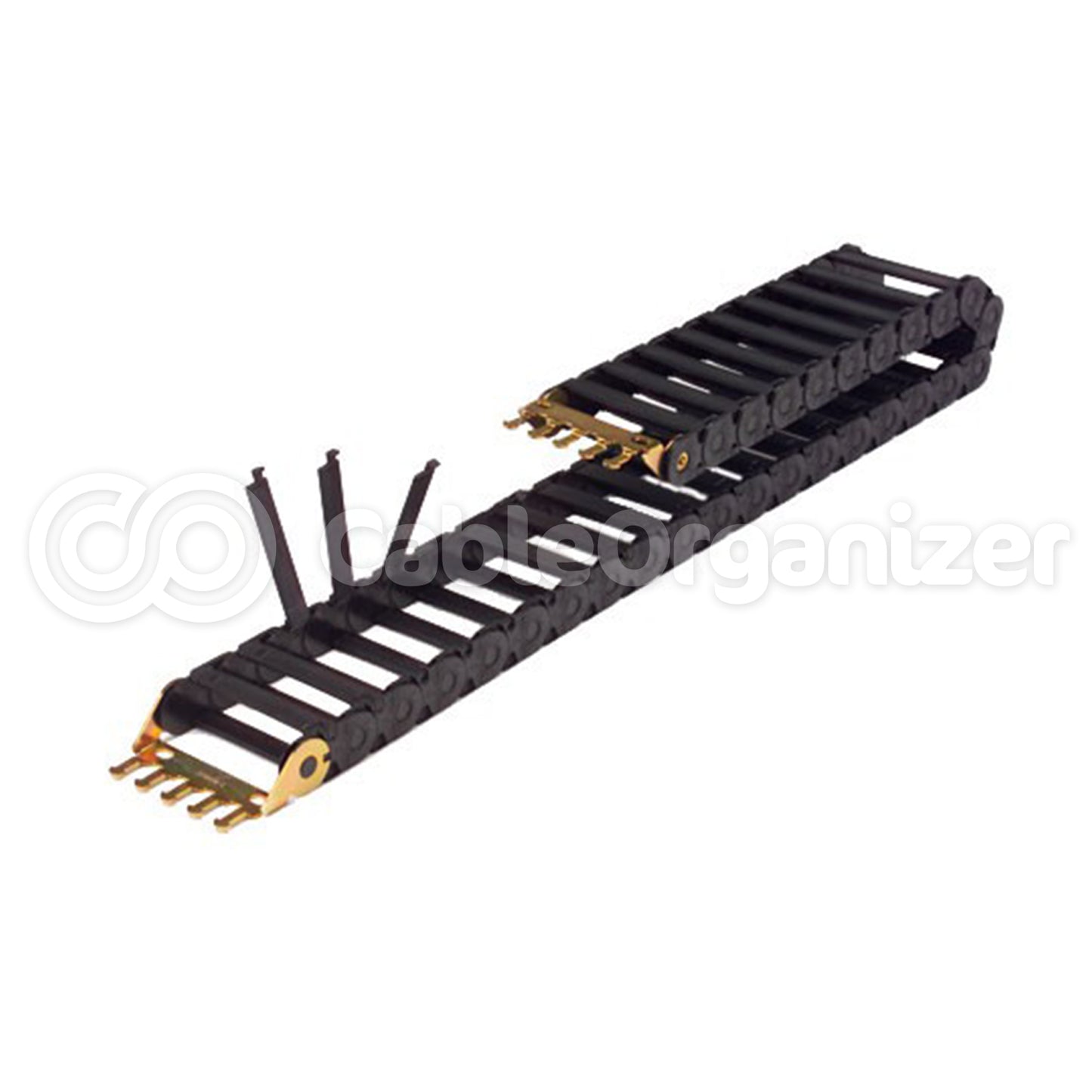

NYLATRAC™ SP Series Cable and Hose Carriers

Carriers
SP059-3-INNER-FOOTAGE
Qty:


10ft Kits
SP059-3-INNER-10FTKIT
Qty:


Accessories
SP059-BRACKET
Qty:

What's special about these cable carriers?

  • LINK HEIGHT 1.05 inches (26.67 mm)
  • Maintains proper bend radius of air, hydraulic, electric lines/cables, and ribbon cables.
  • Non-metallic, light weight, high strength link type design.
  • Non-conductive
  • Suitable for high-speed applications.
  • Limited bend radius protects cables for optimal performance.

The SP Series flexible cable track & hose carrier maintains proper bend radius of air hoses, hydraulic lines, and power and ribbon cables. Non-metallic, lightweight, high-strength link type design. Non-conductive and suitable for high-speed applications.

Interior Width - .59"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP059-3-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 1 ft. Length 1.05" 3.15" 0.20
Qty:
SP059-3-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 1 ft. Length 1.05" 3.15" 0.20
Qty:
SP059-4-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 1 ft. Length 1.48" 4" 0.20
Qty:
SP059-4-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 1 ft. Length 1.48" 4" 0.20
Qty:
SP059-5-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 1 ft. Length 1.85" 4.75" 0.20
Qty:
SP059-5-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 1 ft. Length 1.85" 4.75" 0.20
Qty:
SP059-7-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 1 ft. Length 2.85" 6.75" 0.20
Qty:
SP059-7-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 1 ft. Length 2.85" 6.75" 0.20
Qty:
SP059-85-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 1 ft. Length 3.73" 8.50" 0.20
Qty:
SP059-85-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 1 ft. Length 3.73" 8.50" 0.20
Qty:
Interior Width - 1"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP100-3-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 1 ft. Length 1.05" 3.15" 0.20
Qty:
SP100-3-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 1 ft. Length 1.05" 3.15" 0.20
Qty:
SP100-4-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 1 ft. Length 1.48" 4" 0.20
Qty:
SP100-4-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 1 ft. Length 1.48" 4" 0.20
Qty:
SP100-5-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 1 ft. Length 1.85" 4.75" 0.20
Qty:
SP100-5-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 1 ft. Length 1.85" 4.75" 0.20
Qty:
SP100-7-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 1 ft. Length 2.85" 6.75" 0.20
Qty:
SP100-7-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 1 ft. Length 2.85" 6.75" 0.20
Qty:
SP100-85-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 1 ft. Length 3.73" 8.50" 0.20
Qty:
SP100-85-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 1 ft. Length 3.73" 8.50" 0.20
Qty:
Interior Width - 1.5"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP150-3-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 1 ft. Length 1.05" 3.15" 0.23
Qty:
SP150-3-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 1 ft. Length 1.05" 3.15" 0.23
Qty:
SP150-4-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 1 ft. Length 1.48" 4" 0.23
Qty:
SP150-4-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 1 ft. Length 1.48" 4" 0.23
Qty:
SP150-5-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 1 ft. Length 1.85" 4.75" 0.23
Qty:
SP150-5-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 1 ft. Length 1.85" 4.75" 0.23
Qty:
SP150-7-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 1 ft. Length 2.85" 6.75" 0.23
Qty:
SP150-7-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 1 ft. Length 2.85" 6.75" 0.23
Qty:
SP150-85-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 1 ft. Length 3.73" 8.50" 0.23
Qty:
SP150-85-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 1 ft. Length 3.73" 8.50" 0.23
Qty:
Interior Width - 2"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP200-3-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 1.05" 3.15" 0.26
Qty:
SP200-3-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 1.05" 3.15" 0.26
Qty:
SP200-4-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 1.48" 4" 0.26
Qty:
SP200-4-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 1.48" 4" 0.26
Qty:
SP200-5-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 1.85" 4.75" 0.26
Qty:
SP200-5-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 1.85" 4.75" 0.26
Qty:
SP200-7-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 2.85" 6.75" 0.26
Qty:
SP200-7-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 2.85" 6.75" 0.26
Qty:
SP200-85-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 3.73" 8.50" 0.26
Qty:
SP200-85-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 3.73" 8.50" 0.26
Qty:
Interior Width - 2.5"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP250-3-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 1.05" 3.15" 0.28
Qty:
SP250-3-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 1.05" 3.15" 0.28
Qty:
SP250-4-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 1.48" 4" 0.28
Qty:
SP250-4-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 1.48" 4" 0.28
Qty:
SP250-5-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 1.85" 4.75" 0.28
Qty:
SP250-5-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 1.85" 4.75" 0.28
Qty:
SP250-7-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 2.85" 6.75" 0.28
Qty:
SP250-7-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 2.85" 6.75" 0.28
Qty:
SP250-85-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 3.73" 8.50" 0.28
Qty:
SP250-85-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 3.73" 8.50" 0.28
Qty:
Interior Width - 3"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP300-3-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 1.05" 3.15" 0.29
Qty:
SP300-3-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 1.05" 3.15" 0.29
Qty:
SP300-4-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 1.48" 4" 0.29
Qty:
SP300-4-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 1.48" 4" 0.29
Qty:
SP300-5-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 1.85" 4.75" 0.29
Qty:
SP300-5-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 1.85" 4.75" 0.29
Qty:
SP300-7-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 2.85" 6.75" 0.29
Qty:
SP300-7-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 2.85" 6.75" 0.29
Qty:
SP300-85-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 3.73" 8.50" 0.29
Qty:
SP300-85-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 3.73" 8.50" 0.29
Qty:
Interior Width - 4"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP400-3-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 1.05" 3.15" 0.36
Qty:
SP400-3-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 1.05" 3.15" 0.36
Qty:
SP400-4-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 1.48" 4" 0.36
Qty:
SP400-4-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 1.48" 4" 0.36
Qty:
SP400-5-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 1.85" 4.75" 0.36
Qty:
SP400-5-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 1.85" 4.75" 0.36
Qty:
SP400-7-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 2.85" 6.75" 0.36
Qty:
SP400-7-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 2.85" 6.75" 0.36
Qty:
SP400-85-INNER-FOOTAGE Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 3.73" 8.50" 0.36
Qty:
SP400-85-OUTER-FOOTAGE Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 3.73" 8.50" 0.36
Qty:

SP series mount bracket drawing

Brackets
Part # Description Hole to Hole Dimension Slotted Hole Mounting Dimension Weight Price
SP059-BRACKET Nylatrac SP Cable and Hose Carrier Brackets, 1 Pair One Slot" 0.26" x 0.40" (7x10) Slot Type 0.75
Qty:
SP100-BRACKET Nylatrac SP Cable and Hose Carrier Brackets, 1 Pair 0.59" 0.26" x 0.40" (7x10) Slot Type 0.75
Qty:
SP150-BRACKET Nylatrac SP Cable and Hose Carrier Brackets, 1 Pair 0.94" 0.26" x 0.40" (7x10) Slot Type 0.75
Qty:
SP200-BRACKET Nylatrac SP Cable and Hose Carrier Brackets, 1 Pair 1.44" 0.26" x 0.40" (7x10) Slot Type 0.75
Qty:
SP250-BRACKET Nylatrac SP Cable and Hose Carrier Brackets, 1 Pair 1.94" 0.26" x 0.40" (7x10) Slot Type 0.75
Qty:
SP300-BRACKET Nylatrac SP Cable and Hose Carrier Brackets, 1 Pair 2.44" 0.26" x 0.40" (7x10) Slot Type 0.75
Qty:
SP400-BRACKET Nylatrac SP Cable and Hose Carrier Brackets, 1 Pair 3.44" 0.26" x 0.40" (7x10) Slot Type 0.75
Qty:

Note: one Separator required for each link that needs a separator, usually every 3-4 links

Nylatrac™ SP Series snap-in Separator
Part # Description Shipping Weight Price
SP0008 Separator for SP Series Carrier 0.3 lb
Qty:
Manufacturer Direct
10 FT KITS
Interior Width - .59"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP059-3-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.20
Qty:
SP059-3-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.20
Qty:
SP059-4-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.20
Qty:
SP059-4-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.20
Qty:
SP059-5-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.20
Qty:
SP059-5-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.20
Qty:
SP059-7-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.20
Qty:
SP059-7-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.20
Qty:
SP059-85-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.20
Qty:
SP059-85-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 0.59" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.20
Qty:
Interior Width - 1"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP100-3-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.20
Qty:
SP100-3-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.20
Qty:
SP100-4-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.20
Qty:
SP100-4-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.20
Qty:
SP100-5-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.20
Qty:
SP100-5-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.20
Qty:
SP100-7-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.20
Qty:
SP100-7-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.20
Qty:
SP100-85-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.20
Qty:
SP100-85-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.20
Qty:
Interior Width - 1.5"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP150-3-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.23
Qty:
SP150-3-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.23
Qty:
SP150-4-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.23
Qty:
SP150-4-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.23
Qty:
SP150-5-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.23
Qty:
SP150-5-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.23
Qty:
SP150-7-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.23
Qty:
SP150-7-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.23
Qty:
SP150-85-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.23
Qty:
SP150-85-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 1.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.23
Qty:
Interior Width - 2"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP200-3-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.26
Qty:
SP200-3-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.26
Qty:
SP200-4-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.26
Qty:
SP200-4-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.26
Qty:
SP200-5-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.26
Qty:
SP200-5-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.26
Qty:
SP200-7-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.26
Qty:
SP200-7-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.26
Qty:
SP200-85-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.26
Qty:
SP200-85-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.26
Qty:
Interior Width - 2.5"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP250-3-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.28
Qty:
SP250-3-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.28
Qty:
SP250-4-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.28
Qty:
SP250-4-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.28
Qty:
SP250-5-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.28
Qty:
SP250-5-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.28
Qty:
SP250-7-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.28
Qty:
SP250-7-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.28
Qty:
SP250-85-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.28
Qty:
SP250-85-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 2.5" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.28
Qty:
Interior Width - 3"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP300-3-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.29
Qty:
SP300-3-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.29
Qty:
SP300-4-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.29
Qty:
SP300-4-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.29
Qty:
SP300-5-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.29
Qty:
SP300-5-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.29
Qty:
SP300-7-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.29
Qty:
SP300-7-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.29
Qty:
SP300-85-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.29
Qty:
SP300-85-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 3" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.29
Qty:
Interior Width - 4"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
SP400-3-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.36
Qty:
SP400-3-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.05" 3.15" 0.36
Qty:
SP400-4-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.36
Qty:
SP400-4-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.48" 4" 0.36
Qty:
SP400-5-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.36
Qty:
SP400-5-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 1.85" 4.75" 0.36
Qty:
SP400-7-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.36
Qty:
SP400-7-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 2.85" 6.75" 0.36
Qty:
SP400-85-INNER-10FTKIT Nylatrac SP Series - Inner Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.36
Qty:
SP400-85-OUTER-10FTKIT Nylatrac SP Series - Outer Hinge Bar, 4" Interior Width, 10 ft. Kit, 1 Pair Brackets 3.73" 8.50" 0.36
Qty:
  • Integrated hinge bars open for easy access to cables or hoses.
  • Double lockout design for increased strength.
  • Optional interior Link Separator available.
  • Optional Mounting Brackets available.
  • Bulk Kits include 10 feet of hose/cable carrier and mounting brackets.
  • Available in Black

    •

    Standard Mounting Bracket

    side view drawing of SP series

    Standard Carrier offers hinge bars at bottom location

    cross section of SP link

    Part # A
    inches/ mm    		 C
    inches/ mm    		 Q
    inches/ mm    		 Weight
    #/Ft. KG/ m
    G-SP059 0.59/ 14.99 1.05/ 26.67 One Slot 0.35/ 0.52
    G-SP100 1.00/ 25.40 1.46/ 37.08 0.59/ 14.99 0.37/ 0.56
    G-SP150 1.50/ 38.10 1.96/ 49.78 1.08/ 27.43 0.42/ 0.63
    G-SP200 2.00/ 50.80 2.46/ 62.48 1.59/ 40.39 0.45/ 0.68
    G-SP250 2.50/ 63.50 2.96/ 75.18 2.06/ 52.32 0.48/ 0.72
    G-SP300 3.00/ 76.20 3.46/ 87.88 2.59/ 65.78 0.55/ 0.83
    G-SP400 4.00/ 101.6 4.46/ 113.3 3.59/ 91.19 0.62/ 0.93



    Height R
    inches/mm    		 H
    inches/mm    		 K
    inches/mm    		 CL
    #/Ft. KG/m
    3 1.05/ 26.67 3.15/ 80.01 2.78/ 70.49 5.70/ 144.78
    4 1.48/ 37.46 4.00/ 101.60 3.21/ 81.41 7.03/ 178.56
    5 1.85/ 46.99 4.75/ 120.65 3.58/ 90.81 8.21/ 208.53
    7 2.85/ 72.39 6.75/ 171.45 4.58/ 116.20 11.35/ 288.29
    8.5 3.73/ 94.62 8.50/ 215.90 5.46/ 138.56 14.10/ 358.14



    Recommendations:

  • Length (L)
  • Length requirement calculation: (Travel / 2) + ( Curve Length (CL)) + (Offset distance from center) = Length
  • Mount the stationary (fixed) end of the carrier at the center of travel, thus minimizing the required length.
  • If center mounting of the fixed end is not possible, add the distance offset from center to the carrier length calculation.
  • Interior Width (A):
  • For each cable, allow 10% Cable Clearance
  • For each hose, allow 20% Hose Clearance
  • Do not fill carrier over 60%
  • Height (H): The overall height of the carrier at the loop. It is recommended that 2.5 inches clearance should be provided above the carrier to account for built in camber.
  • Radius (R): The Radius of the carrier should be 8 times the largest cable or hose outside diameter.

    •

    Related Articles



    How-To Corner



    Request A Quote

    Did you know that we can give you a quote for most of our products, including shipping?

    You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)

    Questions & Answers

    Do you have any questions about this product?
    Let our experts and customers resolve all your doubts
