Wall & Ceiling Mounts for TV's and Security Monitors

• Holds most 10" - 23" LCD Monitors or 37" - 63" plasma displays
• Load capacity: 25 - 180 lbs
• Lifetime manufacturer warranty
• Available in powder coat finishes of black, silver, or white

Known for quality and value, VMP mounting systems hang easily from walls or ceilings, and are specially designed for maximum tilt and swivel capacity. This flexibility and rotating capability allows for easy viewing from any angle. You do not need a different mount for every job. Maximum adjustability gives you full spectrum coverage with fewer part numbers.

Manufactured for strength from tempered high-grade steel with a scratch resistant finish. They perform easily to stated load capacity and have been vigorously tested for safety. All VMP products have a lifetime warranty and easy to read instructions included with every mount, with no special tools required for assembly or installation.

Universal LCD Monitor Wall Mount (VMP-LCD-1)

• Multi-configurable: Can be configured as a single arm, double arm articulating, or near flush mount with parts provided
• Holds most 10" to 23" LCD monitors
• Accommodates monitors with 75 or 100 mm VESA standards
• Adjustable -5 degree to +30 degree tilt
• Rotates 240 degrees at the monitor and 160 degrees at the wall
• Rotates 240 degrees at the elbow joint (double arm configuration)
• Includes feed-through wall plate with decorative cover
• Includes clip-based cable management system
• Load capacity: 25 lbs
• Available in silver or black powder coat finish
• Lifetime Warranty

Universal LCD Monitor Ceiling Mount (VMP-LCD-C)

• Holds most 10" - 23" LCD Monitors
• Accommodates monitors with 75 or 100 mm VESA standards
• Mast telescopes 17" to 27" from the ceiling
• Rotates 260 degrees (ceiling) and has adjustable -5 degree to +30 degree tilt
• Rotates 240 degrees at the monitor
• Includes clip-based cable management system
• Load capacity: 25 lbs
• Available in silver, black, or white powder coat finish
• Lifetime Warranty

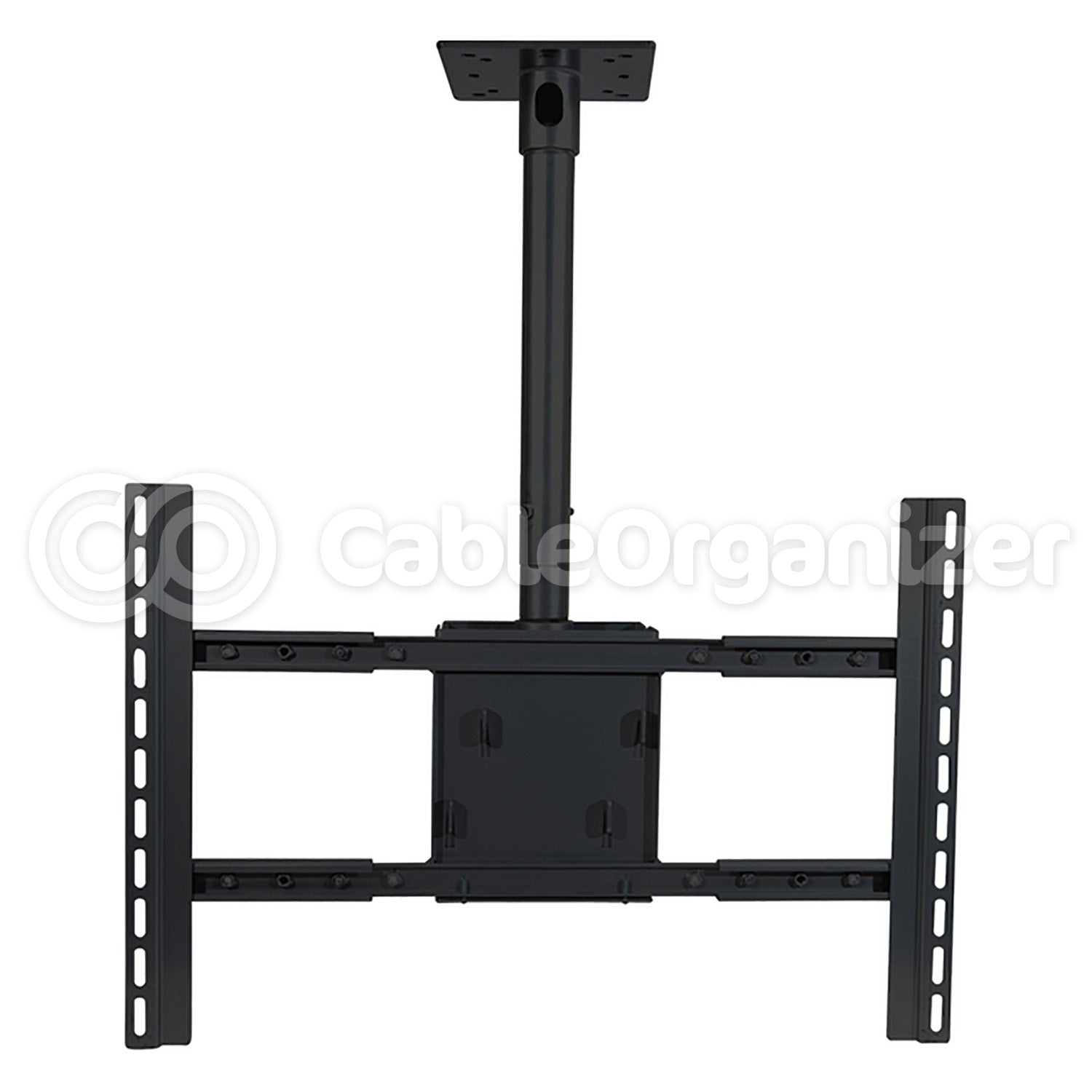

Universal Plasma Ceiling Mount (VMP-PDS-LC)

• Holds most 37" to 63" plasma displays
• Mounting rails adjust from 8.5" to 35" (left to right)
• Mounting rail length is 20"
• Mast telescopes 18" to 30" from the ceiling
• Rotates 360 degrees and has adjustable 0 to 15 degree tilt
• Load capacity: 180 lbs
• Available in silver or black powder coat finish
• Lifetime warranty

Universal Plasma Flush Wall Mount (VMP-FP-LF)

• Holds 37" - 63" plasma displays
• Mounting rails adjust from 8.5" to 35" (left to right)
• Mounting rail length is 20"
• Distance from the wall to the back of the monitor is 1.5"
• Load capacity: 180 lbs
• Available in silver powder coat finish
• Lifetime warranty

Universal Plasma Articulating Wall Mount (PDM-W)

Holds most 37" - 63" plasma displays

Mounting rails adjust from 8" to 39" (left to right)

Mounting rail length is 18.5"

Rotates 45 degrees and has adjustable -5 degree to +20 degree tilt

Depth with arms fully collapsed: 4"

Depth with arms fully extended: 24"

Load capacity: 180 lbs

Available in silver powder coat finish
