Vinyl Flex Glass® - Grade C

Vinyl Flex Glass® - Grade C

Built To Withstand Mechanical Stress

Vinyl Flex Glass® (VG) sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a firmly bonded plasticzed polyvinylchloride film. This durable sleeving will withstand mechanical stress and holds it dielectric strength on all bends. Vinyl Flex Glass® is used for supplementary insulation on transformer, motor, generator, and resistor leads. Also other applications include television, radio, and other electric circuits where it can be pushed back to permit soldering. Highly resistant to acids and solvents, and will withstand tough assembly handling. The Vinyl compound is designed for continuous operation at 130°C temperatures, while providing excellent abrasion and cut-through resistance.

$5.77
$5.77 $5.77
Sale Sold out
Black

Part Number: VGCG.00BK-5

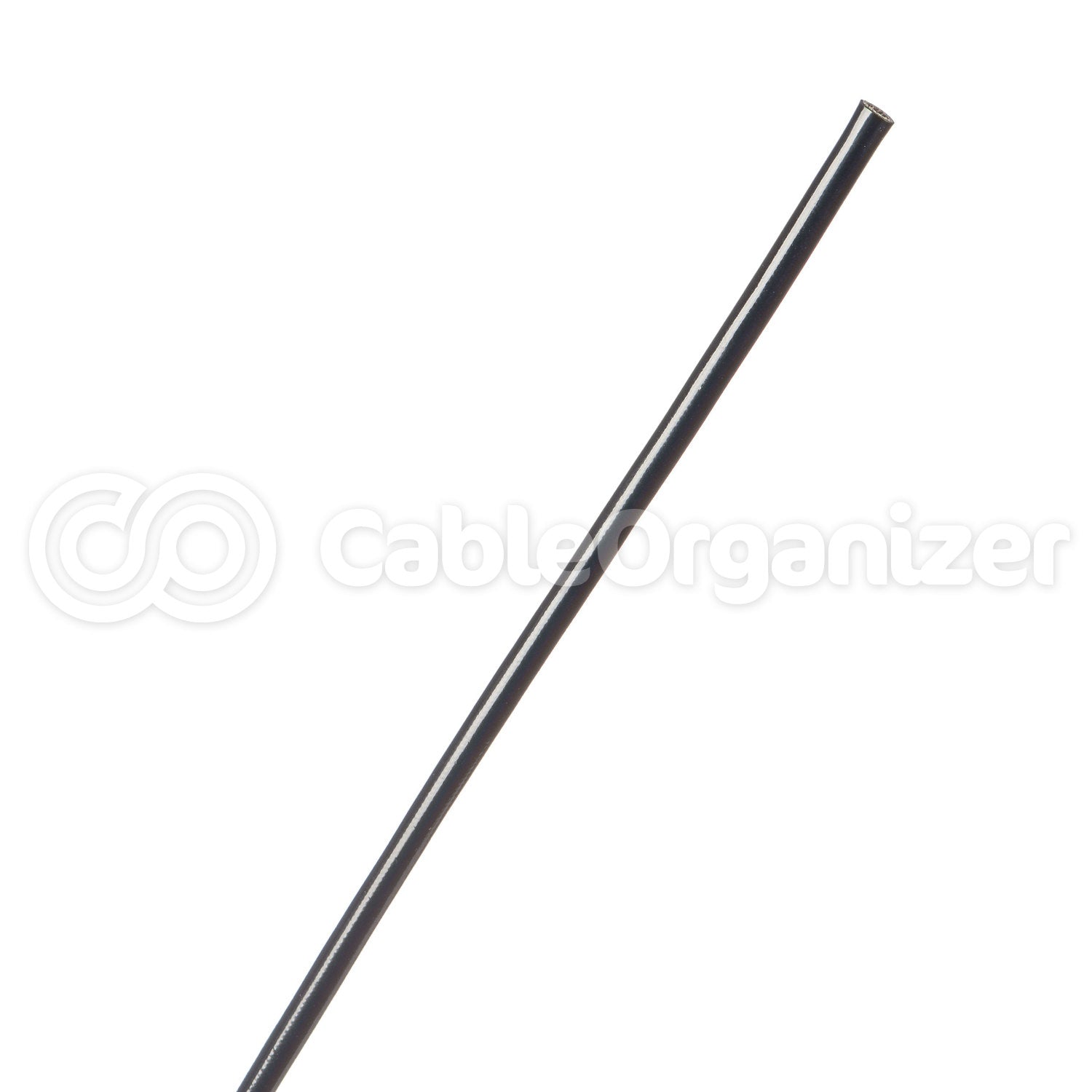

Name: Vinyl Flex Glass® - Grade C - Vinyl Coated Fiberglass - 00 AWG - Black - 5 ft cuts

$5.77
$5.77 $5.77
Sale Sold out
Looking for matching accessories?

  • RATED TO 266°F (130°C) - CLASS H

  • 2,500V

  • CUT-THROUGH RESISTANCE

  • ABRASION RESISTANT

  • EXCELLENT LOW TEMP FLEXIBILITY

  • CUT WITH SCISSORS

  • Rated up to 266°F
  • Cut-through & Abrasion Resistant
  • MIL-I-DTL-003190/2
  • Excellent Low Temp Flexability
  • Class: Class H Rated (266°F/130°C)
  • Grade: Grade C (2,500 V)
  • Material: Vinyl Coated Fiberglass
  • Operating Temp: –13°F to 266°F (-25°C to 130°C)
  • Colors: Black, White, Blue, Yellow, and Green
  • Recommended Cutting Tool: Scissors
VGC Vinyl Flexglass Grade C
