Tripp Lite SmartRack™ Open Frame Racks

• Allows you to easily organize and secure network rack equipment.
• Toolless button holes to accept PDUs or cable managers.
• Textured powder coat paint process protects the racks from rust and corrosion.

The use of open frame racks affords a less expensive alternative to the standard rackmount enclosures. There are a host of accessories shown below which are available, including shelves, extra mounting rails, stabilization and airflow management products, patch panels and more.

• Multiple units can be bolted together side by side for organization and maximization of space.
• Easy assembly so that anyone can set up your systems.
• All units can be bolted down for added security and safety.
• The units you will install in the spaces will be set properly thanks to the self squaring design.
• Select from 13U to 45U which means you select the number of spaces you need to fill with rackmount equipment.
• SmartRack 4-post open frame racks are ideal for cost conscious 19" rack mount applications.
• 5-year manufacturer's repair or replacement warranty.

Available in 2 models:

• 2-post open frame rack
• Black aluminum with round threaded and numbered mounting holes
• Heavy duty aluminum construction supports up to 800 lbs. of equipment
• 4-post open frame rack
• Square, numbered mounting holes
• Constructed from heavy-duty cold-rolled steel and supports 1000 lbs. of equipment
• 24" - 36" adjustable mounting depth

Accessories

Tripp Lite has a complete line of SmartRack accessories available for you to customize your application. These accessories were designed for easy installation and years of reliable service to complement your SmartRack enclosure or open frame rack system.

B021-000-17: 1U Rackmount Console with 17" LCD

• Control an entire network in just 1U of rack space
• Includes keyboard, 17" LCD screen, and touch pad
• Input 120-240 VAC
• Space saving 1U 19" rack-mount drawer design
• 17" LCD TFT active-matrix, color pane
• Supports resolutions of up to 1280x1024@65 Mhz
• Works with any KVM Switch with PS/2 console ports
• Sleep mode when the monitor cover is closed
• Installs quickly and easily
• 1-year limited manufacturer's warranty
• Package Includes:

1. 1U Rackmount Console with 17" LCD, keyboard and touch pad
2. KVM Cable Kit ( HD15M to HD15M + 2 PS2 Male )
3. AC Power Cord
4. User Manual

SR1UPANEL10: (10)19" 1U blanking panels

• Fills 1 to 10U of rack space
• Improves cooling efficiency
• Fills unused rack spaces to optimize airflow and prevent re-circulation
• Toolless mounting
• Installation instructions included

Shelves:

SRSHELF2P: Fixed Shelf, 2U Cantilever mount

• 2 or 4-post rack compatible
• 18" deep cantilever shelf supports monitors and other equipment
• Cold rolled steel with black finish
• Use two shelves back to back to create a deep fixed shelf in 2-post racks
• Supports up to 60 lbs.
• Mounting hardware included

SRSHELF4PHD: Fixed Heavy-Duty Shelf

• Supports up to 250 lbs.
• Designed for 4-post rack mounting
• 25.5" shelf depth
• Accommodates tower units, monitors, and other equipment
• Cold rolled steel with black finish
• Required mounting hardware included

SRSHELF4PSL: Sliding Shelf mountable rack

• Sliding Shelf mountable rack accessory
• Designed for 4-post rack mounting
• 16" shelf depth, supports up to 50 lbs.
• Extendible shelf accommodates tower units, monitors, and other equipment
• Cold rolled steel with black finish
• Required mounting hardware included

SRSHELF4PSLHD: Heavy Duty Sliding Shelf

• Supports up to 100 lbs.
• Designed for 4-post rack mounting
• 26" shelf depth
• Fully extendible shelf accommodates tower units, monitors, and other equipment
• Cold rolled steel with black finish
• Required mounting hardware included

Cable Management:

SRCABLERING1U: 1U 19" Horizontal Cable Manager

• Helps eliminate cable stress
• Organizes cables within SmartRack enclosure or open rack
• Cold rolled steel with black finish
• Required mounting hardware included

SRCABLERING2U: 2U 19" Horizontal Cable Manager

• Helps eliminate cable stress
• Organizes cables within SmartRack enclosure or open rack
• Cold rolled steel with black finish
• Required mounting hardware included

SRCABLEDUCT1U: 1U 19" Horizontal Cable Manager Finger Duct with Cover

• Helps eliminate cable stress
• Organizes cables within SmartRack enclosure or open rack
• Cold rolled steel with black finish
• Required mounting hardware included

Fans:

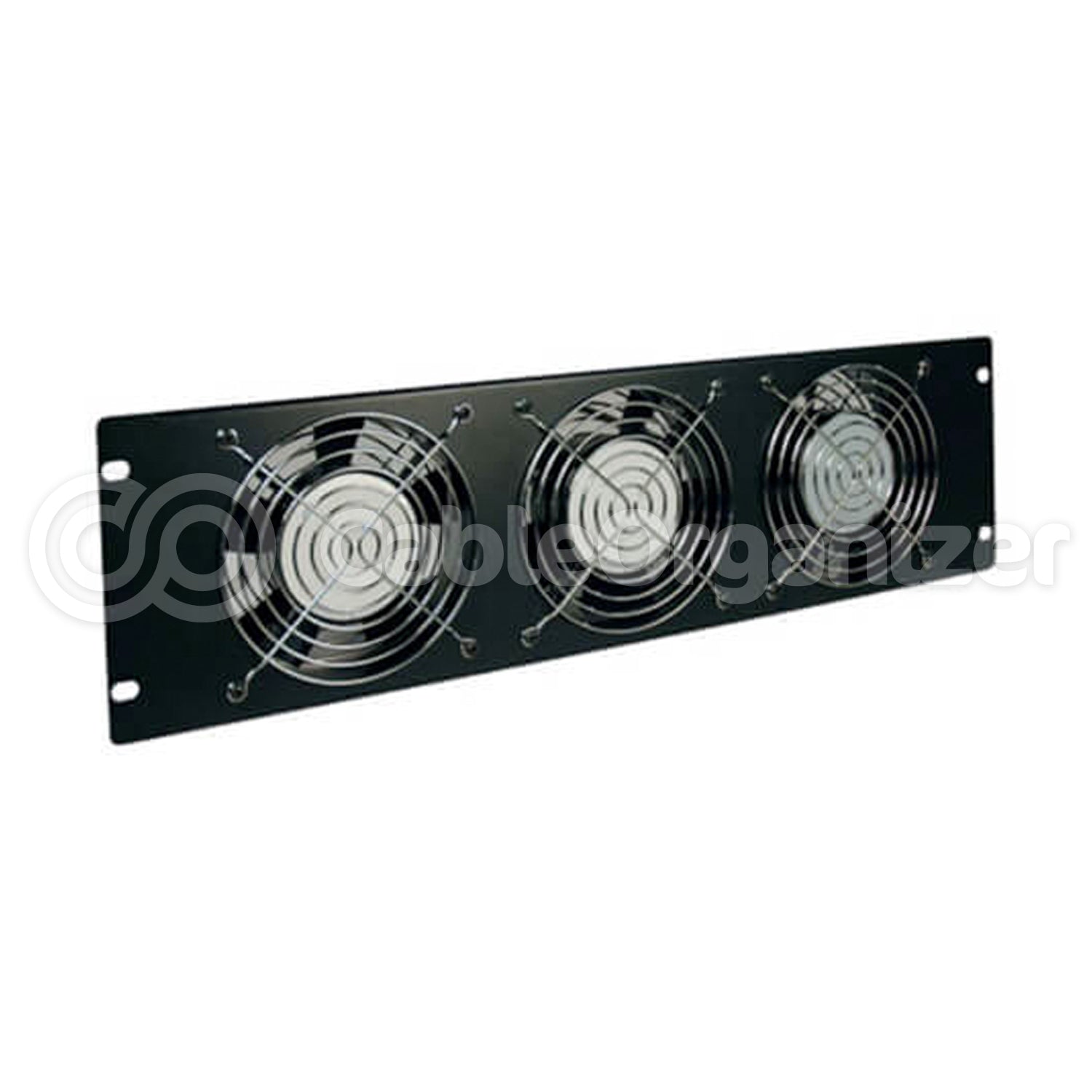

SRXFAN3U: 3U rack mount fan panel

• Ideal for increasing the ventilation of SmartRacks
• Features (3) 230V fans mounted in a 3U rack pane
• C14 power inlet
• Cold rolled steel with black finish
• Required mounting hardware included
• User-supplied cord required

SRFAN3U: 3U Panel-mount Triple Fan Accessory

• Increases ventilation of SmartRacks, 240 cubic feet of air per minute
• (3) 4", 120V panel-mounted fans
• Requires 3U of space at the top of rear rails
• 6' cord
• Lifetime product performance warranty from manufacturer
• Mounting hardware included

Hardware:

SRCAGENUTS: Square hole hardware kit

• Fastens equipment to square hole rack mount rails
• Compatible with all square hole racks (EIA 310D)
• Package includes:
• (50) Zinc cage nuts
• (50) 5/8" cylindrical head screws
• (50) PVC white flat washers
• (50) PVC black flat washers

SRBOLTDOWN Bolt-down Kit for cabinets and racks

• Enables SmartRack to be secured to concrete floor
• Provides extreme stabilization and security
• Package Includes:
• (4) Concrete inserts
• (4) Bolts
• (4) Fender washers

SRSCREWS: Threaded hole hardware kit

• Fastens equipment to threaded hole rack mount rails
• Compatible with all #12-24 threaded hole racks
• Package Includes:
• (50) #12-24, 5/8" long cylindrical head screws
• (50) PVC white flat washers
• (50) PVC black flat washers
