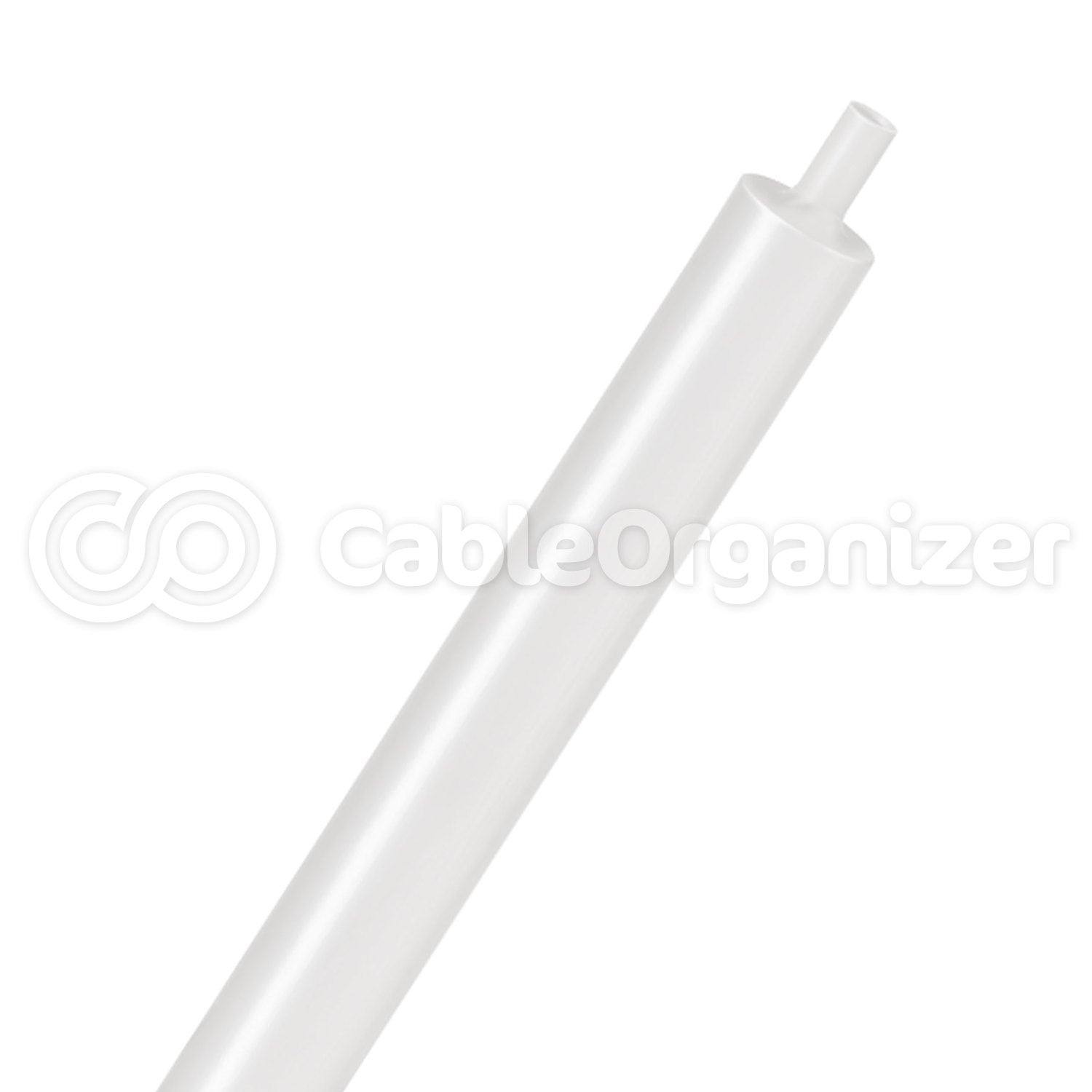

Shrinkflex® 2:1 Kynar Heatshrink Tubing
Shrinkflex® 2:1 Kynar Heatshrink Tubing
When it comes to protecting exposed wires and connectors from outside elements, there are many suitable options available, such as electrical tape and polyolefin heat shrink. These products are great for applications requiring minor protection or a cosmetic touch-up, but will ultimately fail under extreme conditions. Kynar® 2 to 1 Heat Shrink Tubing is a semi-rigid material with excellent abrasion, chemical, flammability, cut through, and high temperature resistance properties, which makes it ideal for some of the worst environmental, military, or industrial applications.
Part Number: H2K0.38CL4-12
Couldn't load pickup availability
Certifications
What's Special
What's Special
- 350°F Shrink Temp.
- RoHS, UL94, VW-1, CSA Certified
- UV and Gamma Radiation Resistant
- 2:1 Shrink Ratio
- Highly Chemical Resistant
- High-grade polyvinylidene fluoride (PVDF) material provides cables, splices, and connectors with excellent protection from abrasion, cut-through, fluids, and high temperatures.
- Shrinks and matches the contours of uneven connectors to provide an encapsulating effect that helps keep out moisture while preventing the device from cutting-through the material.
- Meets MIL-DTL-23053/8 specification to ensure material is safe and reliable for use in military applications requiring heat shrink tubing protection.
Features
Features
Kynar heatshrink tubing is is a thin-walled heat shrinkable tubing engineered from Polyvinylidene Fluoride (PVDF) polymer. Kynar is used in plenum applications where resistance to high temperature and extremely low outgassing are the primary requirements. Kynar is also very resistant to chemical damage, abrasion and cut-through.
Shrinkflex 2:1 Kynar semi-rigid heatshrink tubing is available in a wide range of sizes cut to 4 foot strips, in either Black or Clear.
Approved for Plenum Applications
Operating Temperature Range: -67° to 347°F (-55° to 175°C.)
Shrink Ratio: 2:1
Colors: Black & Clear
Specifications
