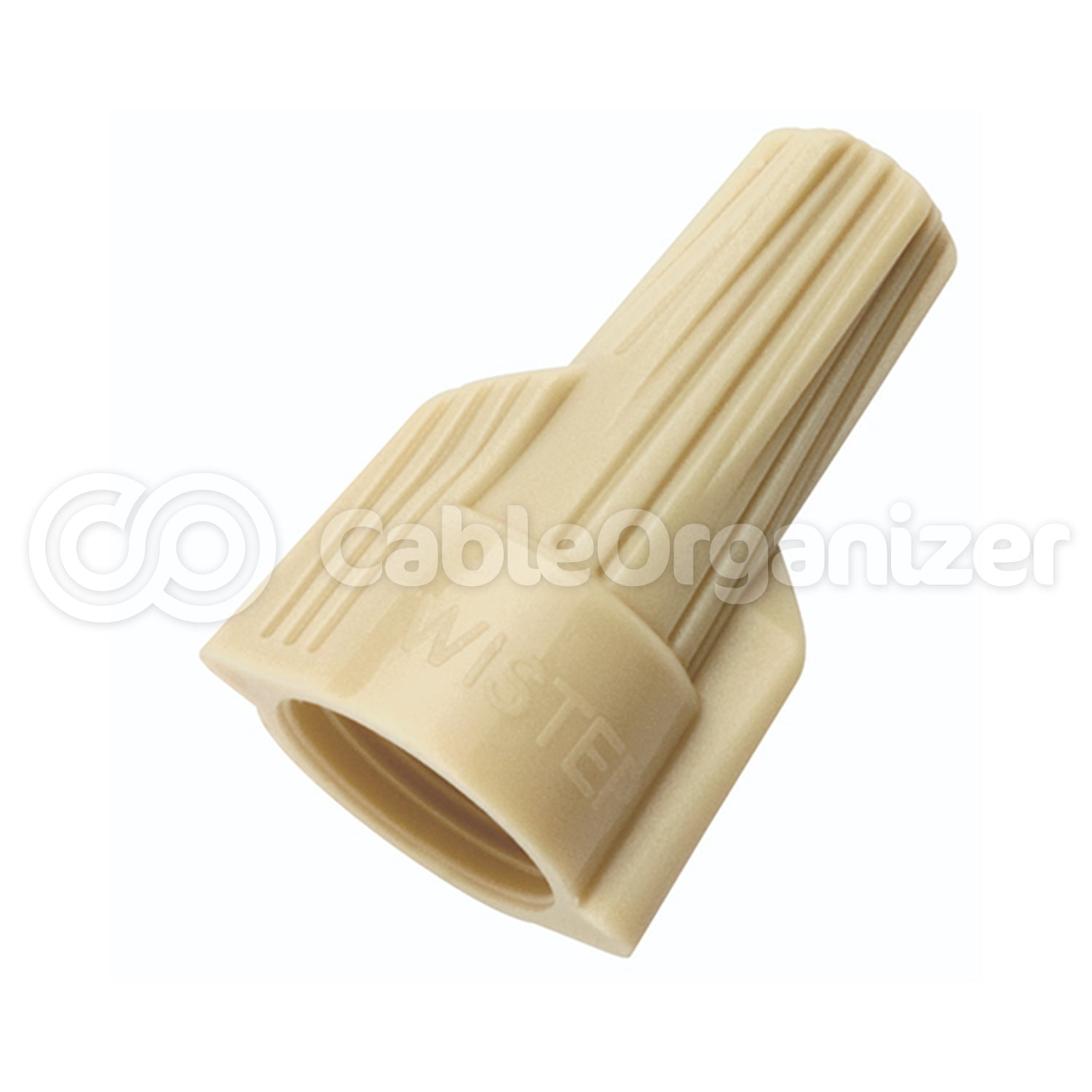

IDEAL Twister® 341® Tan Wire Connector
IDEAL Twister® 341® Tan Wire Connector
The IDEAL Twister Wire Connectors are able to handle a wide array of sizes from 22 AWG to 8 AWG. These connectors are easy to use, secure fitting, provide maximum dielectric protection and meet UL and CSA rating requirements.
Part Number: ID-30-641-EA
Couldn't load pickup availability
What's Special
What's Special
- The innovative swept-wing mold and ribbed grooves in the cap make it easy to hold on to and provide a sure grip.
- You can use these wire nuts with three #22 to three #8 AWG wire combinations.
- The deep skirting along the bottom of the wire nut provides dielectric protection and protects the user from flash-over.
Features
Features
Square-wire spring Instantly adjusts to the shape and size of the splice, then creates a vibration-resistant connection.
Hexagonal shape allows for compatibility when used with the standard nutdriver.
These polypropylene caps are rated for 600 Volt maximum.
Easy and quick to use wire nuts need no pre-twisting
UL Listed E5238 (see attached) and CSA Certified
The outer shell of the wire connector can withstand up to 105° C (221° F) making it an excellent product for jobs where there are high temperatures.
UL 94 V-2 Flame-retardant shell
Proudly made in the USA
90 day manufacturer warranty
Specifications
