• FSR High-Load Capacity Floor Boxes
1 1

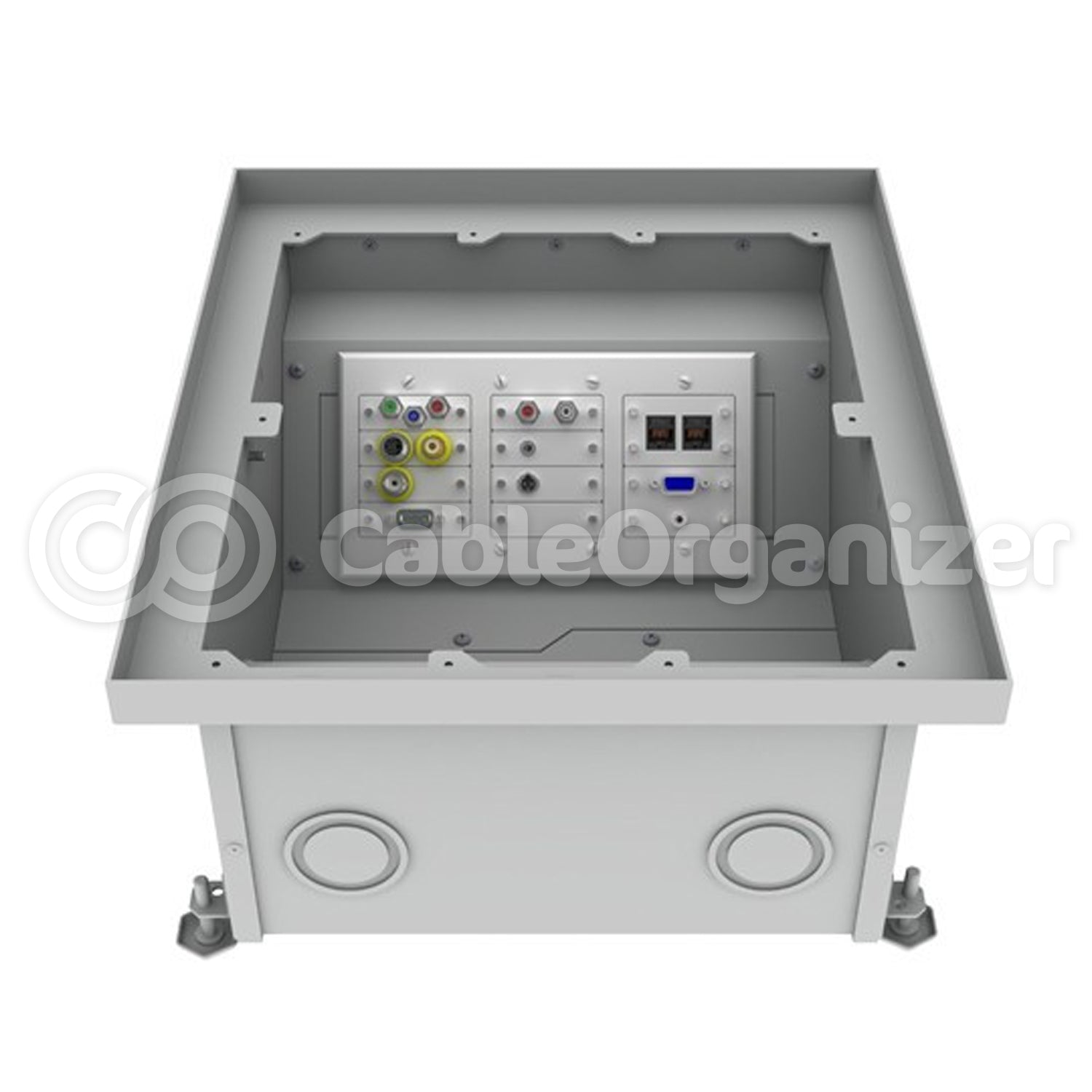

FSR High-Load Capacity Floor Boxes

FSR High-Load Capacity Floor Boxes

Heavy Duty Cable Connection and Cable Pass Through Floor Boxes for High Traffic Environments

FSR High Load Capacity Floor Boxes combine elegance with rugged durably, to withstand up to 16,000 lbs of evenly distributed weight in heavily trafficked environments. The 7/8" solid aluminum covers are available with either a smooth surface for concrete or tiled flooring, or with a 0.20" recessed edge for carpeting. Back boxes feature innovative internal brackets that provide installer with numerous configurations for both high and low voltage applications. Two universal openings accept one or two electrical plates with a maximum total size of 4 gangs.

$1,470.00
$1,470.00 $1,470.00
Sale Sold out

Part Number: FSR-FLH20-0S-C-EA

What's Special

  • Innovative design combines elegance with a high-load capacity for use in carpeted or hard floor environments with heavy foot traffic, such as ballrooms, convention centers, museums or assembly halls.
  • Supports multiple gang plate arrangements, to provide a wide range of customizable options and configurations of data, audio, video and/or power connections.
  • Rugged construction and 7/8" thick heat-treated aluminum cover meet H20 load ratings, and are capable of supporting heavy equipment traffic, such as forklifts, automobiles and scissor lifts.

Features

Equipped with multiple knockout provisions to supply convenient pass-throughs for conduit and bundled cables.

Adjustable leveling feet for simple, fast and accurate installation before concrete is poured.

Compartments can be electrically isolated, or wiring can be passed between compartments using the screwless separator system.

Two cover styles available:

Utility cover provides no exit points for cables, ideal for junction box applications.

Cable pass-through cover features two removable 3-position cam locks, which provide easy "one click" cable exiting.

UL listed 514A

Floor Boxes meet the UL scrub-water testing standards

Proudly made in the USA

Specifications

FSR High Load Capacity Floor Boxes
