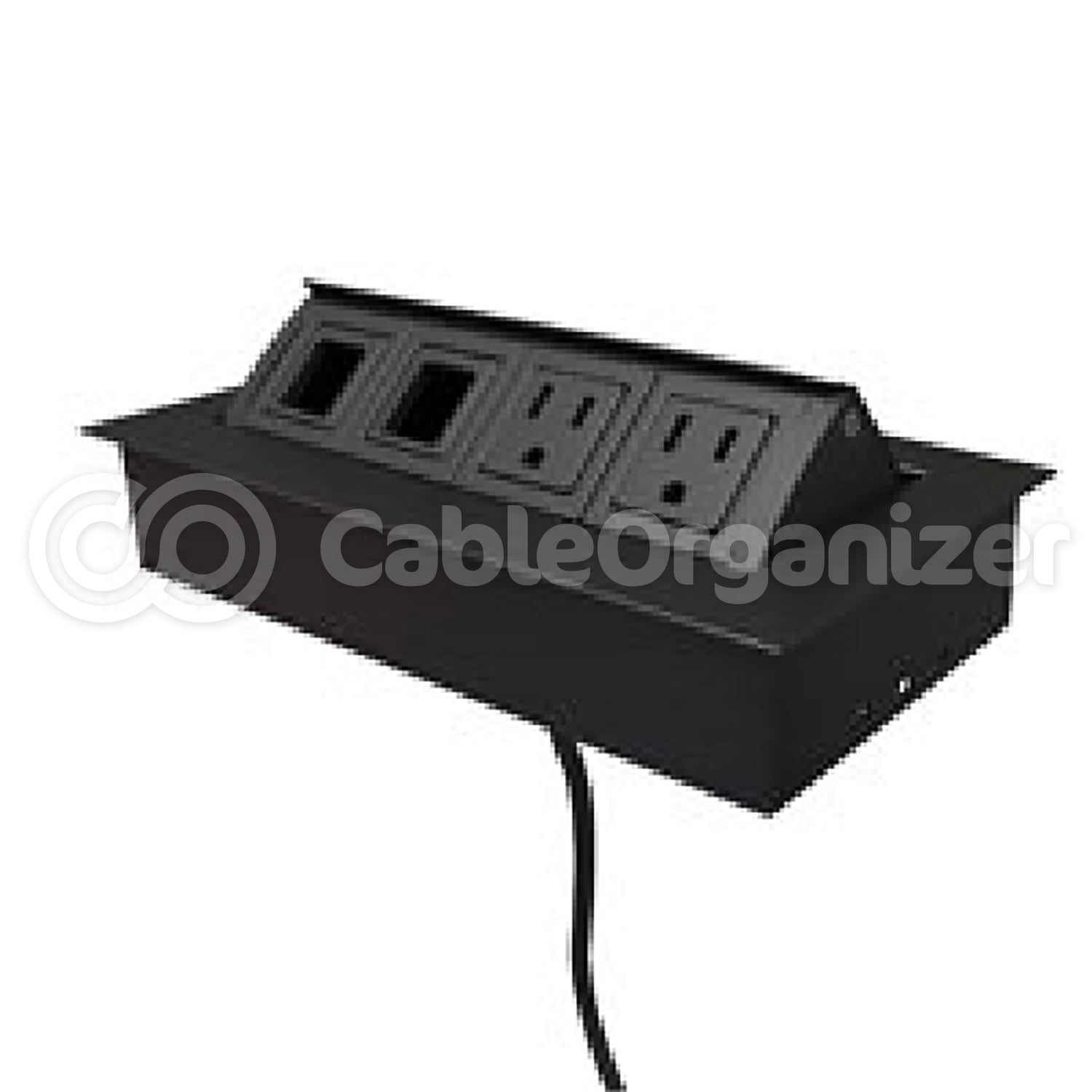

"MHO" Power / Data Distribution Unit

Power and Data Ports Available at the Touch of a MHO

BY-BE01820-M-2-2-EFF-72

Available Jacks for Open Ports

BY-BE406372-2

‹ ›

What's special about MHO Power/Data Unit?

Offers two open and two power ports within a professional looking, clear anodized aluminum PDC
Remains hidden within a nearly flush unit until "popped" open
Choice of a 6 ft or 10 ft power cable
Jacks not included
Voice/Data Adapter Kit included with each kit
Click for More Features

The "MHO" Power / Data Distribution Center (PDC) is a one touch, retractable, power and data cable management center in clear anodized aluminum. The beauty of this power and data cable management unit is unmatched. One touch, and the fluid single door opens or closes with ease. The MHO PDC is a great addition to any executive office to achieve ultimate data / power cable management.

NOTE: No returns accepted unless defective

These units are made to order & ship in 15-17 business days

Part #	Ports	Cord Length	Finish	Price
BY-BE01820-M-2-2-EFF-72	2 Power & 2 Open	6 FT	Black Anodized Aluminum	Qty:
BY-BE01820-M-2-2-EFA-72	2 Power & 2 Open	6 FT	Silver Anodized Aluminum	Qty:
BY-BE01820-M-2-2-EFF-120	2 Power & 2 Open	10 FT	Black Anodized Aluminum	Qty:
BY-BE01820-M-2-2-EFA-120	2 Power & 2 Open	10 FT	Silver Anodized Aluminum	Qty:
BY-BE01820-M-2-2-EFF-24-72	2 Power, 1 VGA (male to female), 1 Open	6 FT	Black Anodized Aluminum	Qty:
BY-BE01820-M-2-2-EFA-24-72	2 Power, 1 VGA (male to female), 1 Open	6 FT	Silver Anodized Aluminum	Qty:
BY-BE01820-M-2-2-EFF-24-120	2 Power, 1 VGA (male to female), 1 Open	10 FT	Black Anodized Aluminum	Qty:
BY-BE01820-M-2-2-EFA-24-120	2 Power, 1 VGA (male to female), 1 Open	10 FT	Silver Anodized Aluminum	Qty:
BY-BE01820-M-2-2-EFF-U1-72	2 Power, 1 Duplex USB Charger, 1 Open	6 FT	Black Anodized Aluminum	Qty:

* Custom Orders
Because they're specifically tailored to your individual needs and are therefore not resellable, we're unable to accept returns on custom-ordered items of any sort. The only circumstances under which we will allow the return of a custom order is if the item has a manufacturing defect.

Available Jacks for Open Ports

Data/Voice Jacks and Couplers
Part #	Image	Type/Features	Color	Price
BY-BE406372-2		Cat 5e RJ45 Data Jack	Black	Qty:
BY-BE555050-1		Cat 3 RJ11 Voice Coupler	Black	Qty:
BY-BE555052-1		Cat 3 RJ45 Data Coupler	Black	Qty:

Data/Voice Pre-Terminated Cables
Part #	Image	Type/Features	Cord Length	Price
BY-BE01278		Male/Male 8 Pin Data	7 ft	Qty:
BY-BE01279		Male/Male 6 Pin Voice	7 ft	Qty:
BY-BE01445		Female Cat5e Coupler/Male RJ-45	9 ft	Qty:
BY-BE01445-6-120		Siemon Cat6 Female Coupler/Male RJ-45	10 ft	Qty:
BY-BE01445-6-72		Siemon Cat6 Female Coupler/Male RJ-45	6 ft	Qty:
BY-BE01929		Panduit Cat 5e Female Coupler/Male RJ-45	9 ft	Qty:

USB Pre-Terminated Cable
Part #	Image	Type/Features	Cord Length	Price
BY-BE02155-C		USB 3.0 A Female to A Male Coupler	6 ft	Qty:
BY-BE02155-C-120		USB 3.0 A Female to A Male Coupler	10 ft	Qty:
BY-BE02156-C		Female USB-B Coupler/USB Male	4 ft	Qty:

Audio
Part #	Image	Type/Features	Cord Length	Price
BY-BE02494-C-120		Female 3.5mm Mini /Male	10 ft	Qty:

Video
Part #	Image	Type/Features	Cord Length	Price
BY-BE02493-120		Female Video DB15HD/Male DB15 Installation	10 ft	Qty:

Retrofit USB Chargers
Part #	Image	Type/Features	Cord Length	Price
BY-BE03844-AV-72		Retrofit USB Simplex Charger	White	Qty:
BY-BE03844-C-72		Retrofit USB Simplex Charger	Black	Qty:

Part #	Image	Type/Features	Overall Length	Color	Price
BY-BE1018192		HDMI Coupler	21"	Black, White	Qty:

Available in Black or clear anodized aluminum
Fluid one touch accessibility
Quantity (2) Simplex (3 prong) plug outlets
Quantity (2) open ports
Choice of either 6 FT long cord or 10 FT long cord
15 Amp capacity cord
Includes: One (1) Voice/Data Adapter Kit and Base Plate to accept couplers & jacks
UL Listed

Note: Adapters accommodate coupler/jacks by the following manufacturers. Click Here

MHO Installation Instructions (PDF)

Overall Dimensions	4-7/16" x 8-5/16"
Cutout Required	4" x 7-7/8"
Table Thickness	3/4" to 1-3/4"
# Power Outlets	2 Simplex (3 prong)
# Voice/Data Ports	2

Manuals & User Guides

MHO Installation Instructions (PDF)
MHO Installation Instructions - Español (PDF)
MHO Brochure (PDF)
Telecommunications Reference Chart for MHO (PDF)
Voice/Data Adapter Diagram & Installation Instructions (PDF)

Select the appropriate BE01421 voice/data adapter from the chart below (example: Avaya coupler/jack would use "AA" adapter). *Jacks & couplers sold separately. Note: Adapters accommodate coupler/jacks by the following manufacturers:

ADAPTER	ADAPTER OPENING	MANUFACTURER
AA	.654 X .700	Avaya/AT&T
AA	.654 X .700	Lucent Technologies
BB	.594 x .792	AMP/Tyco Cat 5 / Panduit, Keystone Type
BB	.594 x .792	Allen Tel / Leviton
CC	.594 x .792	Amp/Tyco Cat 3 type
CC	.594 x .792	Krone Cat 5 / Hubbell Cat 5
DD	No Opening	Blank (no coupler/jack)
DD	No Opening	Blank (no coupler/jack)
EE	.665 x .930	Ortronics TracJack Cat 6/5E/5
EE	.665 x .930	Ortronics TracJack Cat 6/5E/5
FF	.626 x .660	Panduit Mini-Com Connectors
FF	.626 x .660	Panduit Mini-Com Connectors
GG	.953 Diameter	Microphone jack/3-in XLR
HH	-	9 Pin Serial Adapter

Snap voice/data jack into adapter following the instructions provided with the jack
Once assembled, snap adapter into the notched, square holes in the orientation shown.
If provided, snap adapter into any 1-3/8" x 2-3/4" opening.

Voice/Data communication

"Assemble" Power and Data Center
Price

This clear anodized aluminum power and data unit clamps right onto the side of desks or conference tables, so installation doesn’t require any hole cutting.
MHO² Power / Data Distribution Center
Price

Ideal for conference room presentations, this retractable power/data center provides 3 outlets and 4 data ports for multiple laptops and projectors.
Interport
Price

This low-profile power/data center is only 2" tall when opened, and can be closed during use to hide plugs and give you a completely flat work surface.
Miniport Power and Data Center
Price

Considered a “sub-compact” power and data center, this tidy unit provides your conference table with 2 outlets and 2 data ports in a 6" x 3" footprint.
Desk Outlet Technology Accessories
Price

Complete a variety of permanent or removable desk outlet solutions with the voice, data, audio, visual and sound that is required for your application.

Did you know that we can give you a quote for most of our products, including shipping?

You can also call us toll free 866-222-0030

Questions & Answers

Question:

Can this be reconfigured - Can this be set up with 1- power and 3 data ports or does it have to be 2 and 2?

Asked by Anonymous user on 02/18/2015 11:05 AM

Answer:

- Thank you for your question. This unit can be customized. Please contact our sales team at 866-222-0030 for a quote.
Natalia C. on 01/10/2017 10:52 AM

Question:

What is the range of table thicknesses this product is compatible with?

Asked by Anonymous user on 12/6/2016 3:05 PM

Answer:

- Thank you for your question. The table thickness this is compatible with is 3/4" to 1-3/4".
Natalia C. on 01/10/2017 10:51 AM

Do you have any questions about this product?
Let our experts and customers resolve all your doubts

REVIEW SNAPSHOT®

by PowerReviews

Byrne Electrical Specialists Electrical SpecialistsMho Data / Power Distribution Unit W/ 6 Ft. Power Cord - Silver Anodized Aluminum

3.7

(based on 3 reviews)

100%

of respondents would recommend this to a friend.

Pros

No Pros

Cons

No Cons

Best Uses

No Best Uses

- Primary use:
- Business (3)

Reviewed by 3 customers

Sort by

Displaying reviews 1-3

2/24/2012

4.0

simple compact solution

By savvy builder

from Toronto Ontario Canada

About Me Tech Savvy

Pros

Compact Size
Durable Construction
Good Cord Length
Good Warranty

Cons

Best Uses

Comments about Byrne Electrical Specialists Electrical Specialists Mho Data / Power Distribution Unit W/ 6 Ft. Power Cord - Silver Anodized Aluminum:

simple clean solution used as an integrated outlet in a boardroom table which avoids all the messy lines across the table

9/7/2010

4.0

Exactly what I expected was delivered

By Perry

from Winnipeg Manitoba

About Me Professional

Pros

Compact Size
Durable Construction
Good Cord Length

Cons

Best Uses

Computers

Comments about Byrne Electrical Specialists Electrical Specialists Mho Data / Power Distribution Unit W/ 6 Ft. Power Cord - Silver Anodized Aluminum:

CSA Approval

10/16/2008

3.0

Looks great, not very durable

By Theresa

from St.Louis, MO

About Me Casual User

Pros

Versatile

Cons

Wear Easily

Best Uses

Comments about Byrne Electrical Specialists Electrical Specialists Mho Data / Power Distribution Unit W/ 6 Ft. Power Cord - Silver Anodized Aluminum:

We installed four of these in our conferece room table. The brushed metal look is very professional. We like that power/data distribution. One week after installation, one of the units came apart. The spring action that opens and closes is plastic and not very durable. Maybe not suited for heavy duty use, more for personal.

Displaying reviews 1-3
