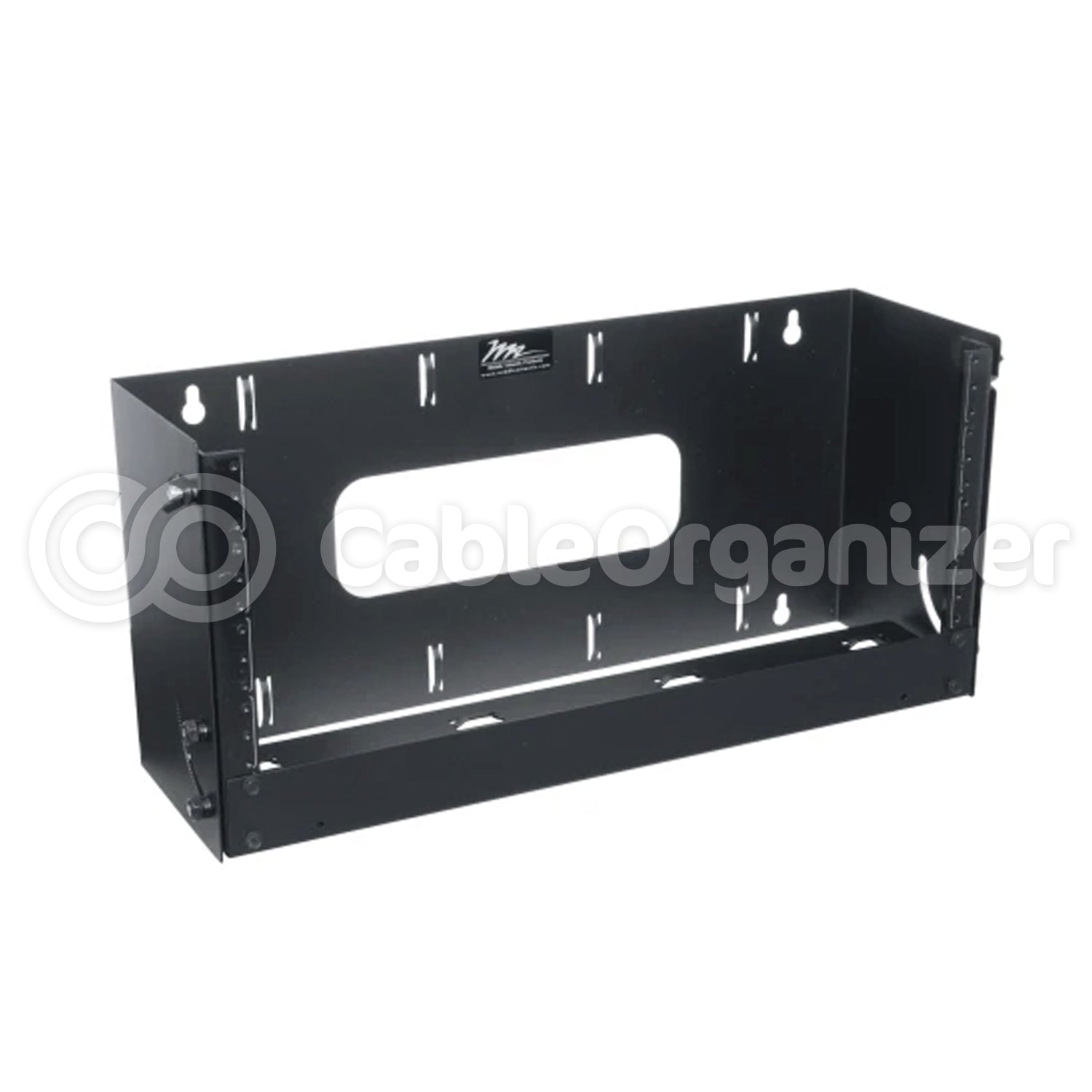

Middle Atlantic PPM Pivoting Panel Mounts

Easily Accessible Wall Mount Racks for Quick and Easy Terminations


QMA-PPM-4
Qty:

What's special about these wall-mountable hinged racks?

  • Pivoting front panel provides convenient rear access to equipment and hardware for faster installation, maintenance, and cable management.
  • Innovative "positive stop" allows the front panel to fully be open at a 90° angle, which facilitates punchdown-style terminations to reduce the amount of time it takes to install and wire each patch panel.
  • Optional solid top and front cover are available for enhanced security, to protect equipment from unwanted access or tampering.
  • Click for More Features
  •
  • RoHS CompliantGreenguard Certification

Middle Atlantic Pivoting Panel Mount Racks offer residential and commercial network installers a compact, wall mountable solution for areas where space is at a premium. These wallmount racks are available in sizes ranging from 4 RU to 8 RU, and feature a convenient hinged front panel, which opens up to a sturdy 90° angle to support punching down and easy access.

NOTE: Cable management and patch panels are NOT included

Part # U/RMS Description Height Depth Load Capacity Weight Price
QMA-PPM-4 4U Pivoting Panel Mount 9-1/4" 6" 30 lbs 10.4 lbs
Qty:
Manufacturer Direct
QMA-PPM-6 6U Pivoting Panel Mount 12-3/4" 6" 30 lbs 11.6 lbs
Qty:
Manufacturer Direct
QMA-PPM-6-12 6U Pivoting Panel Mount 12-3/4" 12" 40 lbs 19.0 lbs
Qty:
Manufacturer Direct
QMA-PPM-6-16-OB 6U Backless Pivoting Panel Mount 12-3/4" 16" 60 lbs 20.0 lbs
Qty:
Manufacturer Direct
QMA-PPM-8-12 8U Pivoting Panel Mount 16-1/4" 12" 60 lbs 20.7 lbs
Qty:
Manufacturer Direct
QMA-PPM-8-18 8U Pivoting Panel Mount 16-1/4" 18" 60 lbs 20.7 lbs
Qty:
Manufacturer Direct

Doors and top covers are available separately for retrofitting existing systems that require added security.

Optional Accessories
Part # Part Description Price
QMA-PPM-LID18 Top Cover. Fits 18" D 10.4 lbs
Qty:
Manufacturer Direct
QMA-PPM-D06 Lift Door Cover. Fits PPM 6U 6"D 11.6 lbs
Qty:
Manufacturer Direct
Note: To use door, the top cover option is required
Cable Management Options
Part # Description RMS/U Panel Width Cable Rings Fill Area Weight Quantity Price
MA-HCM-1D D-Ring Style 1 19 inch 3-1/8 sq. in. 2.1 lbs 1
Qty:
Manufacturer Direct
MA-HHCM-1 Hinged Horizontal Cable Manager 1 19 inch 1.75 inch 2.9 lbs 1
Qty:
Manufacturer Direct
  • Backless design available for easy installation over wall obstructions such as cable raceway, wire duct, and conduit.
  • Abundant cable tie-down points provides for clean and organized wire management.
  • EIA compliant rack rails for easy installation of industry-standard patch panels, cable management provisions, and hardware.
  • Strong steel construction is finished in a durable black powder coat for lasting quality and dependability.
  • 10-32 rack screws and hook/loop fasters included.
  • GREENGUARD Indoor Air Quality Certified for use in schools or other environments with children.
  • RoHS compliant
  • Proudly made in the USA Made in the USA
  •

    Part # Overall Height Useable Height Depth Back Pan Opening Height Mounting Hole Distance Minimum Wall Clearance Load Capacity Weight
    QMA-PPM-4 9.25" 7.00" / 4 RMS 6" 3.00" 7.75" 11.5" 30 lbs 10.43 lbs
    QMA-PPM-6 12.75" 10.5" / 6 RMS 6" 6.25" 11.25" 15" 30 lbs 11.59 lbs
    QMA-PPM-6-12 12.75" 10.5" / 6 RMS 12" 6.37" 6.12" 21" 40 lbs 18.95 lbs
    QMA-PPM-6-16-OB 12.75" 10.5" / 6 RMS 16" - 6.12" 25" 60 lbs 20.0 lbs
    QMA-PPM-8-12 16.25" 14.0" / 8 RMS 12" 9.87" 9.62" 24.5" 60 lbs 20.68 lbs
    QMA-PPM-8-18 16.25" 14.0" / 8 RMS 18" 9.87" 9.62" 30.5" 60 lbs 25.60 lbs



    Rack Thickness 16-gauge steel
    Rail Thickness 11-gauge steel
