VMP Equipment Rack Enclosures

Mounting solutions with a 1,000mm depth for your A/V, communication, and security needs.

VMP-EREN-27E1K

What's Special About These VMP Equipment Rack Enclosures?

Works with standard 19" racks and accessories.
Usable depth of 1000mm
Tempered glass front door
Vented to help regulate your equipment's temperature.
Load capacity of up to 1,300 lbs (excluding the Erwen-12E750)
Click for More Features

These VMP 19-inch enclosures are the perfect mounting system for all of your A/V, communication, and security needs. Keep your equipment safe with these rack enclosures that are all vented for optimal temperature. Front and rear rails are completely adjustable and the hinged back panel is removable as well. These racks are shipped to you fully assembled and can easily be adjusted by one person making things super easy!

Equipment Rack Enclosures
Part #	Rack Space	Color	Weight	Load Capacity	Depth	Price

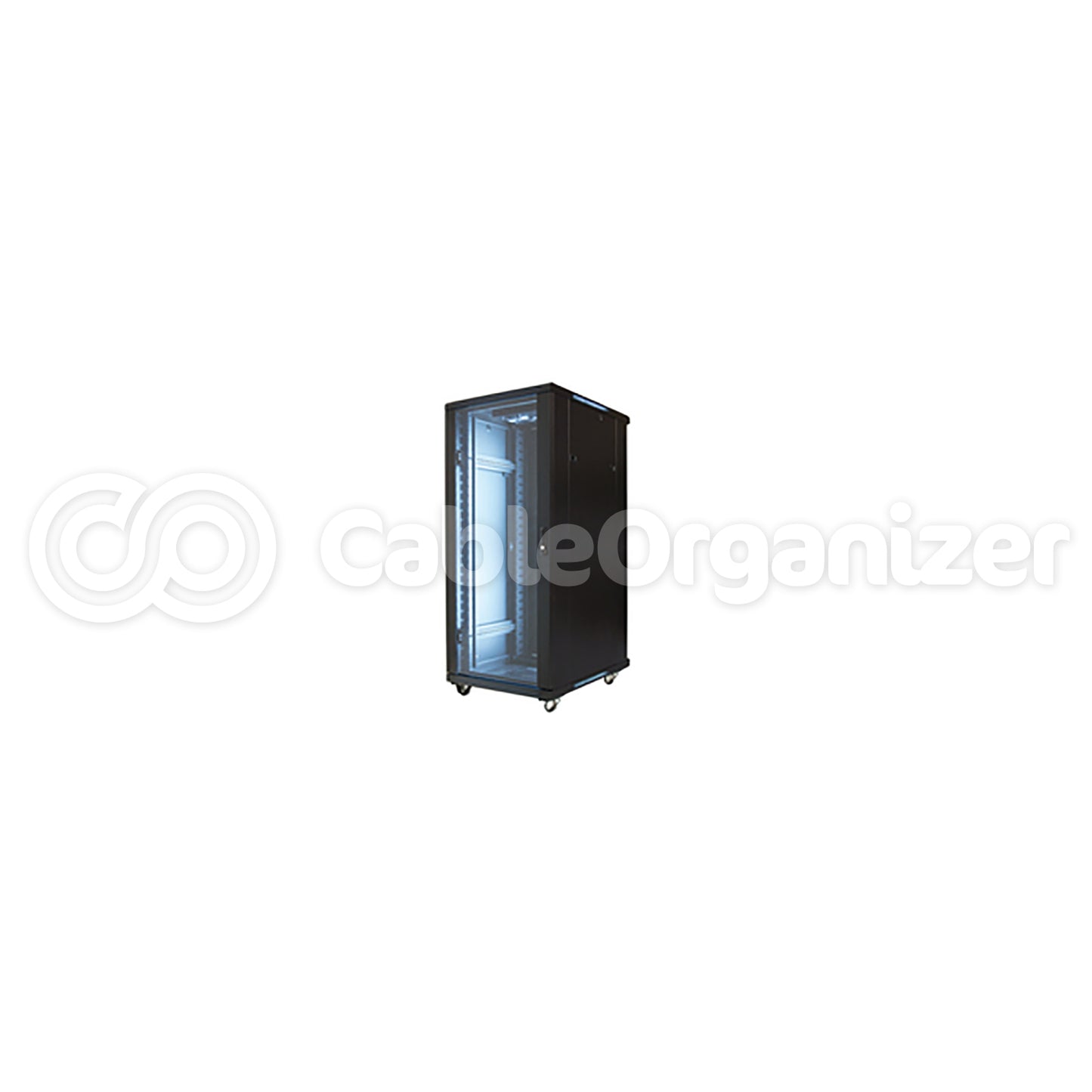

VMP-EREN-27E1K	27	Black	200lbs	1,300 lbs	1000mm	Qty: Manufacturer Direct
VMP-EREN-42E1K	42	Black	300lbs	1,300 lbs	1000mm	Qty: Manufacturer Direct

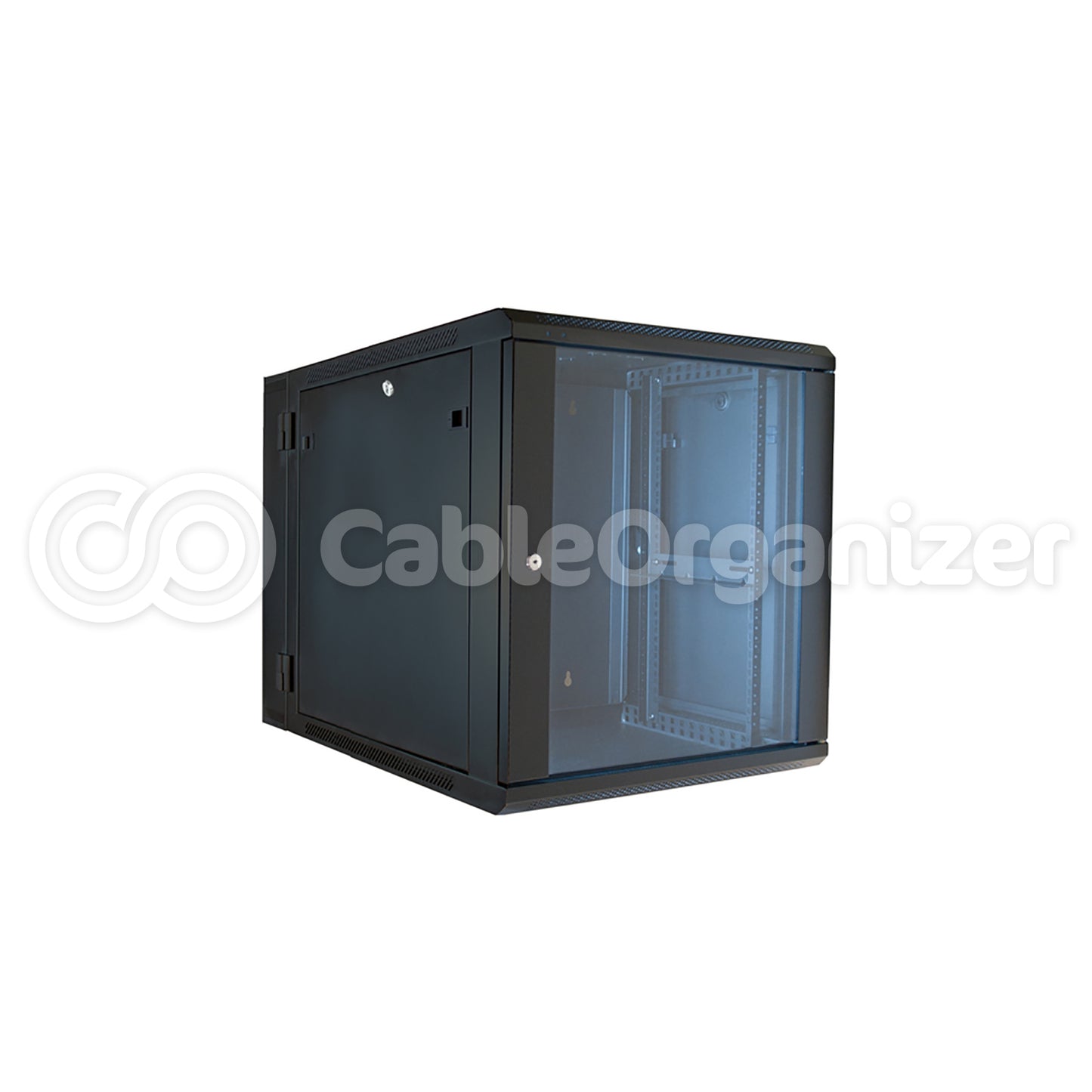

Wall Mounted Equipment Rack Enclosures
Part #	Rack Space	Color	Weight	Load Capacity	Depth	Price
VMP-ERWEN-12E750	12	Black	90lbs	120 lbs	1000mm	Qty: Manufacturer Direct

Shelves
Part #	Name	Width	Depth	Load Capacity	Price
VMP-ER-8RSA	VMP Adjustable 8-Receiver Rack Shelf	19"	12.00"	50 lbs	Qty: Manufacturer Direct
VMP-ER-S2U	VMP Solid Universal Economy Rack Shelves	19"	14.75"	50 lbs	Qty: Manufacturer Direct
VMP-ER-S2UV	VMP Vented Universal Economy Rack Shelves	19"	14.75"	50 lbs	Qty: Manufacturer Direct

Doors
Part #	Rack Space	Material	Price
VMP-ERENSD-27	27U	Steel	Qty: Manufacturer Direct
VMP-ERENPD-42	42U	Perforated	Qty: Manufacturer Direct
VMP-ERENSD-42	42U	Steel	Qty: Manufacturer Direct

Works with all standard 19" racks and accessories.

Usable depth of 1,000mm allowing for better access to your equipment.

Tempered glass front door let you see through to the numbered rack spaces.

Vented to help regulate your equipment's temperature, and has pre-installed cooling fans (4 Fan Tray).

Load capacity of up to 1,300 lbs (exluding the Erwen-12E750).

Hinged back panel is removable, with reversible hinged front and rear doors.

Heavy duty construction with rails threaded with standard 10-32 threading.

Black powder coated finish

Locking removable side panels

Equipped with casters and leveling feet.

PART #	RACK SPACE	LOAD CAPACITY	DIMENSIONS (WxDxH)		WEIGHT
PART #	RACK SPACE	LOAD CAPACITY	Product	Shipping	Product	Shipping
VMP-EREN-27E1K	27U	1,300 lbs	23.6" x 39.4" x 54.8	24.25" x 40.5" x 57.3"	210 lbs	250 lbs
VMP-EREN-42E1K	42U	1,300 lbs	23.6" x 39.4" x 81.1"	23.6" x 39.4" x 81.1"/td>	300 lbs	340 lbs
VMP-ERWEN-12E750	12U	120 lbs	24.3" x 29.63" x 25.3"	24.3" x 29.63" x 25.3	90 lbs	154 lbs
