Tripp-Lite PROTECT IT!® TLP Series 4, 6, and 7 Outlet Surge Protectors

Reliable Component Protection for the Home or Office

TL-TLP404
Qty:

What's special about these protected power strips?

  • Expands any standard North American power outlet to accommodate between 4 and 12 devices, providing much more service where needed.
  • Protects your devices from up to 3240 joules of electrical overload, enhancing personnel safety and equipment service life.
  • Optional telephone, Ethernet, and satellite protection on select models protect your communication signals.
  • Click for More Features
UL ClassifiedFCC

PROTECT IT!® Series Surge Protection Power Strips by Tripp-Lite are great for expanding the capabilities of your electrical outlets while shielding connected equipment from damage. These surge suppressors are available in 4, 5, and 6 outlet configurations depending on the needs of your application. Select models are available with RJ-11 ports to protect your phone, fax, and DSL signals.

4 Outlets
Part # Outlets Protection Cord Length Color Price
TL-TLP404 4 Standard 450 joules 4 ft. Ivory
Qty:
Manufacturer Direct
6 Outlets
Part # Outlets Protection Cord Length Color Price

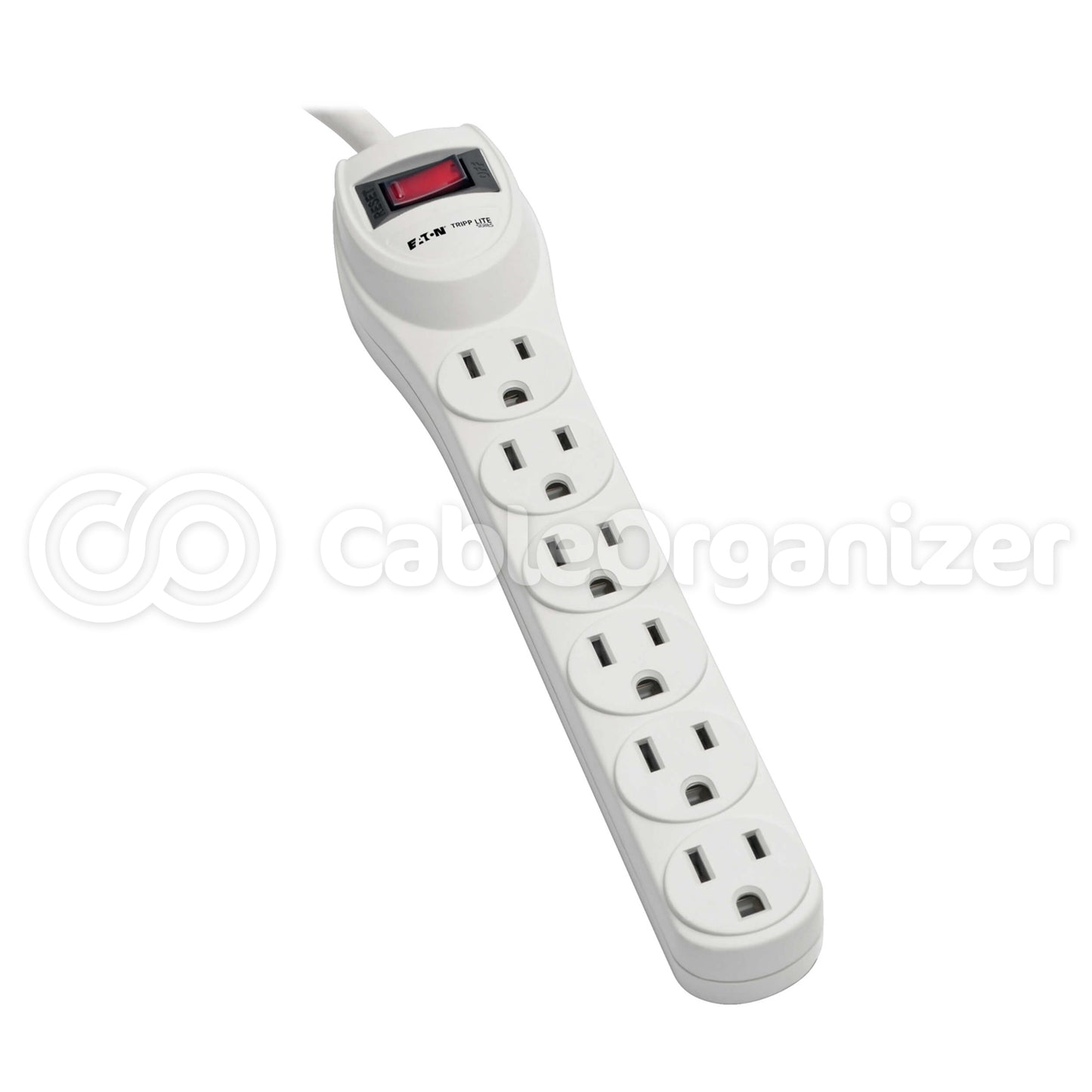

TL-TLP602 6 Standard 180 joules 2 ft. Ivory
Qty:
Quick Ship
TL-TLP604 6 Standard 790 joules 4 ft. Ivory
Qty:
Manufacturer Direct
TL-TLP604TEL 6 Standard, 1 Modem/Fax/Phone 790 joules 4 ft. Ivory
Qty:
Manufacturer Direct
TL-TLP606 6 Standard 790 joules 6 ft. Black or Ivory
Qty:
Quick Ship
TL-TLP615 6 Standard 790 joules 15 ft. Ivory
Qty:
Manufacturer Direct
7 Outlets
Part # Outlets Protection Cord Length Color Price
TL-TLP706TELC 7 Standard, 1 Modem/Fax/Phone 1440 joules 6 ft. Black
Qty:
Quick Ship
TL-TLP712 7 Standard 1080 joules 12 ft. Black or Ivory
Qty:
Manufacturer Direct
TL-TLP725 7 Standard 1080 joules 25 ft Ivory
Qty:
Quick Ship
TL-TLP76RBTEL 7 Standard, 1/7 is angled for large adapters 1080 joules 6 ft. Black
Qty:
Quick Ship
  • Certain models have a number of outlets spaced for large adapters, eliminating the need for liberators or extension cords.
  • Available in black or ivory to complement your décor.
  • Ideal for bringing power to away-from-the-wall location in your home, office, or commercial facility.
  • Connected devices are insured up to $50,000 to protect your investment.
PROPERTY VALUE
Voltage 120V AC
Plug Type NEMA 5-15P
Frequency Compatibility 50 / 60 Hz
Circuit Breaker 15A
EMI / RFI filtering Up to 20 dB
Clamping Voltage 150V
UL 1449 Let Through TL-TLP404 thru TL-TLP604TEL: 500V
TL-TLP606 thru TL-TLP76RBTEL: 400V
Cord Gauge 14 AWG
Cord Type SJT
Industry Standards UL 1449
UL 1363
UL 497A
FCC Part 68
Warranty Lifetime Lifetime Warranty



PART #
Click link to view spec pdf
MAX SURGE AMPS INSURANCE AMOUNT SHIPPING WEIGHT SHIPPING
DIMENSIONS (inches)
TL-TLP404 22500 $1,000.00 1.20 lbs (0.54 kg) 7.72 x 3.74 x 1.02
TL-TLP602 12000 $2,500.00 0.64 lbs (0.29 kg) 1.50 x 3.74 x 11.02
TL-TLP604 36000 $20,000.00 0.86 lbs (0.39 kg) 8 x 4 x 1.30
TL-TLP604TEL 35500 $20,000.00 0.91 lbs (0.41 kg) 13.2 x 5.2 x 1.8
TL-TLP606 45000 $20,000.00 1.20 lbs (0.54 kg) 10.8 x 1.85 x 1.23
TL-TLP 615 35500 $20,000.00 1.77 lbs (0.80 kg) 13.2 x 5.8 x 1.8
TL-TLP706TELC 19500 $50,000.00 1.50 lbs (0.68 kg) 13.78 x 4.63 x 1.77
TL-TLP712 72000 $25,000.00 1.92 lbs (0.87 kg) 13.78 x 4.92 x 2.36
TL-TLP725 72000 $25,000.00 3.20 lbs (1.45 kg) 13.78 x 6.69 x 2.48
TL-TLP76RBTEL 36000 $50,000.00 1.50 lbs (0.68 kg) 14.05 x 3.26 x 1.37
