Diamondback® Multiple Channel Module Cable Hose Bridge Systems

Ensure Vehicle Access While Maintaining the Integrity of Your Hoses and Pipes


CP-UHB-3035T
Qty:

What's special about this modular bridge system?

  • Create a customized bridge system for single or multiple hoses, pipes, or ducts, allowing heavy vehicles to safely drive over
  • With tunnels from 3" (76mm) to 7" (178mm); even the largest conduit can be protected from crushing
  • Manufactured of Polyurethane to ensure maximum load-bearing capability
  • Lightweight and easy to set up, disassemble, and transport, these heavy duty cord covers are the perfect addition to construction sites, fire departments or municipalities
  • Click for More Features

Provide safe passage for heavy, rubber-wheeled vehicles with the Checkers® Diamondback® Cable and Hose Bridge System. Available from 3" to 7" diameters to protect cables and hoses at concerts, fairs or sporting events. The lightweight, interlocking design is easy to set up, breakdown, store and transport.

3.5" Bridge System (Tunnel Diameter 3.5")
Part # Description Max. Load Per Tire 75&Deg; F (23.9&Deg; C) Weight Price
CP-UHB-3035T Tunnel Only for up to 3.5 inch Lines 19,800 lbs (8,981 kg) 17 lbs. (7.7 kg)
Qty:
Manufacturer Direct
CP-UHB-3035R Ramps Only (pair) for 3.5 inch Tunnel 19,800 lbs (8,981 kg) 22 lbs. (10.0 kg)
Qty:
Manufacturer Direct
CP-UHB-3035TC Tunnel Connector Only for 3.5 inch Tunnel 19,800 lbs (8,981 kg) 16 lbs. (7.3 kg)
Qty:
Manufacturer Direct
4.5" Bridge System (Tunnel Diameter 4.5")
Part # Description Max. Load Per Tire 75&Deg; F (23.9&Deg; C) Weight Price
CP-UHB-4045T Tunnel Only for up to 4.5 inch Lines 19,300 lbs (8,754 kg) 21 lbs. (9.5 kg)
Qty:
Quick Ship
CP-UHB-4045R Ramps Only (pair) for 4.5 inch Tunnel 19,300 lbs (8,754 kg) 30 lbs. (13.6 kg)
Qty:
Manufacturer Direct
CP-UHB-4045TC Tunnel Connector Only for 4.5 inch Tunnel 19,300 lbs (8,754 kg) 21 lbs. (9.5 kg)
Qty:
Manufacturer Direct
6.5" Bridge System (Tunnel Diameter 7.0")
Part # Description Max. Load Per Tire 75&Deg; F (23.9&Deg; C) Weight Price
CP-UHB-5060T Tunnel Only for up to 6.5 inch Lines 17,100 lbs (7,757 kg) 32 lbs. (14.5 kg)
Qty:
Manufacturer Direct
CP-UHB-5060R Ramps Only (pair) for 6.5 inch Tunnel 17,100 lbs (7,757 kg) 58 lbs. (26.3 kg)
Qty:
Manufacturer Direct
CP-UHB-5060TC Tunnel Connector Only for 6.5 inch Tunnel 17,100 lbs (7,757 kg) 26 lbs. (11.8 kg)
Qty:
Manufacturer Direct
  • Abrasion, impact and weather resistant, to provide years of use and save money on replacements
  • Interlocking design prevents separation, even under extreme weight
  • Diamond plate tread surface for increased traction, even in wet conditions
  • Bright yellow color makes the bridge easy to see
  •

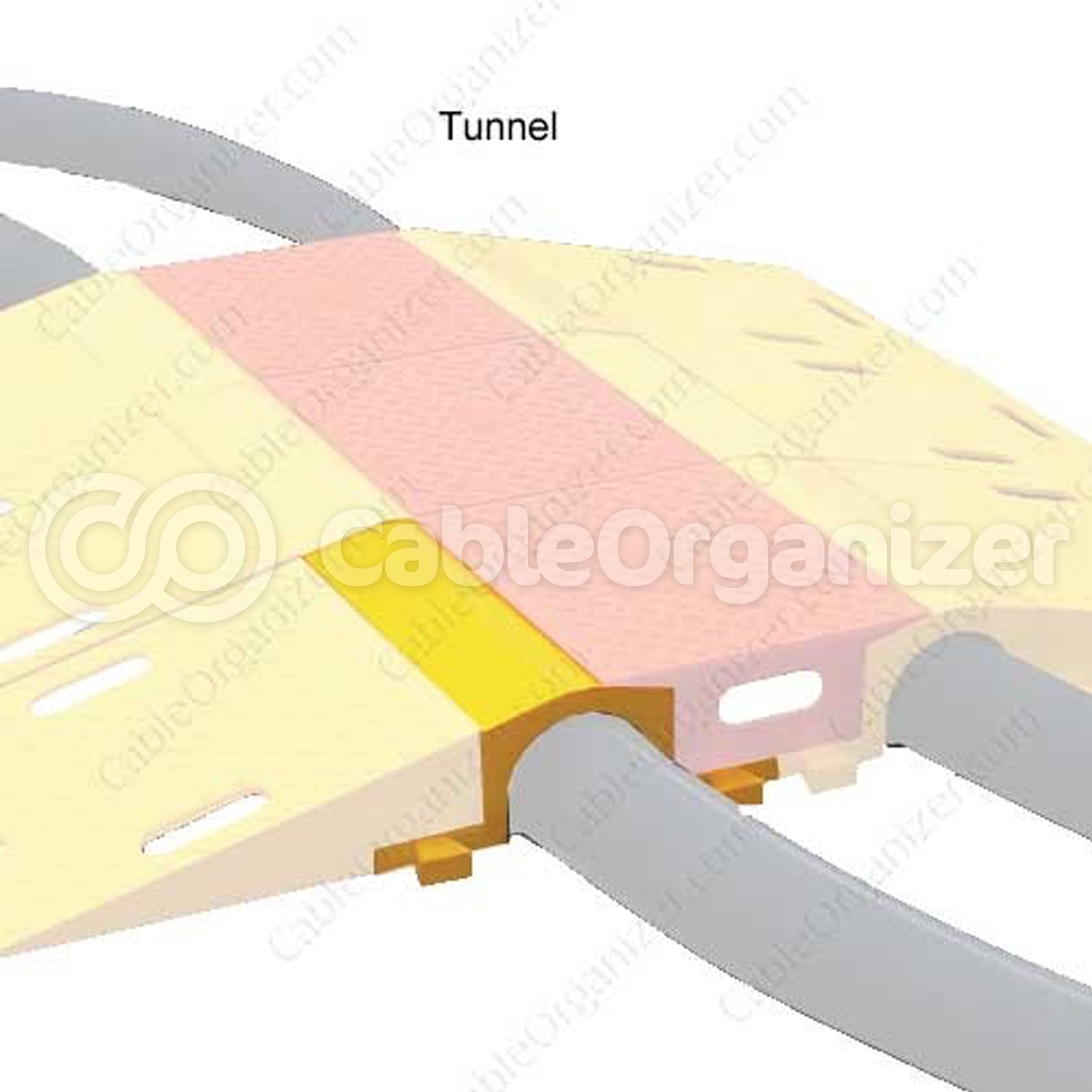

    Multiple Hose Bridge Drawing

    Part # Description Dimensions Color
    A - Length B - Width C - Height

    CP-UHB-3035T Tunnel Only for up to 3.5 inch Lines 6.5" (166 mm)  16" (406 mm) 4.63" (118 mm)  Yellow
    CP-UHB-3035R Ramps Only (pair) for 3.5 inch Tunnel 16 in (406 mm) 16" (406 mm) 4.63" (118 mm)  Yellow
    CP-UHB-3035TC Tunnel Connector Only for 3.5 inch Tunnel 7.88" (201 mm) 16" (406 mm) 4.63" (118 mm)  Orange

    CP-UHB-4045T Tunnel Only for up to 4.5 inch Lines 7.75" (198 mm)  16" (406 mm) 5.5" (118 mm)  Yellow
    CP-UHB-4045R Ramps Only (pair) for 4.5 inch Tunnel 18.25" (466 mm) 16" (406 mm) 5.5" (118 mm)  Yellow
    CP-UHB-4045TC Tunnel Connector Only for 4.5 inch Tunnel 7.88" (201 mm) 16" (406 mm) 5.5" (118 mm)  Orange

    CP-UHB-5060T Tunnel Only for up to 6.5 inch Lines 9.13" (233 mm)  16" (406 mm) 8.13" (208 mm) Yellow
    CP-UHB-5060R Ramps Only (pair) for 6.5 inch Tunnel 25.5" (651 mm)  16" (406 mm) 8.13" (208 mm) Yellow
    CP-UHB-5060TC Tunnel Connector Only for 6.5 inch Tunnel 7.88" (201 mm)  16" (406 mm) 8.13" (208 mm) Orange
