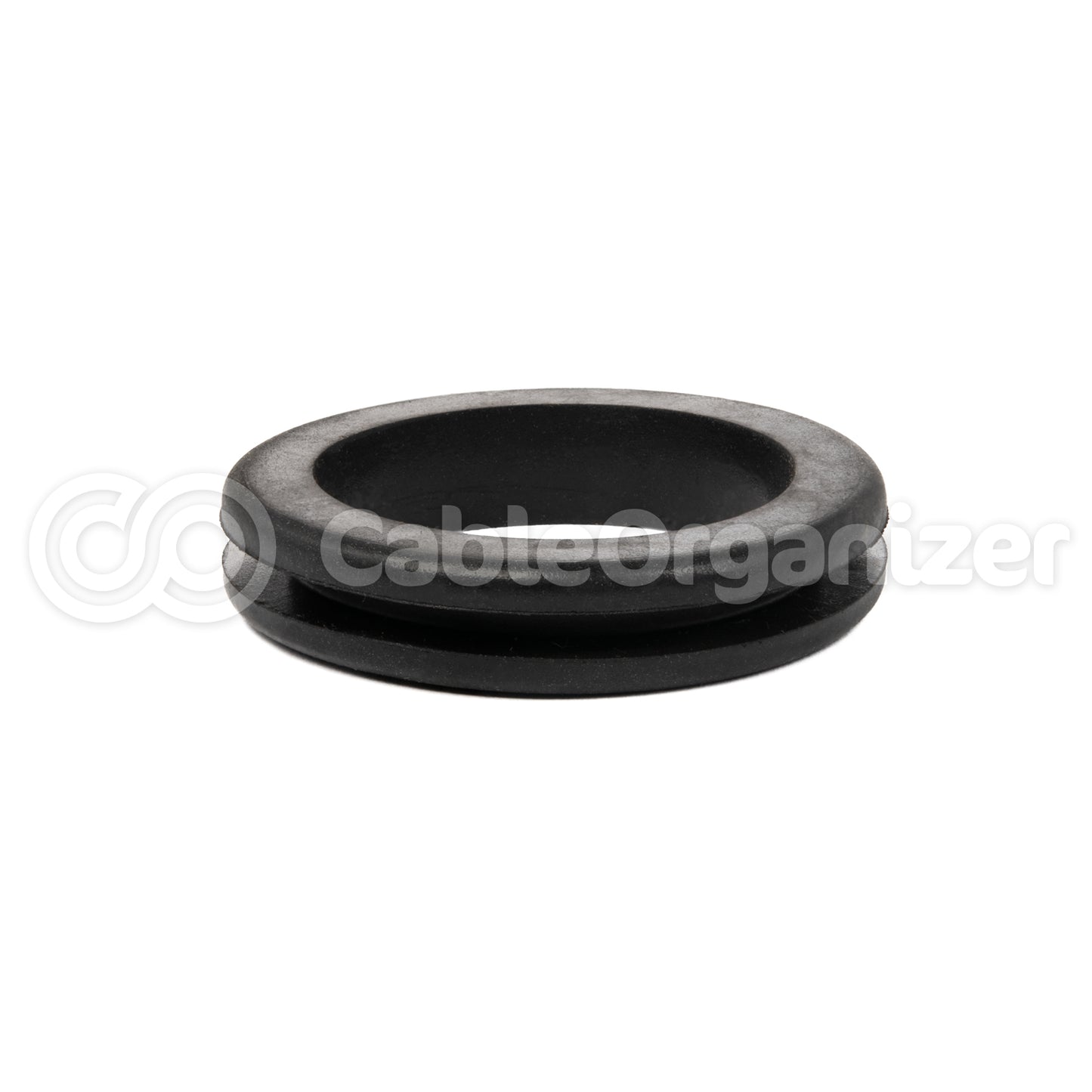

Large Rubber Grommets

Adds Clean Professional Look


O-RPD-G3291
Qty:

What's special about these large rubber grommets?

  • Abrasion and tear resistant for most of your manufacturing, machining, and automotive installations.
  • Neoprene has good resistance to outdoor conditions and electricity, making it great for automotive projects.
  • Eliminates sharp edges to protect wires, cords, etc, from abrasion.
  • Available in Styrene Butadiene (SBR), Neoprene (Chloroprene), and Natural Rubber (Isoprene).
  • Click for More Features

Rubber grommets and bushings are used to protect or cover through holes with rough edges. The installation of large diameter rubber grommets can eliminate sharp edges to protect wires, cables, or hoses from damage. Electrical wires, cord, rope, lacings, or other soft material passing through a hole with rough edges can cause abrasion and failure. The rubber grommet can shield the wire or other material from any damage. The rubber grommet also adds a neat, clean look to any professional wire or cable installation.

Grommet Dimension Graphic

SBR (Styrene Butadiene)
Part # IMG ID GW GD OD THK Weight Price
O-RPD-G3291 2"
[50,80mm]
19/100"
[4,28mm]
2-1/5"
[55,88mm]
2-3/4"
[69,85mm]
9/16"
[14,28mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
O-RPD-G3318 2"
[50,80mm]
1/4"
[6,35mm]
2-1/2"
[63,50mm]
3"
[76,20mm]
9/16"
[14,28mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
O-RPD-G3020 2"
[50,80mm]
1/32"
[0,79mm]
2-1/2"
[63,50mm]
3"
[76,20mm]
9/32"
[7,14mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
O-RPD-G3144 2-1/8"
[53,97mm]
1/8"
[0,12mm]
2-1/2"
[63,50mm]
2-7/8"
[73,02mm]
7/16"
[11,11mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
O-RPD-G3145 2-1/8"
[53,97mm]
1/16"
[1,58mm]
2-1/2"
[63,50mm]
2-7/8"
[73,02mm]
7/16"
[11,11mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
O-RPD-G3286 2-1/2"
[63,50mm]
1/4"
[6,35mm]
2-3/4"
[69,85mm]
3-1/8"
[79,37mm]
1/2"
[12,70mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
O-RPD-G3327 2-3/4"
[69,85mm]
5/64"
[1,98mm]
3"
[76,20mm]
3-5/8"
[92,07mm]
5/16"
[7,93mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
Neoprene (Chloroprene)
Part # IMG ID GW GD OD THK Weight Price
O-RPD-G3311 2"
[50,80mm]
1/8"
[0,12mm]
2-1/4"
[57,15mm]
2-5/8"
[66,67mm]
3/8"
[9,52mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
O-RPD-G3370 2-3/8"
[60,32mm]
1/8"
[0,12mm]
2-3/4"
[69,85mm]
3-3/8"
[85,72mm]
1/2"
[12,70mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
Isoprene
Part # IMG ID GW GD OD THK Weight Price
O-RPD-G3380 2-1/2"
[63,50mm]
1/16"
[1,58mm]
2-3/4"
[69,85mm]
3"
[76,20mm]
5/16"
[7,93mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
O-RPD-G8056 2-5/8"
[66,67mm]
3/32"
[2,38mm]
2-7/8"
[73,02mm]
4"
[101,60mm]
13/32"
[10,31mm]
0.5 lb
[0,226 kg]
Qty:
Quick Ship
  • Available in Black
  • ISO 9001:2000 Quality distribution
  • Available in SBR, Neoprene, or Isoprene rubber
  • Click to view the material specification guide pdf
  • Material Specifications

  • General Material Specification Guide pdf
  • SBR (Styrene Butadiene) pdf
  • Neoprene (Chloroprene) pdf
  • Isoprene pdf
  •

    Related Articles





    How-To Corner





    Request A Quote

    Did you know that we can give you a quote for most of our products, including shipping?

    You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)

    Questions & Answers

    Question:

    Material Flexibility - Is the styrene butadiene fully flexible to maneuver into the opening to be protected?

    Asked by Anonymous user on 03.30 PM Wednesday, 18 June, 2014

    Answer:
    • - Thank you for your question. The Styrene Butadiene is flexible enough to maneuver around openings.

      Fernando M. on 09.44 AM Thursday, 19 June, 2014
