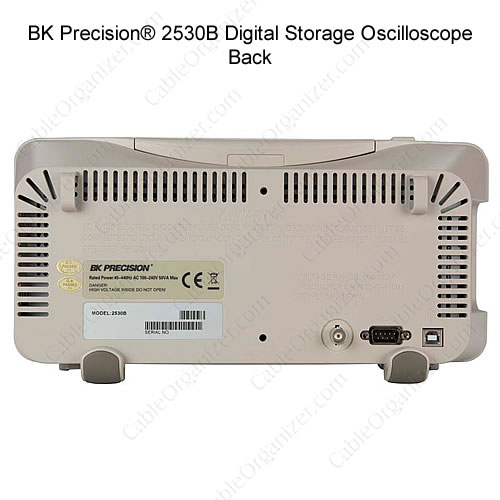

  • BK Precision 2530B back side - icon
  • BK-CC500
  • BK-PR-55
  • Deluxe Probe PR-37AG - icon
  • BK-CC540
    • |||videoviewer>player|||

BK Precision 2530B Digital Storage Oscilloscope

An Affordable Digital Oscilloscope with a Competitive Feature Package

BK-2530B
Qty:

What's special about this digital O-Scope?

  • Measures the varying voltages of electronic devices across 32 parameters, displaying the frequency in waveform for a more detailed analysis than a digital multimeter.
  • USB/RS-232 connectivity with included EasyScope software allows remote control and quick data logging via PC.
  • Large 5.7" (14.48 cm), 64K color TFT screen displays bright, highly readable text results and crisp waveforms.
  • Click for More Features

The BK Precision® 2530B Digital O-scope delivers a much needed service to the electronics service industry. Offering switchable manual/auto ranging, 32 parameter testing, 32,000 point frequency waves and many other features found only in much more expensive instruments, this unit is perfect for students, hobbyists, and professionals alike.

Please Note: This product ships in 2 weeks

Part # Description Bandwidth Dimensions (L X W X D) Weight Price
BK-2530B Model 2530B Digital Oscilloscope - Includes: 10:1 Probe Set, EasyScope Software, USB Cable, Power Cord 25 MHz 12" x 6.3" x 5.2" (305 mmx 160 mm x 133 mm) 5 lbs. (2.3 kg)
Qty:
Quick Ship

Accessories

Adapter Kits
Part # Description Weight Price
BK-CC500 BNC/N Adapter Kit:
Contains the most commonly used BNC and N-type adapters for testing		 0.5 lbs (.23 kg)
Qty:
BK-CC540 Oscilloscope Adapter Kit:
Contains a range of 50Ω BNC/N connectors for oscilloscope test interconnections (includes Spring Hook, Replacement Tip and BNC Adapter)		 0.5 lbs (.23 kg)
Qty:
Probes
Part # Description Weight Price
BK-PR-55 High Voltage Probe:
Used when measuring voltages above the specs of the general purpose probe
  • X1000 Attenuation
  • 100MΩs / 1pF
  • 0 Mhz Bandwidth
  • 80" (2m) Cable Length
 2 lbs (0.9 kg)
Qty:
  • User-defined pass/fail limits for testing speeds up high-production testing and other less detailed maintenance operations.
  • Switchable manual or automatic setup, easy to read results, and simple, analog-style controls make this an excellent unit for educational use.
  • The risk of theft can be reduced by attaching the unit to your location using the integrated rear security loops and a cable lock.
  • Built-in help function provides a more “hands-on” approach to learning the instrument than a print manual alone, accommodating users of all skill levels and learning types.
  • Long 32,000 point waveform memory storage (single channel operation) provides a superior view of voltage changes over time for improved data usability.

    •

    PROPERTY VALUE
    Performance Characteristics
    Bandwidth 25 MHz
    Real Time Sampling Rate Single Channel: 500 MSa/s
    2 Channels interleaved: 250 MSa/s (for timebase faster than 250 ns/div)
    Channels 2
    Rise Time <14 ns
    Record Length 32,000 points when time base is 50 ns or 25 ns at maximum data depth (16,000 points for 50 s - 100 ns time base), 16,000 points for dual channel operation
    Vertical Resolution 8 bit
    Vertical Sensitivity 2 mV/div -5 V/div(1-2-5 order)
    DC Gain Accuracy <±3.0%: 10 mV/div to 10 V/div in Fixed Gain Ranges
    <±4.0%: 2 mV/div ,5 mV/div and Variable Gain Ranges
    Maximum Input Voltage 400 V (DC+AC pk-pk, 1 MΩ input impedance, X10), CAT I
    Position Range 2 mV–100 mV: ±2 V
    102 mV - 5 V: ±40 V
    Horizontal Scan Range 2.5 ns/DIV - 50 s/DIV
    Scan mode: 100 ms/DIV - 50 s/DIV (1 - 2.5 - 5 sequence)
    Timebase Accuracy ±100 ppm measured over 1ms interval
    Input Coupling AC, DC, GND
    Input Impedance 1 MΩ±2% || 16 pF±3 pF
    Vertical and Horizontal Zoom Vertically or horizontally expand or compress a live or stopped waveform
    I/O Interface USB device port on front panel supports USB flash drives. USB host port for connection to PC or Printer. RS-232 port for connection to PC.
    Acquisition Modes
    Sample Display sample data only
    Peak Detect Capture the maximum and minimum values of a signal
    Average Waveform averaged, selectable from 4, 16, 32, 64, 128, 256
    Scan Mode For time base settings 0.1 s/div - 50 s/div
    Trigger System
    Trigger Types Edge, Pulse Width, Video*, Slope, Alternating
    Trigger Modes Auto, Normal, Single
    Trigger Coupling AC, DC, LF reject, HF reject
    Trigger Source CH1, CH2, EXT, EXT/5, AC Line
    Pulse Width Trigger Trigger Modes: (>,<,=) Positive Pulse Width, (>,<,=) Negative Pulse Width
    Slope Trigger (>,<,=) Positive slope, (>,<,=) Negative slope
    Time: 20 ns -10 s
    *Support signal Formats:
    Trigger condition:    		 PAL/SECAM, NTSC
    odd field, even field, all lines, or line number
    Hardware Frequency Counter
    Reading Resolution 6 Bytes
    Accuracy ±0.01%
    Range DC Couple, 10 Hz to 25 MHz
    Signal Types All trigger signals (except pulse width trigger and video trigger)
    Waveform Math and Measure
    Math operation Add, Subtract, Multiply, Divide, FFT
    FFT Window mode: Hanning, Hamming, Blackman, Rectangular
    Sampling points: 1024
    Measure Amplitude, Average, Base, Burst Width, Cyclic RMS, + Duty Cycle, - Duty Cycle, Fall Time, Frequency, Max, Mean, Min, Rise Overshoot, Fall Overshoot, Rise Preshoot, Fall Preshoot, Peak-Peak, Period, Phase, Rise Time, RMS, Top, + Width, - Width, plus 8 advanced parameters for edge to edge timing measurements
    Display System
    Display 5.7 in. Color TFT , 320 x 240 resolution, 64K color
    Display Contrast (Typical state) 150:1
    Backlight Intensity (Typical state) 300 cd/m2
    Display Area 8 x 12 div
    Display Mode Dots, Vector
    Persistence Off, 1 sec, 2 sec, 5 sec, Infinite
    Menu Display Timer 2 sec, 5 sec, 10 sec, 20 sec, Infinite
    Screen-Saver Off, 1 min, 2 min, 5 min, 10 min, 15 min, 30 min,
    1 hour, 2 hour, 5 hour
    Waveform interpolation Sin(x)/x, Linear
    Display Color Mode Normal , Invert
    Power Requirements 100-240 VAC, CAT II, 50 VAC max, 45 Hz to 440 Hz
    Environment
    Temperature Operating: 50° F to 104 °F (10 °C to 40 °C)
    Not operating: -4 °F to 140 °F (-20 °C to 60 °C)
    Humidity Operating: 85% RH, 104 °F (40 °C)
    Not operating: 85% RH, 149 °F (65 °C)
    Altitude Operating: 9,842 ft (3,000 m)
    Not operating: 50,085 ft (15,266 m)
    General
    Dimension (WxHxD) 12" x 6.3" x 5.2" (305 mmx 160 mm x 133 mm)
    Weight 5 lbs. (2.3 kg)

    Included accessories: User Manual, 10:1 Probe set (2 pieces), Power cord , USB interface cable, EasyScope Software Installation disk
