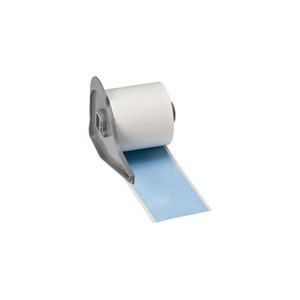

Brady BMP71 Indoor/Outdoor Vinyl Labels

For Use Inside and Out


BC-M71C-500-595
Qty:

What's special about these vinyl labels?

  • Constructed of Brady's B-580 vinyl material for both inside and outside use, allowing for greater versatility.
  • Backed with a pressure sensitive acrylic adhesive for permanent adhesion.
  • Withstands environmental extremes as well as grease, oil, and other industrial chemicals for ultimate durability.
  • Click for More Features
  •
  • OSHA

Brady's indoor/outdoor vinyl labels are ideal for labeling just about anything with the BMP71 Label Printer. These durable vinyl labels feature a permanent adhesive that holds to most clean, dry surfaces; both rough and smooth.

Part # Width Length Colors Price
BC-M71C-500-595 0.5" 50 ft Black, Blue, Brown, Clear, Gold, Gray, Green, Light Blue, Ochre, Orange, Pink, Purple, Red, Sky Blue, Tan, White, Yellow
Qty:
BC-M71C-1000-595 1" 50 ft Black, Blue, Brown, Clear, Gold, Gray, Green, Light Blue, Ochre, Orange, Pink, Purple, Red, Sky Blue, Tan, White, Yellow
Qty:
BC-M71C-2000-595 2" 50 ft Black, Blue, Brown, Clear, Gold, Gray, Green, Light Blue, Ochre, Orange, Pink, Purple, Red, Sky Blue, Tan, White, Yellow
Qty:



  • Flexible vinyl material easily adheres to curved and textured labeling surfaces.
  • Available in 17 vivid colors for creating color coded labeling (Black, Blue, Brown, Clear, Green, Gold, Gray, Light Blue, Ochre, Orange, Pink, Purple, Red, Sky Blue, Tan, White, Yellow).
  • Color array is compliant with OSHA color coding requirements.
  • On average lasts up to 5 years in outdoor conditions so that relabeling doesn't need to be re-done as often.
  • Available in 1/2", 1", and 2" widths for a variety of labeling applications.
  • 50ft length provides you with more than enough labels to complete most jobs, large or small.
  • Labels made of UV resistant materials to prevent fading in sunlight.
  • Withstand temperatures from 180°F to -40° F (82°C to -40°C) for use in extreme weather conditions.
  • Ideal for use on:
    1. Pipes Marking
    2. Patch Panels
    3. Surface Raceway
    4. Cables
    5. Racks



    Use Brady-580 is used for Pipemarker, Arrow Tape, Warehouse Marking, Warning Panels and Safety Signs.
    Special Properties Permanent cold temperature applicable pressure sensitive acrylic
    Substrate Type Vinyl film
    Standard Material Colors White, red, yellow, green, blue, orange, black, gray, brown, gold, purple, clear.
    Standard Legend Colors Black, white, red, green, blue, and magenta
    Thickness (PSTC-133) Total: 0.042 in. (0.108mm)
    Adhesive Properties Adhesion to Steel (PSTC-101)
    15 Minute Dwell (Avg.) -- 70 oz/in. (76.5 N/100mm)
    Ultimate Dwell (72 Hrs.) (Avg.) --70 oz/in. (76.5 N/100mm)
    Tack (ASTM D 2979) (Avg.) -- 800 g (8 N)
    Abrasion Resistance (Method 5306 of US Federal Test Method Std. No. 191A) CS-10 wheels, 250 g wts.
    The printed legend withstands up to 100 cycles.
    Gloss (ASTM D 523) 60° - 40 Gardner Units minimum
    Minimum Application Temperature 0°F (-18°C)
    Service Temperature -40°F to 180°F (-40°C to 82°C)
    Average Outdoor Durability 3-5 years (Average expected outdoor life of product will depend on user definition of failure, climatic conditions, mounting techniques and material color.)  Ribbon and material UV resistance does not represent ribbon wear.  A polyester overlaminate is recommended for harsh environments - long term exposure to wind and rain.
    Shelf Life 1 year when stored at 70°F (21°C) and 40% to 50% R.H.



    REAGENT 7 DAY IMMERSION DIP TEST RUB TEST
    30%Sulfuric Acid NE NE NE
    10% Sulfuric Acid NE NE NE
    30% HCI NE NE NE
    10% HCI NE NE NE
    50% NaOH NE NE NE
    10% NaOH F F NE
    Methyl Ethyl Ketone F F F
    Acetone F F F
    1,1,1-Trichloroethane F F F
    Methanol NE NE NE
    IPA (Isopropanol) F NE NE
    ASTM #3 Oil NE NE NE
    SAE 20 Oil NE NE NE
    Alconox® NE NE NE
    Toluene F F F
    Mineral Spirits F NE NE
    Glacial Acetic Acid F F F
    5% Acetic Acid NE NE NE
    Diesel Fuel F NE NE
    Heptane F NE NE
    Cellosolve Acetate F F F
    Conc. Ammonia NE NE NE
    10% Ammonia NE NE NE
    Turpentine F F F
    Kerosene F NE NE
    Water NE NE NE
    Gasoline F F F



    NE = No Effect
    NT = Not Tested
    F = Failed (affected Sample)

    7 Day Immersion: Immersed in reagent for 7 days.
    Dip Test: Five 10 minute dips in reagent with 30 minute recovery.
    Rub Test: Rubbed sample for 1 minute with swab soaked in reagent.
