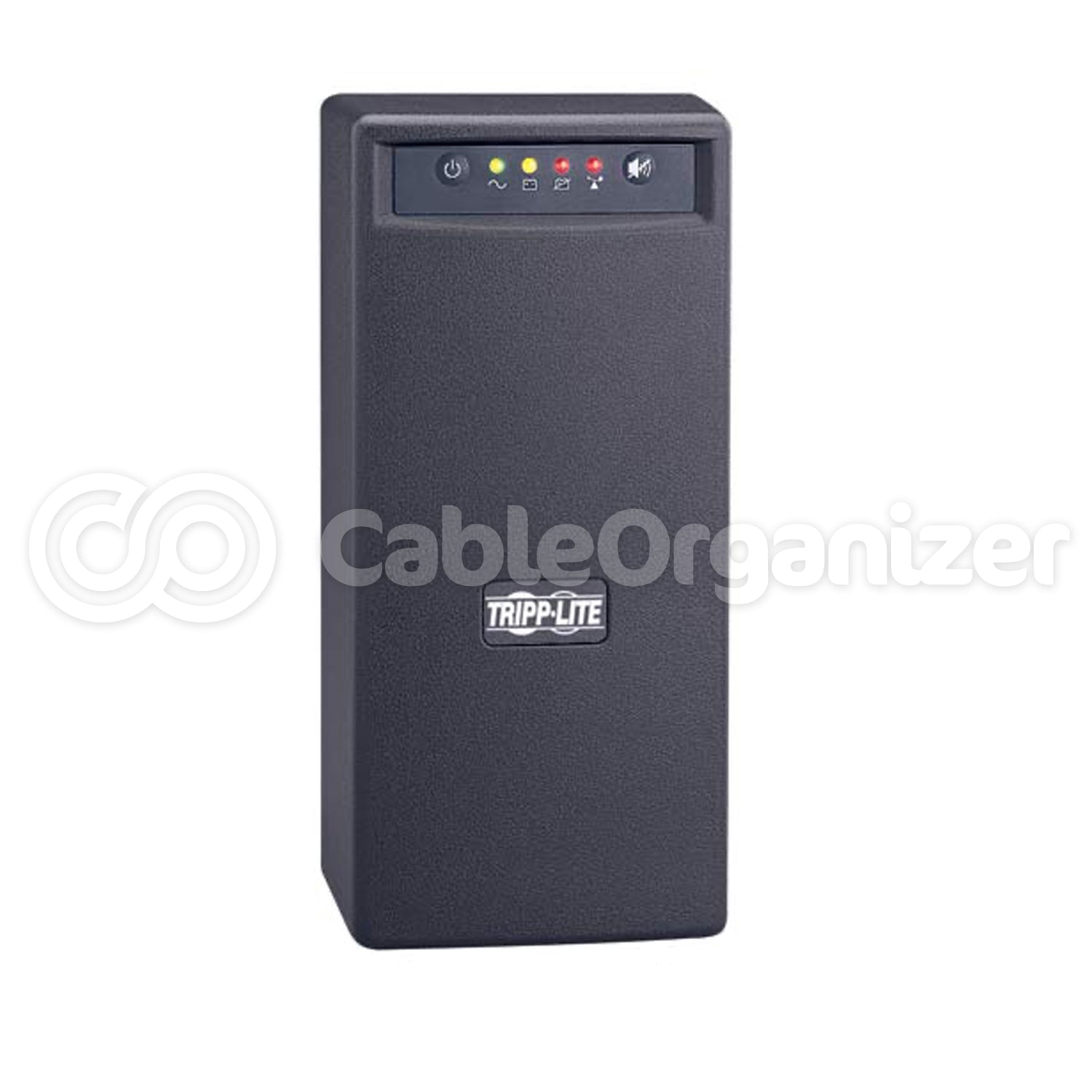

Tripp Lite Smart USB UPS Systems

Voltage Regulation, Surge Suppression and Battery Support for Personal Computers and Internet Equipment


TL-SMART750USB
Qty:

What's special about these UPS system?

  • Ensures consistent battery power will be there when you need it, to kep computers operational through brief blackouts and give you sufficient time to safely shut down during longer ones.
  • Maintains 120V nominal output during brownout conditions, so you can continue working and ensure no data loss.
  • Specifically designed for entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems.
  • Click for More Features
  •
  • ULUL ClassifiedFCC

Tripp Lite Smart USB UPS Systems are line interactive and offer voltage regulation, battery support, plus complete AC and dialup/DSL modem line surge suppression. These UPS systems are ideal for protection against all power issues such as power outages, brownouts, and more.

Part # Output Va Network Monitoring Port Dataline Suppression Dimensions Weight Price
TL-SMART750USB 750 USB Tel/DSL/Ethernet 10.75" H x 5.25" W x 7.5" D 17.4 lbs
Qty:
Manufacturer Direct
  • Perfect for your sensitive electronic equipment especially where brownouts occur frequently.
  • Basic Automatic Voltage Regulation (AVR) technology assures that your system will not be affected by surges or lulls in power and maintains 120V nominal during brownout conditions.
  • USB port and free PowerAlert software provided
  • Tel/DSL/Ethernet line surge protection options.
  • Protect your computer application from downtime, damage and data loss due to power problems that may occur as a result of brownouts, blackouts, surges and line noise.
  • Battery-supported and surge-protected receptacles (for computers and monitors) are part of the innovative design.
  • All models include receptacles that provide reliable battery support for computers and monitors during a blackout, as well as complete surge suppression and line noise filtering.
  • Compatible with 120V/60Hz applications for USA, Canada, Mexico and more.
  • 2 year manufacturer's warranty / $200,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)
  • Input: NEMA 5-15P (120V 15A) / Output: 6 NEMA 5-15R (120V) Includes 3 battery supported outlets, plus 3 additional surge suppression-only outlets, 6 foot AC line cord
  • Attractive all-black tower casing
  • Supports battery replacement via built-in access panel
  • Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
  • Built-in RJ11 phone suppression jacks protect modem, fax machine or another peripheral with a dialup or DSL line phone connection
  • Applications:
  • Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common.
  •

    Model SMART550USB

  • Supports a max load of 550VA/300W for 4 min. and a half load of 275VA/150W for 15 min.
  • Package Includes:
  • SMART550USB UPS System
  • USB and Telephone interconnection cables
  • Instruction manual with warranty information
  •

    Model SMART550USBWD Smart WatchDog UPS System

  • Supports a max load of 550VA/300 watts for 4 minutes, a half load of 275VA/150 watts for 15 minutes, and CPUs for up to 30 minutes during power failures.
  • Includes Tripp Lite's WatchDog Service Monitoring/Reboot Software as well as PowerAlert, Tripp Lite's Network Power Management Software that automatically reboots locked-up or poorly performing system service applications.
  • Package Includes:
  • SMART550USBWD UPS System
  • USB and telephone interconnection cables
  • Tripp Lite WatchDog and PowerAlert Software on CD-ROM
  • Instruction manual with warranty information
  •

    Model SMART750USB Smart USB UPS System

  • Supports a max load of 750VA/450 watts for 3 minutes, a half load of 375VA/225 watts for 11 minutes and entry-level PC systems for up to 45 minutes during power failures
  • USB port enables unattended shutdown without data loss during extended power failures; includes USB cable.
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again.
  • Package Includes:
  • SMART750USB Standby UPS System
  • USB and telephone interconnection cables
  • Instruction manual with warranty information
  •

    Estimated Runtime - Loads in Watts
    UPS 20W 40W 60W 80W 100W 140W 200W 260W 300W 340W 400W 440W
    SMART550USB 140 68 43 30 23 15 8.3 5.2 4.0
    SMART550USBWD 140 68 43 30 23 15 8.3 5.2 4.0
    SMART750USB 194 94 59 42 32 21 13 8.6 6.9 5.7 4.4 3.2

    All runtimes values are in minutes



      SMART550USB SMART550USBWD SMART750USB
    SYSTEM OVERVIEW
    Voltage compatibility 120VAC 120VAC 120VAC
    Frequency compatibility 60Hz 60Hz 60Hz
    OUTPUT
    Output VA 550 550 750
    Output watts 300 300 450
    Output nominal voltage 120VAC 120VAC 120VAC
    Output voltage regulation PWM sine wave 120V +/-5% (battery mode)
    Output frequency regulation LINE MODE: Passes line frequency of 60Hz +/-10%
    BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz
    Outlet quantity / type 6 NEMA 5-15R
    INPUT
    Maximum input amps 10A / 1200 watts 10A / 1200 watts 10A / 1200 watts
    Input connection type NEMA 5-15P, right-angle plug NEMA 5-15P, right-angle plug NEMA 5-15P, right-angle plug
    Input cord length 6ft (1.8m), 16 gauge 6ft (1.8m), 16 gauge 6ft (1.8m), 16 gauge
    Recommended Electrical Service 120V 15A 120V 15A 120V 15A
    BATTERY
    Full load runtime 4 minutes (550VA) 4 minutes (550VA) 3 minutes (750VA)
    Half load runtime 15 min (275VA) 15 min (275VA) 11 min (375VA)
    DC system voltage 12 VDC 12 VDC 12 VDC
    Typical battery lifespan 3-6 years, depending on usage 3-6 years, depending on usage 3-6 years, depending on usage
    Battery recharge rate 3.6 hours to reach 90% charge 2-4 hours to reach 90% charge 2-4 hours to reach 90% charge
    Replacement Battery Cartridge RBC51 RBC51 RBC51
    VOLTAGE REGULATION
    Voltage regulation description Line interactive voltage regulation corrects brownouts as low as 89V
    Brownout correction Input voltages between 89V and 104V are boosted by 14%
    LEDS ALARMS & SWITCHES
    Front panel LEDs 4 LEDs indicate performance conditions:
    GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace"
    Alarms Audible alarm with 15 second delay sounds to indicate loss of utility power. Alarm can be silenced by pressing front panel alarm cancel button. Once silenced, alarm will re-sound when approximately 2 minutes of runtime remain.
    Switches Includes 2 front panel switches - one main on/off power switch and one dual function "alarm cancel" / "self test" button
    SURGE / NOISE SUPPRESSION
    AC surge suppression 480 joules 480 joules 480 Joules
    AC suppression response time Instantaneous Instantaneous Instantaneous
    Dataline suppression Tel/DSL Tel/DSL Tel/DSL
    EMI / RFI AC noise suppression Yes Yes Yes
    PHYSICAL
    Unit weight 14.4 lbs (6.5 kg) 14.4 lbs (6.5 kg) 17.4 lbs (7.9 kg)
    Unit dimensions 8.5"H x 5"W x 6.5"D (21.6cm x 12.7cm x 16.5cm) 8.5"H x 5"W x 6.5"D (21.6cm x 12.7cm x 16.5cm) 10.75"H x 5.25"W x 7.5"D (27.3cm x 13.3cm x 19.1cm)
    Material of construction PVC PVC PVC
    Form factors supported Tower Tower Tower
    Cooling method Convection Convection Convection
    Battery Access Battery access door allows user replacement of UPS batteries Battery access door allows user replacement of UPS batteries Battery access door allows user replacement of UPS batteries
    ENVIRONMENTAL
    Operating Temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)
    Storage Temperature 5°F to 122°F (-15°C to 50°C) 5°F to 122°F (-15°C to 50°C) 5°F to 122°F (-15°C to 50°C)
    Relative Humidity 0 to 95%, non-condensing 0 to 95%, non-condensing 0 to 95%, non-condensing
    Line mode BTU/hr. (Max.) 39.2
    Battery mode BTU/hr. (Max.) 133.0
    COMMUNICATIONS
    Network monitoring port USB USB USB
    Software and cabling included USB cabling included, PowerAlert software available for free download at www.tripplite.com USB cabling, WatchDog and PowerAlert Software included USB cabling included, PowerAlert software available for free download at www.tripplite.com
    WatchDog compatibility Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications Yes, compatible with Tripp Lite's WatchDog Software (included) to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment — ideal for all unattended applications. Yes, compatible with Tripp Lite's WatchDog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
    LINE / BATTERY TRANSFER
    Transfer time from line power to battery mode 2-4 milliseconds 2-4 milliseconds 2-4 milliseconds
    Low voltage transfer to battery power Switches to battery power as line voltage decreases to 89 volts or less Switches to battery power as line voltage decreases to 89 volts or less Switches to battery power as line voltage decreases to 89 volts or less
    High voltage transfer to battery power Switches to battery power as line voltage increases to 139 volts or higher Switches to battery power as line voltage increases to 139 volts or higher Switches to battery power as line voltage increases to 139 volts or higher
    SPECIAL FEATURES
    Cold Start Yes, inverter can be "cold started" to enable temporary AC output during a power failure Yes, inverter can be "cold started" to enable temporary AC output during a power failure Yes, inverter can be "cold started" to enable temporary AC output during a power failure
    Appearance Attractive all-black tower UPS Attractive all-black tower UPS Attractive all-black tower UPS
    CERTIFICATIONS
    Certifications Tested to UL1778 (USA), cUL (Canada), NOM (Mexico), Class B (Emissions), FCC Part 68 and Industry Canada (Telecommunications) Tested to UL1778 (USA), cUL (Canada), NOM (Mexico), Class B (Emissions), FCC Part 68 and Industry Canada (Telecommunications) Tested to UL1778 (USA), cUL (Canada), NOM (Mexico), Class B (Emissions), FCC Part 68 and Industry Canada (Telecommunications)
    WARRANTY
    Manufacturer's product warranty 2-years 2-years 2-years
    Connected equipment insurance $200,000 connected equipment insurance (USA / Canada only) $200,000 connected equipment insurance (USA / Canada only) $200,000 connected equipment insurance (USA / Canada only)
    Optional coverage 3-5 year warranties, plus next day and on-site warranty coverage available for select opportunities. Contact Tripp Lite for additional information.
