Signamax™ Low-Profile Fiber Optic Enclosures

High-Density Fiber Patching for Space-Limited Rackmount Applications

Signamax SL2M-B

More Images
Close Window

Signamax Low-Profile Fiber Optic Enclosures

    Additional Images
  • Signamax 1 RU Slide-Out Optical Fiber Enclosure with 2 adapters - icon
  • Signamax 1 RU Slide, Fiber Enclosure with 3 adapters - icon
  • Signamax Aluminum 12-Fiber Splice Tray - icon
  • UFE-B-06LC LC adapter - icon
  • UFE-B-06MTRJ MT-RJ adapter plate 6 duplex - icon
  • UFE-B-06SC SC adapter - icon
  • UFE-B-06ST ST adapter - icon
  • UFE-B-08LC LC adapter plate 8 duplex - icon
  • UFE-B-08MTRJ MT-RJ adapter plate - icon
  • UFE-B-08SC SC adapter plate, 8 fiber - icon
  • UFE-B-08ST ST adapter plate - icon
  • UFE-B-12SC SC adapter plate, 12 fiber - icon
  • UFE-B-12ST ST adapter plate, 12 fiber - icon
  • UFE-B-BL blank filler adapter plate - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2013 CableOrganizer.com

*Adapter plates sold separately

Low Price GuaranteeWhat's special about these slide-out fiber enclosures?

  • Low-profile construction requires only 1 RU of space while providing termination densities ranging from 12 to 72 fibers
  • Slide-out support tray provides convenient access to fibers and cable management provisions
  • Available in either 2- or 3-adapter plate models to provide the perfect level of fiber connectivity without wasting unnecessary space
  • Click for More Features

Signamax™ Low-Profile Slide-Out Fiber Optic Enclosures offer users a compact fiber patching solution for overcrowded enclosures or situations in which space is at a premium. These optical fiber rackmount enclosures utilize Signamax's full line of modular adapter panels to create a flexible connection pattern based around ST, SC, LC, and MT-RJ connector types.

  • Transparent top panel provides clear visibility of fibers to ensure proper installation, and to lessen the amount of time required for routine inspections
  • Modular configuration supports a wide range of fiber optic adapter panels, to provide a unique patching system tailored to the specific requirements of your network
  • Adapter plates utilize plunger-style locks to provide fast, tool-less mounting
  • Internal anchor points and slack management mechanisms are provided to ensure fibers are securely fixed, while maintaining a safe bend radius and level of tension
  • Optional splice trays are available for greater flexibility and fiber distribution
  • Constructed from incredibly durable die-cast steel finished with an high-impact, anticorrosive black epoxy-powder paint, which offers long-lasting quality and strength



PART# SX-SL2M-B SX-SL3M-B
PRICE
$101.25 Qty:
$102.75 Qty:
Capacity
Adapter Plates: 2 3
Fibers: 12- to 48-Fibers 18- to 72-Fiber
Dimensions
Rack Height: 1 RU 1 RU
Height: 1.75" (44.45mm) 1.75" (44.45mm)
Width: 19.0" (482.6mm) 19.0" (482.6mm)
Depth: 13.0" (330.2mm) 13.0" (330.2mm)
Weight: 12 lbs. 12 lbs.
Construction
Die steel
High-impact black epoxy-powder anticorrosive paint
Clear plastic hinged front cover
Warranty
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty

NOTE: Only Compatible with Signamax adapters, enclosures

PART # DESCRIPTION CAPACITY DIMENSIONS PRICE
SX-SL2M-B Signamax 1 RU Slide-Out Low Profile Optical Fiber Enclosure 2 Adapter Plates (12- to 48-Fibers) 1.75”H x 19”W x 14”D
$101.25 Qty:
SX-SL3M-B Signamax 1 RU Slide-Out Low Profile Optical Fiber Enclosure 3 Adapter Plates (18- to 72-Fibers) 1.75”H x 19”W x 14”D
$102.75 Qty:

Fiber Optic Trays
PART # DESCRIPTION PRICE
SX-FST-2M-B Signamax Aluminum 12-Fiber Splice Tray (Up to 2 Splice Trays Per Enclosure)
$11.40 Qty:

Adapter Plates
PART # DESCRIPTION FIBER / ADAPTER COUNT ADAPTER TYPE PRICE
ST Adapter Plates

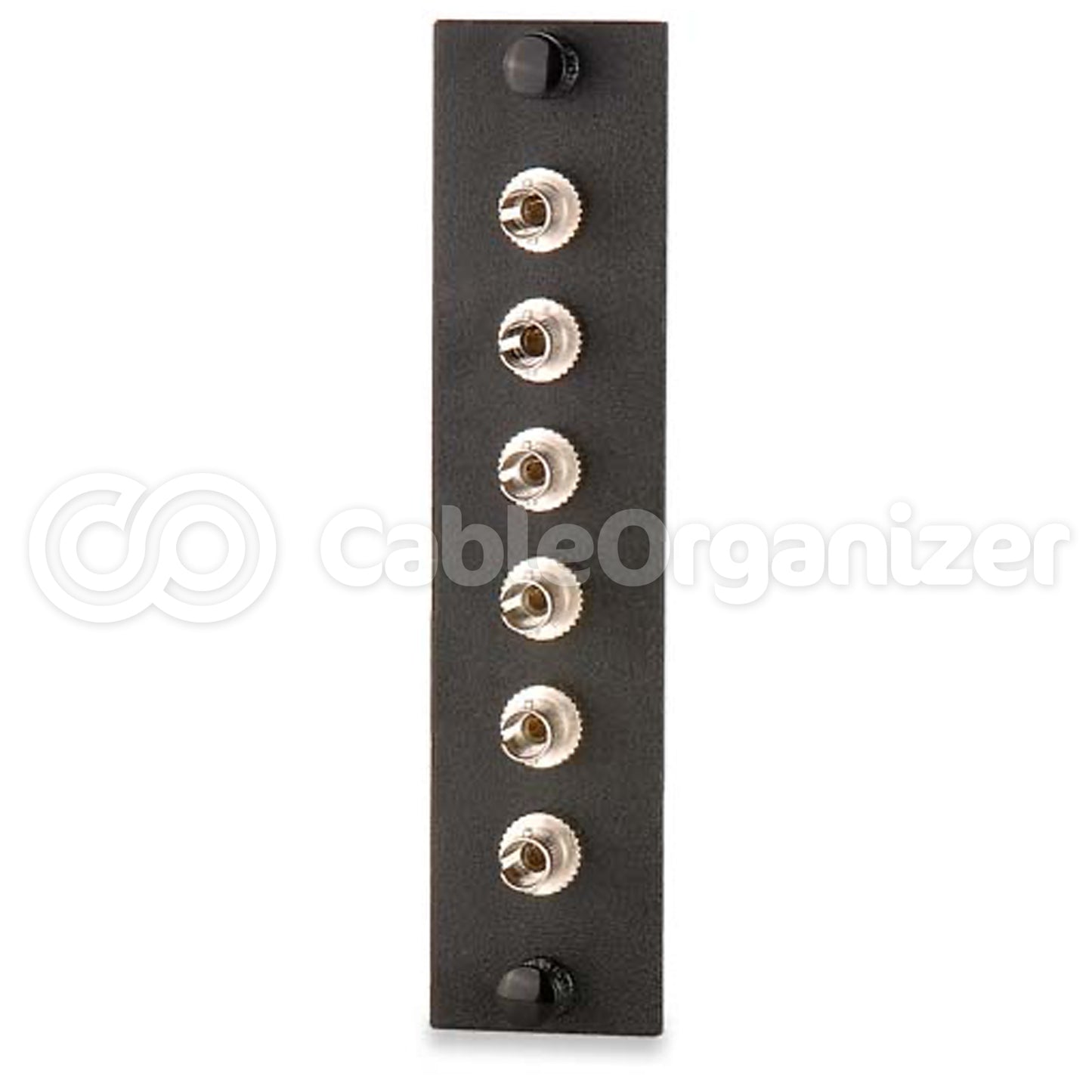

SX-UFE-B-06ST Signamax ST Adapter Plate 6-Fiber (6-Simplex) ST Multimode
$19.63 Qty:
SX-UFE-B-08ST Signamax ST Adapter Plate 8-Fiber (8-Simplex) ST Multimode
$23.78 Qty:
SX-UFE-B-12ST Signamax ST Adapter Plate 12-Fiber (12-Simplex) ST Multimode
$31.71 Qty:
SX-UFE-B-06ST-C Signamax ST Adapter Plate 6-Fiber (6-Simplex) ST Single Mode
$23.93 Qty:
SX-UFE-B-08ST-C Signamax ST Adapter Plate 8-Fiber (8-Simplex) ST Single Mode
$29.29 Qty:
SX-UFE-B-12ST-C Signamax ST Adapter Plate 12-Fiber (12-Simplex) ST Single Mode
$40.09 Qty:
SC Adapter Plates
SX-UFE-B-06SC Signamax SC Adapter Plate, Beige Adapters 6-Fiber (6-Simplex) SC Multimode
$21.52 Qty:
SX-UFE-B-08SC Signamax SC Adapter Plate, Beige Adapters 8-Fiber (8-Simplex) SC Multimode
$26.05 Qty:
SX-UFE-B-12SC Signamax SC Adapter Plate, Beige Adapters 12-Fiber (6-Duplex) SC Multimode
$30.20 Qty:
SX-UFE-B-06SC-C Signamax SC Adapter Plate, Beige Adapters 6-Fiber (6-Simplex) SC Single Mode
$26.80 Qty:
SX-UFE-B-08SC-C Signamax SC Adapter Plate, Beige Adapters 8-Fiber (8-Simplex) SC Single Mode
$33.22 Qty:
SX-UFE-B-12SC-C Signamax SC Adapter Plate, Beige Adapters 12-Fiber (6-Duplex) SC Single Mode
$39.26 Qty:
LC Adapter Plates
SX-UFE-B-06LC Signamax LC Adapter Plate, Beige Adapters 12-Fiber (6-Duplex) LC Multimode
$43.04 Qty:
SX-UFE-B-08LC Signamax LC Adapter Plate, Beige Adapters 16-Fiber (8-Duplex) LC Multimode
$55.12 Qty:
SX-UFE-B-12LC Signamax LC Adapter Plate, Beige Adapters 24-Fiber (6-Quad) LC Multimode
$77.01 Qty:
SX-UFE-B-06LC-C Signamax LC Adapter Plate, Beige Adapters 12-Fiber (6-Duplex) LC Single Mode
$63.42 Qty:
SX-UFE-B-08LC-C Signamax LC Adapter Plate, Beige Adapters 16-Fiber (8-Duplex) LC Single Mode
$79.28 Qty:
SX-UFE-B-12LC-C Signamax LC Adapter Plate, Beige Adapters 24-Fiber (6-Quad) LC Single Mode
$149.49 Qty:
MT-RJ Adapter Plate
SX-UFE-B-06MTRJ Signamax MT-RJ Adapter Plate, Beige Adapters 12-Fiber (6-Duplex) MT-RJ Single/Multimode
$21.14 Qty:
SX-UFE-B-08MTRJ Signamax MT-RJ Adapter Plate, Beige Adapters 16-Fiber (8-Duplex) MT-RJ Single/Multimode
$26.43 Qty:
Blank Filter
SX-UFE-B-BL Signamax Blank Filler Adapter Plate Blank -
$5.29 Qty:
