Bentley Harris Flame Retardant Roundit® 2000 NX Nomex Sleeve

Split Design for Easy Installation in Demanding Applications

Nomex, bentley harris

Close Window

Bentley Harris Roundit® 2000 NX Nomex Sleeve

    Additional Images

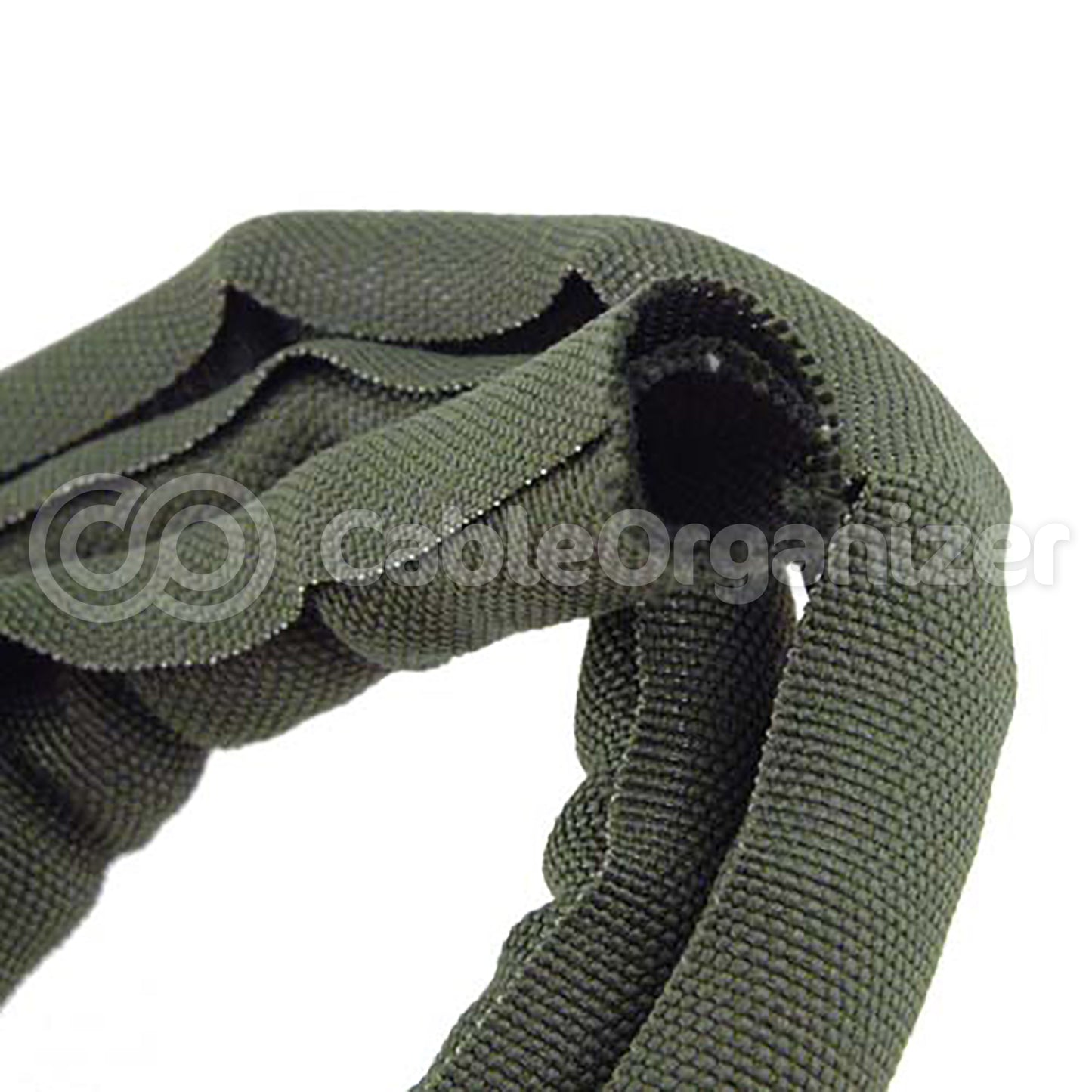

  • close up of bentley harris roundit nx 2000 sleeving termination - icon
  • close up of bentley harris roundit nx 2000 sleeving open - icon
  • close up of bentley harris roundit nx 2000 sleeving open with wire loom inside - icon
  • red woven wrap around installation tool in use on bentley harris roundit 2000 nx nomex sleeving - icon
  • red woven wrap around installation tool in use on cables - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2014 CableOrganizer.com

Click here for Roundit® 2000 Woven Wrap-Around Sleeving



Low Price GuaranteeWhat's special about this nomex sleeve?

  • RoHS logoWoven Blend of PPS (Polyphenylene Sulfide) and Nomex
  • Operating Temperature -60ºC to +200ºC
  • Rated to 200º C
  • GSA approvedFAR Part 25
  • Halogen-free
  • Flame retardant
  • Click for More Features
Scroll To Pricing

The Roundit 2000NX wrap-around sleeving is the perfect balance between Expandable Braided Sleeving and Split Wire Loom a.k.a. Corrugated Tubing. It splits in the middle for easy insertion and installation of wires or bundles of cables. It is a tough, lightweight over sleeve used to bundle and protect cable assemblies, hoses and wire harnesses from chafing, cutting, and abrasion.

The self-wrapping feature of woven wrap-around allows for quick and easy application and removal of the product for assembly and maintenance. It is ideal for cables and lines that are already in place and hard to remove for conventional cable protective solutions, such as automotive applications (engine compartments) or multi cable strings on or under your desk. Not only does the Woven Wrap-Around protect wires from spilled liquids and sharp edges, but it also gives your application an organized look without disturbing connectors or fittings.

  • Woven Blend of PPS (Polyphenylene Sulfide) and Nomex
  • Operating Temperature -60º C to +200º C
  • Rated to 200º C
  • FAR Part 25
  • Halogen-free
  • Self-wrapping design
  • Easy to apply and remove
  • Ideal for reworking components without disconnecting them
  • Tough fabric texture
  • Intended for rail and air transportation applications
  • For Cutting Guide of  Woven Wrap-Around, click here. Please do not use Hot Knife to cut this product



Flame Retardant Woven Wrap-Around is a woven blend of PPS (Polyphenylene Sulfide) and Nomex. This blend in a flat weave construction gives Flame Retardant Woven Wrap-Around a rugged yet smooth texture and appearance. This product is rated to 200° C. Flame Retardant Woven Wrap-Around has many applications in the aeronautical, marine, rail and industries.





Property Test Value
Filament Diameter - Wrap 1440 dtex Textured Nomex
- - Fill .010"PPS monofilament and 1440 dtex Nomex
Degradation Temperature   Nomex 371°C
Melt Temperature ASTM D-2117 PPS 285°C
Flammability F.A.R. Part 25 (60 s) Pass
  F.A.R. Part 25 (12 s) -
Surface Flammability ASTM E-162 51.3
Smoke Density AITM 2.0007 (flaming) Dmax = 49.3
  AITM 2.0007 (non-flaming) Dmax = 7.0
Hard Vacuum ASTM E-595 -
TML - 1.714%
CVCM - 0.107%
WVR - 1.042%
Toxicity AITM 3.0005 Pass
Fluid Resistance MIL-I-23053 Tensile Retention
Jet Fuel JP-4 (MIL-T-5624) - 100%
Hydraulic Fluid (MIL-H-5606) - 100%
Lube Oil (MIL-I-7808) - 100%
De-Ice Fluid (MIL-A-8243) - 100%
Reference Oil #2 (ASTM D-471) - 100%
Salt Water (O-S-1926) - 100%



*All Bentley Harris products are ROHS compliant and have an indefinite shelf life. ISO 14001 & TS16949 certified.

Most items in stock!! Ship today!!

Nominal
Size
Expansion
Ratio
Color Spool
Part #
Weight
per Spool
FT / Spool Price / Spool   Per Foot
Part #
Price / FT
5/16" 3/16" - 3/8" Green RDTNX0313 6 lbs 328'
Qty:
  RDTNX0313FT
Qty:
1/2" 1/4" - 5/8" Green RDTNX050 4 lbs 164'
Qty:
RDTNX050FT
Qty:
3/4" 1/2" - 1" Green RDTNX075 3 lbs 82'
Qty:
RDTNX075FT
Qty:
1" 3/4" - 1-1/4" Green RDTNX100 3 lbs 82'
Qty:
RDTNX100FT
Qty:
1-1/2" 1-1/4" - 1-3/4" Green RDTNX150 3.5 lbs 82'
Qty:
RDTNX150FT
Qty:

Normally our policy is to supply continuous lengths. If it is absolutely necessary to receive one continuous length, please specify.

Nominal size is determined by wrapping product around a mandrel of a given size to obtain an overlap of between 45° and 135°. Woven Wrap-Around should be tied at intervals if continuous use temperature exceeds 110° C.

Installation Tools

Part # Description Size Range Color Price
RDTOOL Woven Wrap
Installation Tool
5/16" - 1/2" Red
Qty:
SHRTOOL-25 Slit Harness Wrap Tool 1-1/4", 1-1/2" Orange
Qty:
WLITOOL Wire Loom Installation Tool 3/4" - 1" Yellow
Qty:
