Snap Bushing

Bushings That Absorb Shock - Installed in a Snap

Richco Snap Bushing Group

Close Window

Richco Snap Bushings

    Additional Images
  • side view of richco snap bushings - icon
  • richco snap bushings size compared to penny - icon
  • drawing of richco snap bushings - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2014 CableOrganizer.com

Low Price GuaranteeWhat's special about Richco snap bushings?

  • GSA approvedInstalls easily into any existing hole up to 0.118 inch thick.
  • The top wings keep any diameter and shape wires centered.
  • Designed to protect wires and cables, as well as absorb shock, vibration.
  • Available in quantities of either 1,000 or 25 bushings.
  • Click for More Features
Scroll To Pricing

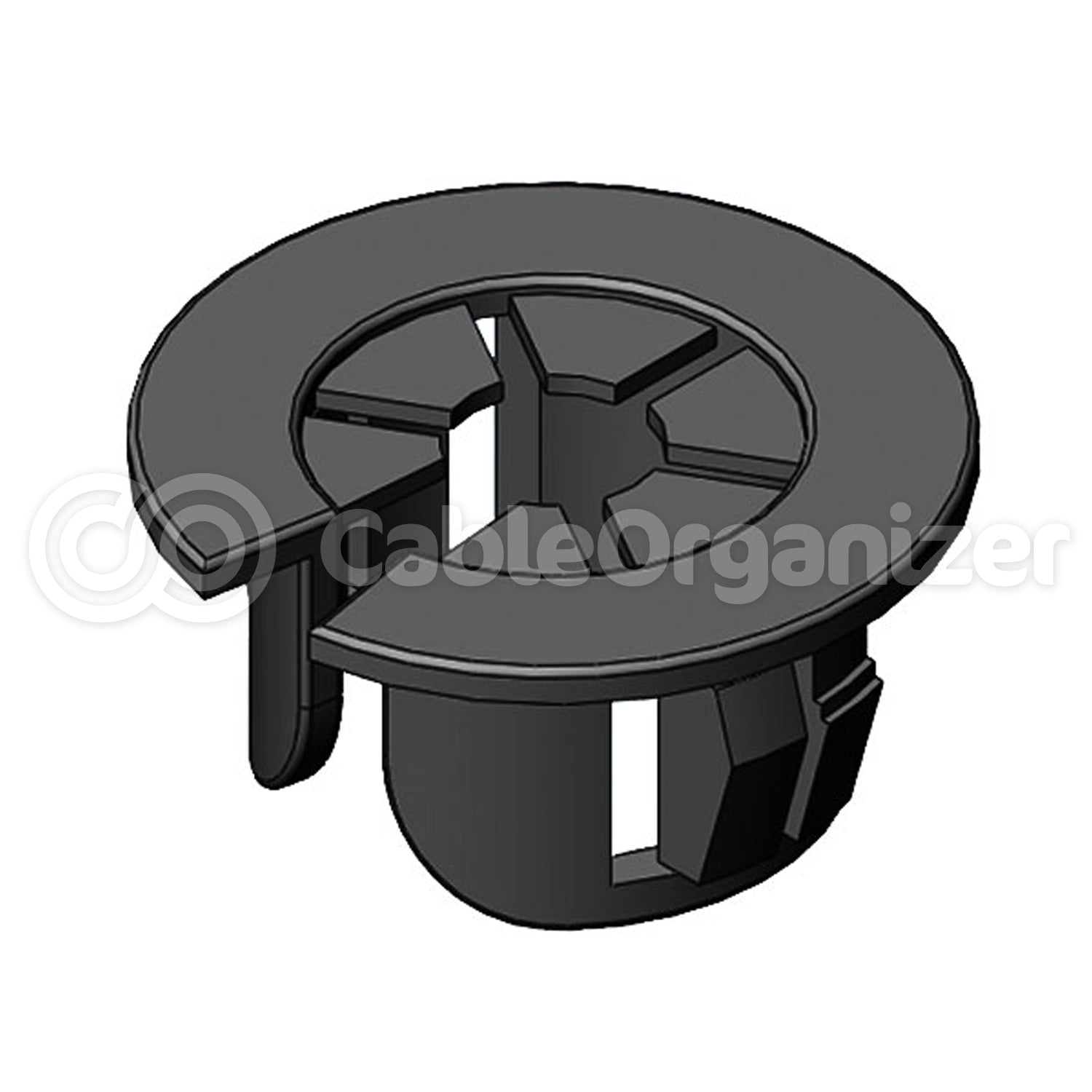

The RICHCO® Snap Bushing is built to protect wires and cable and absorb shock and vibration. The Snap Bushing wings at the top wire inlet adjust to accept various diameters and shapes. Installs on any panel from 0.031 to 0.118 inch thickness.

  • Manufactured with nylon 6/6 material, RMS-01
  • Color Black
  • Available in Quantity (25) or Quantity (1000) packages



Snap Bushing Specifications



PART # PANEL THICKNESS RANGE HOLE DIAMETER OVERALL WIDTH
"A"
MAXIMUM BUNDLE
DIAMETER "B"
OVERALL HEIGHT
"C"
RI-PGSC-1319A 0.0315" - 0.1181"
[0.8 mm - 3.0 mm]
0.748" - 0.752"
[19.0 mm - 19.1 mm]
0.8583"
[21.8 mm]
0.500"
[12.7 mm]
0.3898"
[9.9 mm]
RI-PGSC-1422A 0.0315" - 0.1181"
[0.8 mm - 3.0 mm]
0.874" - 0.8819"
[22.2 mm - 22.4 mm]
0.9370"
[23.8 mm]
0.5630"
[14.3 mm]
0.4528"
[11.5 mm]
RI-PGSC-1926A 0.0315" - 0.1181"
[0.8 mm - 3.0 mm]
1.00" - 1.0039"
[25.4 mm - 25.5 mm]
1.0630"
[27.0 mm]
0.7480"
[19.0 mm]
0.4528"
[11.5 mm]
RI-PGSC-2128A 0.0315" - 0.1181"
[0.8 mm - 3.0 mm]
1.0945" - 1.1024"
[27.8 mm - 28.0 mm]
1.1614"
[29.5 mm]
0.8150"
[20.7 mm]
0.4528"
[11.5 mm]

Please Note: These products ship in 5 business days
Only Available in Black

PART # HOLE DIAMETER SHIPPING WEIGHT QUANTITY PER PACK PRICE PER PACK
RI-PGSC-1319A-25 0.75 inches 0.5 lbs 25
Qty:
RI-PGSC-1319A-1000 0.75 inches 3.0 lbs 1000
Qty:

RI-PGSC-1422A-25 0.88 inches 0.5 lbs 25
Qty:
RI-PGSC-1422A-1000 0.88 inches 3.0 lbs 1000
Qty:

RI-PGSC-1926A-25 1.00 inches 0.5 lbs 25
Qty:
RI-PGSC-1926A-1000 1.00 inches 3.0 lbs 1000
Qty:

RI-PGSC-2128A-25 1.10 inches 0.5 lbs 25
Qty:
RI-PGSC-2128A-1000 1.10 inches 3.0 lbs 1000
Qty:
