Pop 'N Plug Power and Data Center

Customize the Connections ... and the Top


PDC-PNP417
Qty:

What's special about this power and data center?

  • Available either pre-configured or with 5 slots to fill with your needs.
  • Top of the Pop 'N Plug uses the cutout from the table or desk to maintain the look when lowered and not in use.

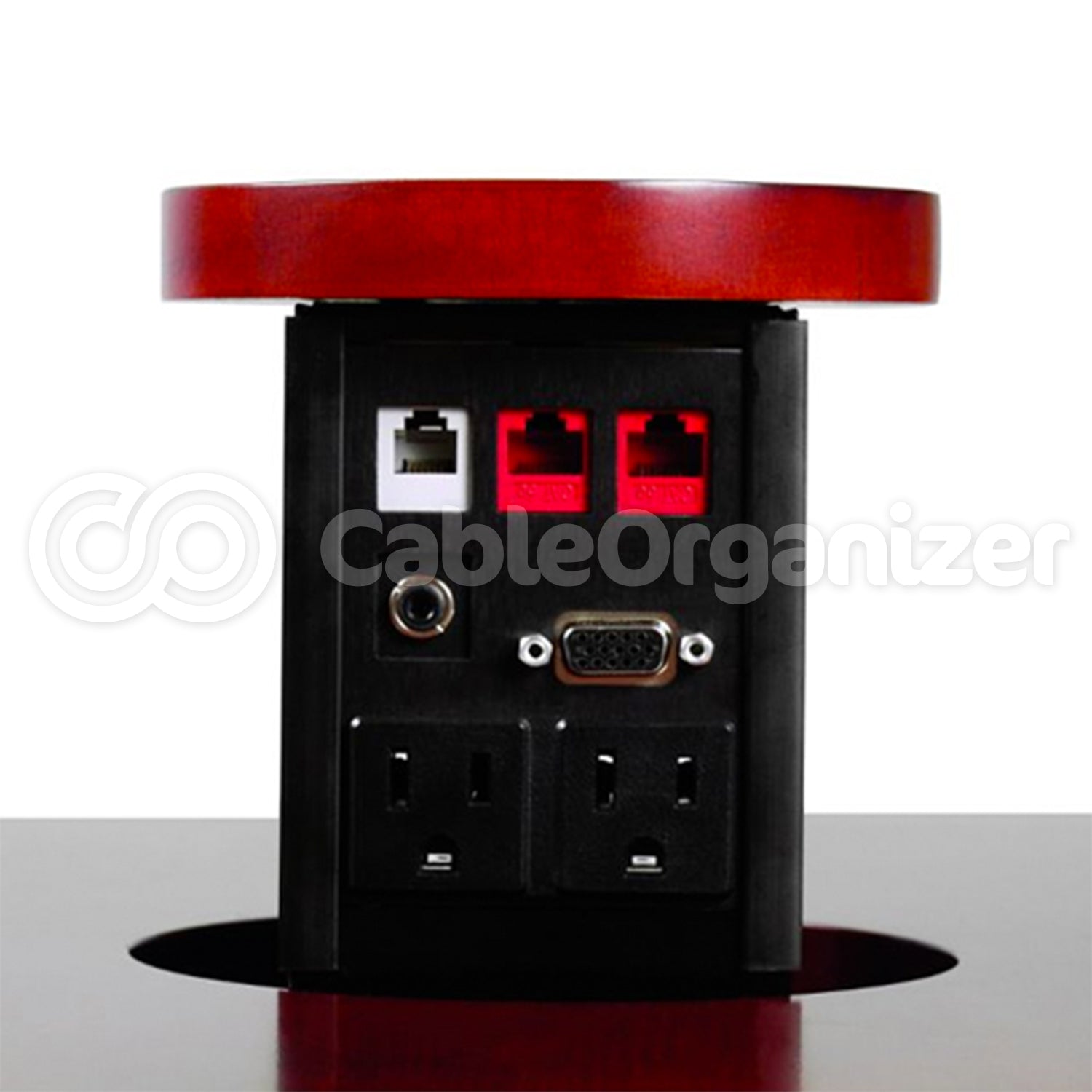

  • Each plate of the Standard Configuration contains two power outlets, a VGA port, two RJ45 ports, one RJ11 port, and one audio port.
  • A slight press of the top when retracted activates the gas spring lift mechanism.
  • Click for More Features

These Products Ship in 2 Weeks

Standard Configuration
Part # Description Price
PDC-PNP417 Quantity 2 sectional plates (PDC- DS901-120) including:
  • Qty. (4) 15 amp Power Receptacles
  • Qty. (2) VGA connectors
  • Qty. (4) RJ-45 connectors / cable
  • Qty. (2) RJ-11 connectors / cable
  • Qty. (2) 3.5 mm Audio connectors / cable
Qty:
Manufacturer Direct

These Products Ship in 2 Weeks

Custom Configuration
Part # Description Price
PDC-PNP417C Quantity 2 sectional plates (PDC- DS901-121) including:
  • Qty. (4) 15 amp Power Receptacles
  • Qty. (2) VGA connectors
  • 5 empty openings per each sectional plate that can be custom configured
Qty:
Manufacturer Direct

*  Custom Orders
Because they're specifically tailored to your individual needs and are therefore not resellable, we're unable to accept returns on custom-ordered items of any sort. The only circumstances under which we will allow the return of a custom order is if the item has a manufacturing defect.

Snap-in Connectors

Only for Jacks 1, 2 & 3
blank snap-in plate CM11301 This blank snap-in plate fills unused snap-in ports. Available in black
Gold-plated RCA female connector CM11302 Gold-plated RCA female connector with black stripe, mounted in an ivory snap-in port. Includes six-foot coaxial cable, terminated in gold-plated RCA female connector. Typically used for the Left audio channel. Gold-plated RCA female connector with red stripe, mounted in an ivory snap-in port. Includes six-foot coaxial cable, terminated in gold-plated RCA female connector. Typically used for the Right audio channel
CM11303 Gold-plated RCA female connector with yellow stripe, mounted in an ivory snap-in port. Includes six-foot coaxial cable, terminated in gold-plated RCA female connector. Typically used for composite video channel
jack CM11305 3.5mm stereo mini jack, mounted in a black snap-in port. Includes six-foot cable, terminated in 3-pin terminal block connector
RJ-11 snap-in connector CM11306 Gray RJ-11 snap-in connector with six foot cord terminated in RJ-11 male connector
DIN female connector CM11333 4-pin mini DIN female connector, mounted in a black snap-in port. Includes six-foot cable, terminated in 4-pin mini DIN female connector. Typically used for S-video. CM11308 female-to-female assembly
DIN female connector CM11309 6-pin mini DIN female connector, mounted in a black snap-in port. Includes six-foot cable, terminated in 6-pin mini DIN female connector. Typically used for computer keyboard or mouse
DIN female connector CM11310 8-pin mini DIN female connector, mounted in a black snap-in port. Includes six-foot cable, terminated in 8-pin mini DIN female connector. Typically used for RS-422/serial data port
BNC female connector CM11311 BNC female connector, mounted in a white snap-in port. Includes six-foot coaxial cable, terminated in BNC female connector. Typically used for composite video channel
CM11312 CM11312 Momentary contact closure, mounted in a black snap-in port, with integrated LED. Includes six foot four-conductor cable, four wire nuts
CM11313 CM11313 Latching contact closure, mounted in a black snap-in port, with integrated LED. Includes six foot four-conductor cable, four wire nuts
Green LED CM11314 Green LED, mounted in a black snap-in port. Includes six foot cable, two wire nuts
snap-in assembly CM11315 10-pin RJ-45 female Ivory snap-in assembly, including six foot 10-conductor cable with a 10-pin RJ-45 male end
stereo mini jack CM11316 3.5mm stereo mini jack, mounted in a black snap-in port. Includes six-foot cable, terminated in 3.5mm stereo mini male
CM11365 CM11365 Horizontal position control and signal present LED in a black snap-in port with 6 ft/1.8m cable
XLR female connector CM11364 3-pin mini XLR female connector mounted in a black snap-in port. Includes six foot cable, terminated in mini XLR male connector
USB-B female mounted CM11366 USB-B female mounted in a black snap-in assembly, including six foot USB cable with a USB-A male end
Only for Jack 4
stereo mini cable CM11404 3.5 mm stereo mini female-to-male cable, for use in the SP1100SC blank sectional plate
stereo mini jack hole CM11405 Blank cover for 3.5 mm stereo mini jack hole in the SP1100SC blank sectional plate
Only for Jack 5
Blank D-sub cover CM11401 Blank D-sub cover, black
HD female-to-female cable CM11402 15-pin HD female-to-female six foot cable, suitable for installation in Designer Series products
HD cable CM11406 15-pin HD female-to-male cable, including finger-type lock-down screws on male end. Suitable for installation in Designer Series products
D-sub female-to-female cable CM11403 9-pin D-sub female-to-female six foot cable, suitable for installation in Designer Series products
CM11410 9-pin D-sub female-to-male six foot cable, suitable for installation in Designer Series products

Click here to view Dimensions
Click here to view Diagram
Important: Specifications subject to change without notice. Do not use the diagrams to perform table modification

*  Custom Orders
Because they're specifically tailored to your individual needs and are therefore not resellable, we're unable to accept returns on custom-ordered items of any sort. The only circumstances under which we will allow the return of a custom order is if the item has a manufacturing defect.

Terms & Conditions on Custom Orders:
All custom product sales are final and cannot be returned for credit. FACTORY CONFIGURED PRODUCTS: Factory configured products may be returned for credit within 30 days of shipment, and are subject to a 35% re-stocking charge if unopened, and an additional $250 (USD) if returned opened.
Orders cannot be cancelled except with our consent. Cancellations are subject to a possible service charge. Cancellations of custom orders and/or special items may be subject to forfeiture of deposit.

The Pop 'N Plug Power Data Center allows you to save the hole cut-out from your wood table and install it as the top of the Power Data Center. This design allows you to continue to display the original wood grain and finish of your table when the Pop 'N Plug Power Data Center is closed. The unit opens and closes when you press on the wood top. The Pop 'N Plug can be custom configured to your specific Audio / Visual needs. The standard model PDC-PNP417 is pre-configured with quantity (2) PDC-DS901-120 sectional plates (included connectors are listed within the Features below).

 General Features:

  • Customizable to all tabletops
  • Connector compatible, Holds up to 8 optional connector plates.
  • Smooth look on all sides
  • Wood Grain matches perfectly because the original table cut-out is used for the top.
  • Accommodates round, rectangular, or square table cut-out.
  • Simple, slide-in installation
  • Opens and closes by pressing on the top.
  • All connectors and power receptacles include 6 FT. fully terminated cables.
  •

    *  Custom Orders
    Because they're specifically tailored to your individual needs and are therefore not resellable, we're unable to accept returns on custom-ordered items of any sort. The only circumstances under which we will allow the return of a custom order is if the item has a manufacturing defect.



    Model PDC-PNP417 - Standard Configuration



    data center power
  • Quantity 2 sectional plates (PDC- DS901-120) including:
  • Qty. (4) Power Receptacles
  • Qty. (2) VGA connectors
  • Qty. (4) RJ-45 connectors / cable
  • Qty. (2) RJ-11 connectors / cable
  • Qty. (2) 3.5 mm Audio connectors / cable

  • Model PDC-PNP417C - Custom Configuration



    Tabletop Interconnect
  • Quantity 2 sectional plates (PDC- DS901-121) including:
  • Qty. (4) Power Receptacles
  • Qty. (2) VGA connectors
  • 5 empty openings per each sectional plate that can be custom configured for RJ-45 (UTP) connectors, RJ-11 (modem) connector, 3.5mm audio connector, or any other connectors that fit the opening size
  •

    pop n plug dimension application diagram
    Dimensions of Pop 'N Plug PNP417 Application of PNP417



    Cutout 5.25"
    AC Power NEMA 5-15
    Power Rating 120 VAC, 60 Hz, 5A
    Power Cord Length 10 ft

    Minimum Table Thickness 0.5" [13 mm]
    Maximum Table Thickness 1.125" [29 mm]
    Manuals




    Related Articles





    How-To Corner






    Request A Quote

    Did you know that we can give you a quote for most of our products, including shipping?

    You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)

    Questions & Answers

    Question:

    I have PDC-PNP417 and would like to know if it is possible to change the slot 5 to hdmi?

    Asked by Anonymous user on 12.49 PM Tuesday, 28 February, 2017

    Answer:
    • - Yes, we can have an HDMI placed in slot 5. Please give us a call at 866-222-0030 so that we can provide you with a quote for this custom unit.

      Anonymous user on 05.18 PM Tuesday, 28 February, 2017
