Low Price GuaranteeWhat's special about these wiring blocks?

  • Durable, convenient design to ensure a long lasting and dependable connection that requires less maintenance
  • Interchangeable colored labels for easy wire identification
  • GSA approvedPatented design has openings between rows to allow easy routing and organization of cables
  • Available in 100 and 300 pair blocks for a wide range of applications
  • Click for More Features

Siemon's 110 and 66 wiring blocks provide dependable support to data and voice applications. Siemon Category 5e 110 blocks offer a patented design that has openings between the rows to allow horizontal cables to be routed from behind the panel and enter the block from the rear making installation easy for network managers. This feature also helps to maintain cable geometry and the outer jacket up to the point of termination, giving the user optimum category 5e performance. The 66 block has a similar feature. The ends are open allowing the installer to lay cable in before snapping the block into place.

110 block
  • Durable and convenient design
  • Ideal for many applications such as cross-connect and consolidation point applications
  • Interchangeable colored labels can be mounted in the center or on the outside of the wiring block

  • UL and CSA logos

  66 block
  • Open ends to make installation simpler
  • 25 pair connector and/or modular components can be mounted on the sides or the back of brackets
  • Molded brackets made from flame retardant thermoplastic

  • UL and CSA logos


The 110 blocks are available in 100 pair and 300 pair, these blocks have mounting legs that can detach giving the installer easier access to cables at any point in time. The 66 blocks are available in 50 pair units and have coordinating brackets for mounting. The IT-S89D can be used to mount two 25-pair connectors on each side and four on the back and the IT-S89B can mount one 25 pair connector on each side.

110 Blocks

Click image below for larger view PART # DESCRIPTION DIMENSIONS PRICE
S110-AW2-50 IT-S110-AW2-50 50 pair, 110 wiring block with legs without connector 2"H x 11 "W x 4"D
Qty:
S110AW2-100 IT-S110AW2-100 100 pair, 110 wiring block with legs without connector 4"H x 11"W x 4"D
Qty:
S110AW2-300 IT-S110AW2-300 300 pair, 110 wiring block with legs without connector 11"H x 11"W x 4"D
Qty:

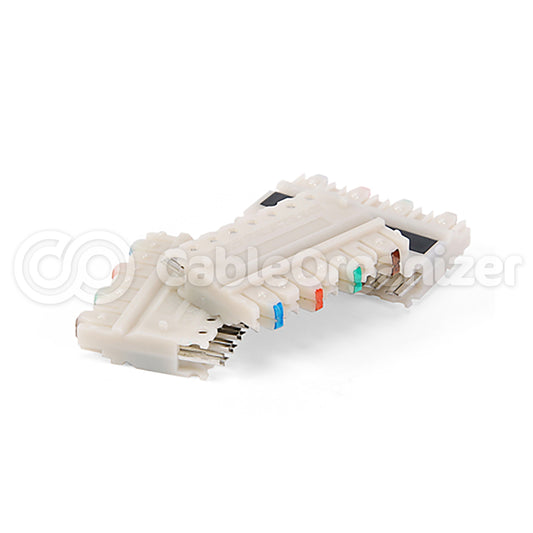

S110-AW2-5 IT-S110-AW2-5 5 pair, 110 block connector
Quantity : 10 per pack
- Per Pack
Qty:



66 Blocks

  PART # DESCRIPTION DIMENSIONS PRICE
S66M1-50 IT-S66M1-50 66 Block
Pair Capacity: 50, Quick Clip: 500. Center-to-center vertical spacing between rows of clips is 6.4mm (0.25 in.)
10" H x 4" W x 1" D
Qty:
S89D IT-S89D 66 Block Bracket S89D
Can mount two 25-pair connectors on each side and four on the back
10" H x 4" W x 1" D
Qty:
- IT-S89B 66 Block Bracket S89B
Can mount one 25-pair connector on each side
10" H x 4" W x 1" D
Qty:
- IT-MC4 66 Block Snap-on Cover
Protect S66 quick clips while providing a clear view of wiring
For use with
IT-S66M1-50
Qty:
