Flexo® Wrap

Tame Desktop Peripheral Chaos


FWN0.50-5FT
Qty:

What's special about this Flexo® Wrap PET cable sleeving?

  • Its flexibility makes it easy for wires, cables and hose assemblies to be organized to prevent tripping and other safety hazards.
  • Hook and Loop closure allows for easy access to cables at any point in the run.
  • The expandable, open-weave wrap makes it easier to store and bundle an abundance of cables of irregular shapes and sizes.
  • Click for More Features
  •
  • RoHS CompliantULCSA Approved

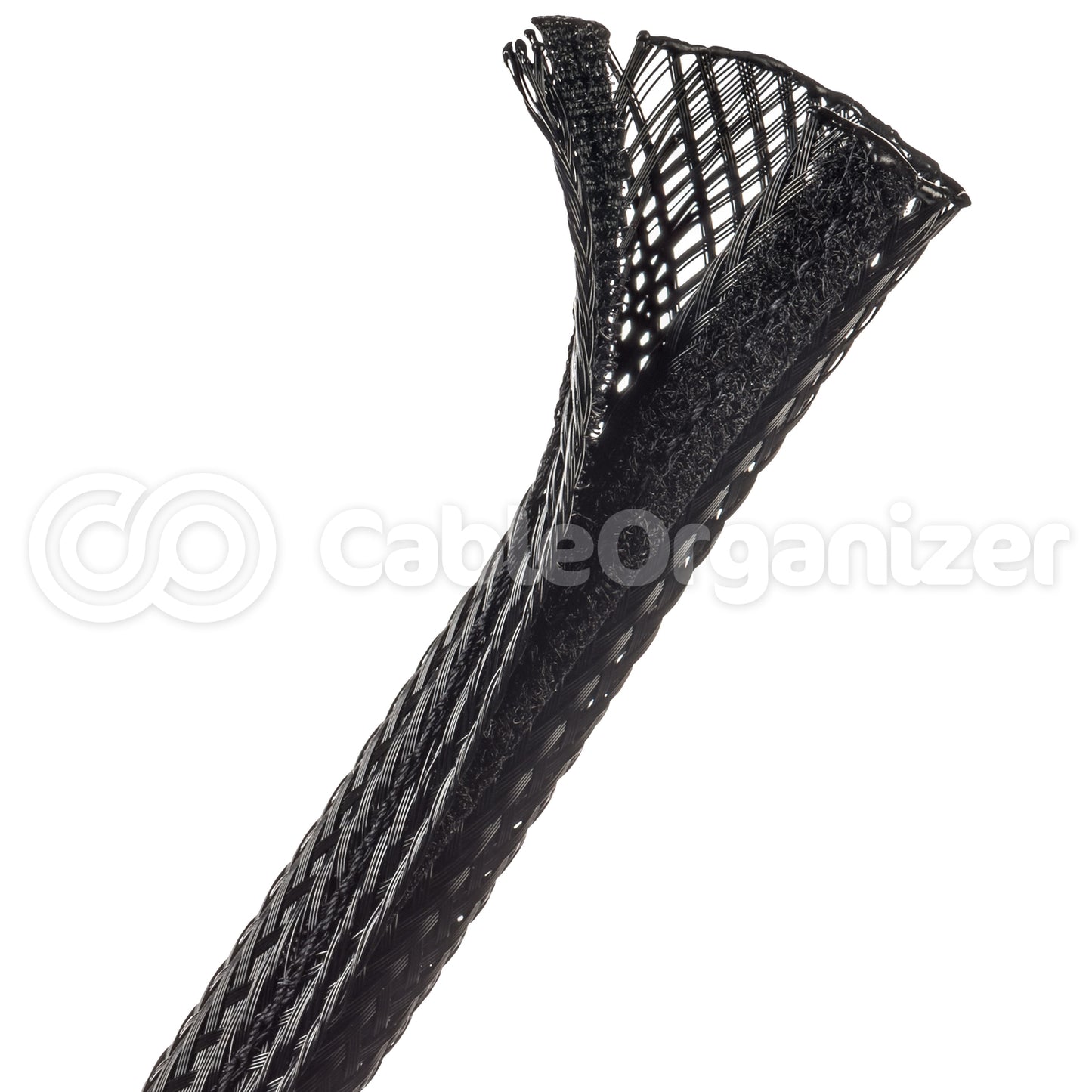

The side-split, braided cable wrap with hook and loop closure is a great feature for keeping peripheral cables and wires protected from damage caused by accidents, abrasions, or other safety hazards. The Velcro feature makes it very easy for the user to open at any point and easy to seal the sleeving tightly.

Must be cut with a Hot Knife or fraying will occur

Splice Free Spooling:
Some splices are normal during the braiding process. Usually, not more than one or two splices will be on any given spool. Ordering splice-free spools guarantees the maximum continuous yield on your spools. This option is suggested when ordering large lengths of sleeving or for important and precise projects. This treatment is most applicable in lengths that exceed 100 feet. In general, shorter lengths will be splice free as they come off the spools.

1/2" Diameter
Part # Nominal Size Expansion Price
FWN0.50-5FT 1/2" 2:1
Qty:
Quick Ship
FWN0.50-10FT 1/2" 2:1
Qty:
Quick Ship
FWN0.50-15FT 1/2" 2:1
Qty:
Quick Ship
FWN0.50-20FT 1/2" 2:1
Qty:
Quick Ship
FWN0.50-100FT 1/2" 2:1
Qty:
Quick Ship



3/4" Diameter
Part # Nominal Size Expansion Price
FWN0.75-5FT 3/4" 2:1
Qty:
Quick Ship
FWN0.75-10FT 3/4" 2:1
Qty:
Quick Ship
FWN0.75-15FT 3/4" 2:1
Qty:
Quick Ship
FWN0.75-20FT 3/4" 2:1
Qty:
Quick Ship
FWN0.75-100FT 3/4" 2:1
Qty:
Quick Ship



1 1/4" Diameter
Part # Nominal Size Expansion Price
FWN1.25-5FT 1 1/4" 2:1
Qty:
Quick Ship
FWN1.25-10FT 1 1/4" 2:1
Qty:
Quick Ship
FWN1.25-12FT 1 1/4" 2:1
Qty:
Quick Ship
FWN1.25-20FT 1 1/4" 2:1
Qty:
Quick Ship
FWN1.25-100FT 1 1/4" 2:1
Qty:
Quick Ship



2" Diameter
Part # Nominal Size Expansion Price
FWN2.00-5FT 2" 2:1
Qty:
Quick Ship
FWN2.00-10FT 2" 2:1
Qty:
Quick Ship
FWN2.00-20FT 2" 2:1
Qty:
Quick Ship
FWN2.00-100FT 2" 2:1
Qty:
Quick Ship
  • With the PET Wrap Braided Sleeving having an expansion ratio of 2:1, you can add many cables and wires without damaging them or worrying about the sleeving losing its desired shape
  • Its characteristically high resistance to moisture, UV light and harsh chemicals makes it an ideal accessory to be used in homes, offices, warehouses, garages, or basements
  • The braided sleeving retains its properties in extreme conditions protecting the cables and wires from damage
  • Can be cut quickly and easily with a bench mount hot knife to prevent the sleeving from fraying
  • Tested against the following standards: UL94, ASTM D-2117, MIL-I-23053, MIL-A-8243, MIL-H-5606, MIL-L7808, ASTM D792, ASTM-D2863
  •

    View Measurement Conversion Chart

    PHYSICAL PROPERTIES
    Monofilament Thickness (ASTM D-204) 0.01
    Flammability Rating UL-94
    Recommended Cutting Hot Knife
    Colors 35
    Wall Thickness 0.025
    Tensile Strength - Yarn (ASTM D-2265) lbs. 7.5
    Abrasion Resistance Medium
    Specific Gravity 1.38
    Moisture Absorption % (ASTM D-570) .1 - .2
    HARD VACUUM DATA (ASTM E-595 at 10-5 torr)
    TML 0.19
    CVCM 0
    WVR 0.16
    Smoke D-Max (ASTM E-662) 56
    Outgassing Medium
    Oxygen Index (ASTM D-2863) 21
    CHEMICAL RESISTANCE  1=No Effect   2=Little Effect   3=Affected
    Aromatic Solvents 2
    Chlorinated Solvents 3
    Strong Bases 2
    Hydraulic Fluid (MIL-H-5606) 1
    De-Icing Fluid (MIL-A-8243) 1
    Strong Oxidants 2
    UV Light 1
    Fungus (ASTM G-21) 1
    Alipahtic Solvents 1
    Weak Bases 1
    Salt Water (O-S-1926) 1
    Lubricating Oil (MIL-A-8243) 1
    Strong Acids 3
    Esters/Keytones 1
    Petroleum 1
    Salts 1
    Halogen Free Yes
    SVHC None
    RoHS Yes
    UL/CSA Yes
    Strength & Abrasion
    Tensile Strength PSI 85000
    Abrasion Resistance H
    Tenacity gms/denier 4.5
    Typical Elongation
    Specific Gravity 1.38
    Flammability
    Moisture Absorption 0.08
    Smoke D-Max 56
    Toxicity Index 4.2
    Outgassing
    Outgassing M
    Oxygen Index 21
    Specific Gravity g/cc 1.38
    Halogen Free True
    Temperatures
    Maximum 125° C 257°F
    Minimum -75°C -103°F
    Melt 230°C 446°F
