SignalTEK® II & II-FO Fiber Optic Qualification Testers

An Entire Arsenal of Fully Functional Network Testers in One Unit


ID-151051
Qty:
ID-150054
Qty:

What's special about these network cable qualifiers?

  • Tests fiber optic and copper cabling to IEEE 802.3ab and other Gigabit performance standards for use in commercial networks.
  • Performs several useful operations including pin/pair wire mapping, various performance tests, and ping testing, allowing you to replace several other testers.
  • Tests can be performed through switches and intermediary equipment, allowing full system diagnosis without having to disconnect components.
  • Ideal for qualifying any new fiber optic or copper cabling installation for use in VoIP, CCTV, Ethernet, and other high-bandwidth applications.
  • Click for More Features

The SignalTEK II™ Fiber Optic Qualification Tester by Trend® takes the growing portability, efficiency and advancement of the modern tester to the next level. This tester qualifies any fiber or copper cable to IEEE 802.3 standards and performs necessary network testing operations. Whether you need to qualify, wire map, test speed and performance, or even measure cable, the SignalTEK II has you covered.

NOTE: The SignalTEK II-FO Kit (Copper and Fiber) ID-R156001 has been discontinued, but you still can buy some accessories from us.

Power Modules
Part # Description Price

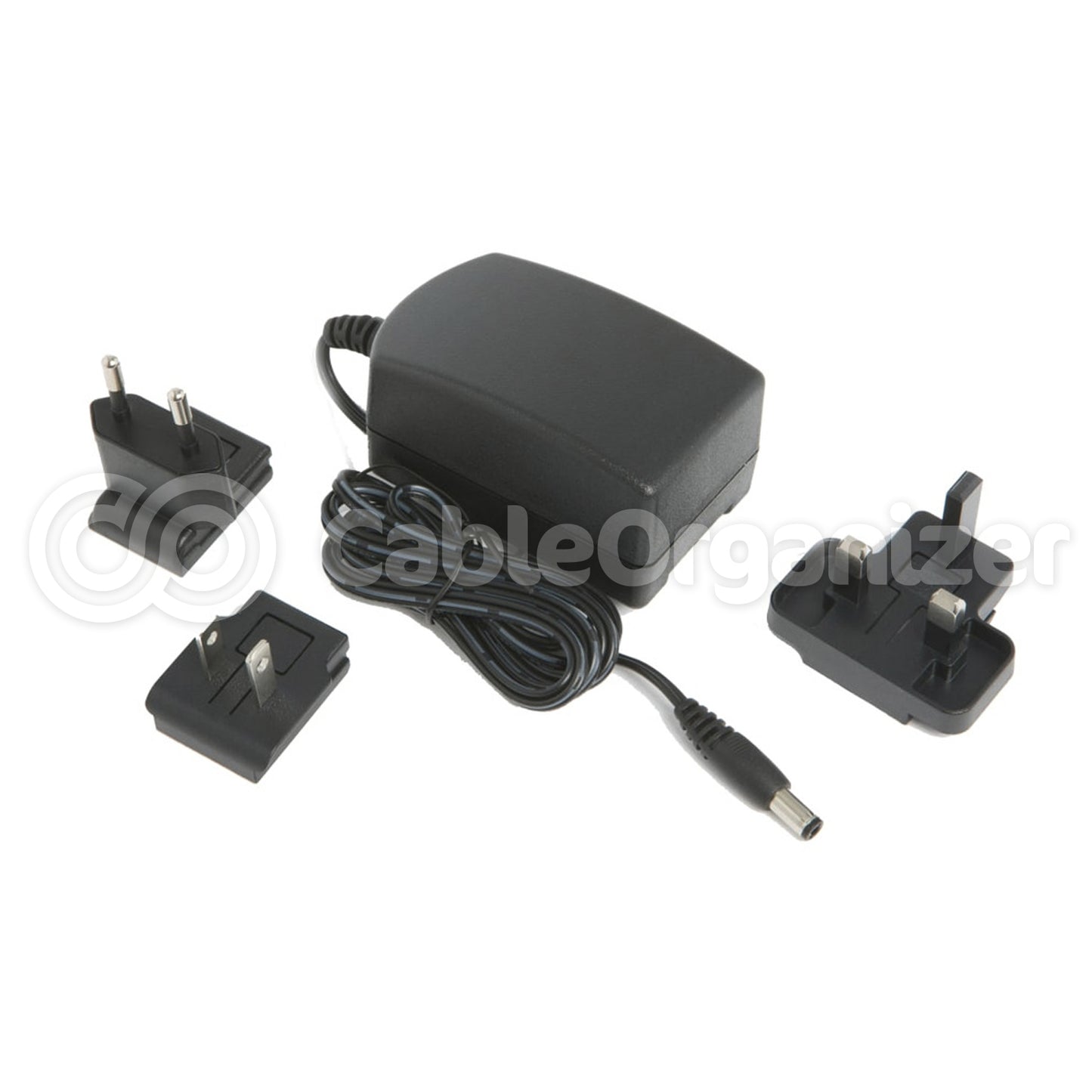

ID-151051 Power Supply with United States, Europe and United Kingdom Adapters
Qty:
Manufacturer Direct
ID-151052 Alkaline Battery Module
Qty:
Manufacturer Direct
ID-151053 NiMH Power Modules (rechargeable)
Qty:
Manufacturer Direct
Other Accessories
Part # Description Price
ID-150054 Remote #1
Qty:
Manufacturer Direct
ID-150050 Remotes #2 to #12
Qty:
Manufacturer Direct
ID-150058 RJ45 Inserts & Exchange Tool
Qty:
Quick Ship
ID-62-164 Amplifier Probe
Used in conjunction with the Tone Generator feature to trace cables
Qty:
Quick Ship
  • IPv6/POE+ compatibility makes this a future-proof investment
  • Generates extensive, detailed reports of job completion that can be exported for printing.
  • Auto-test function speeds the testing of common applications, reducing total network downtime.
  • 2.8” (7.1 cm) backlit LCD color screen clearly displays results in any lighting.
  • Both copper and fiber inserts are user-replaceable
  • Full molded rubber housing provides maximum durability for many years of use.
  • Other testing tasks include:
  • Wire Mapping (RJ45): Displays pairing configuration, pair length, termination condition, and delay skew (Gigabit only), and provides distance to fault.
  • Link Establishment: Displays the fastest Ethernet speed established (10/100/1000 Mbps)
  • Cable Performance: Determines packet size, total number of packets transmitted/received, number of errors, and a bar graph of each.
  • VOIP Performance: Same function as the Cable Performance testing, but uses smaller packets to simulate VoIP transmissions.
  • Web Performance: Tests the cables' performance under the payload of typical Internet packets
  • IP Video Performance: Tests the cables' performance under the payload of IP video applications
  • DHCP: Requests a UP address from the server
  • Ping: allows you to choose the packet size, number of packets, and delay between packets
  •

    Contents:

  • (1) Near-End Handset (Copper and Fiber)
  • (1) Remote unit (Copper and Fiber)
  • (2) Power module (rechargeable)
  • (2) Main PSU/charger
  • (2) 1ft (30.48 cm) RJ45 Cable
  • (1) Quick reference guide (English)
  • (1) User manual CD
  • (1) Carrying case
  •

    Comparison Charts:

  • Ideal Product Comparison Chart (PDF) PDF
  • SignalTEK Competitor Comparison Chart (PDF) PDF
  •

    Ports / Connections
    RJ-45 Port (Shielded) 10/100/1000Mbps Ethernet
    SFP (Small Form-factor Pluggable) Accepts 850nm and1310nm modules
    Others USB A/B
    DC Power input

    SFP-8500-0850nm Module
    Laser Class 1 Laser EN60825-1
    Compatible Fiber Types 50/125 µm or 62.5/125 µm graded index multimode fiber
    Power Output -9.5 min, -3 max dBm
    Receiver Power Range 0 to -20 dBm
    Max Link Length 550m (1800ft) on 50/125 µm fiber; 300m (985ft) on 62.5/125 µm fiber
    Operating Temperature -10 to 85°C (14 to 185°F)
    Relative Humidity 85% non-condensing

    SFP-13X0 - 1300nm Module
    Laser Class 1 Laser EN60825-1
    Compatible Fiber Types 50/125 µm or 62.5/125 µm graded index multimode fiber and 9/125mm step index single mode fiber
    Power Output -9.5 min, -2.5 max dBm
    Receiver Power Range 0 to -22 dBm
    Max Link Length 550m (1800ft) on 50/125 µm fiber; 300m (985ft) on 62.5/125 µm fiber; 10km (6.2mi) on 9/125 µm fiber
    Operating Temperature -10 to 85°C (14 to 185°F)
    Relative Humidity 85% non-condensing

    Length Measurement
    RJ-45 Port TDR (Time Domain Reflectometer) length measurement of 1-4 pair cables to 140m/460ft
    SFP Port No length measurement of fiber optic cables

    Best Error Rate Measurements
    Copper 10/100/1000Mbps. Error rates tested to IEEE 802.3ab standard
    Fiber 1000Mbps. Error rates tested to IEEE 802.3ab standard

    Battery Life
    Copper Testing Approx 15 hours @ 22 tests per hour (45s Autotest)
    Fiber Testing Recommend use of AC adapters when testing fiber

    Dimensions (Kit)
    Length 18.5" [46,99 cm]
    Width 12.5" [31,75 cm]
    Depth 4.5" [11,43 cm]
