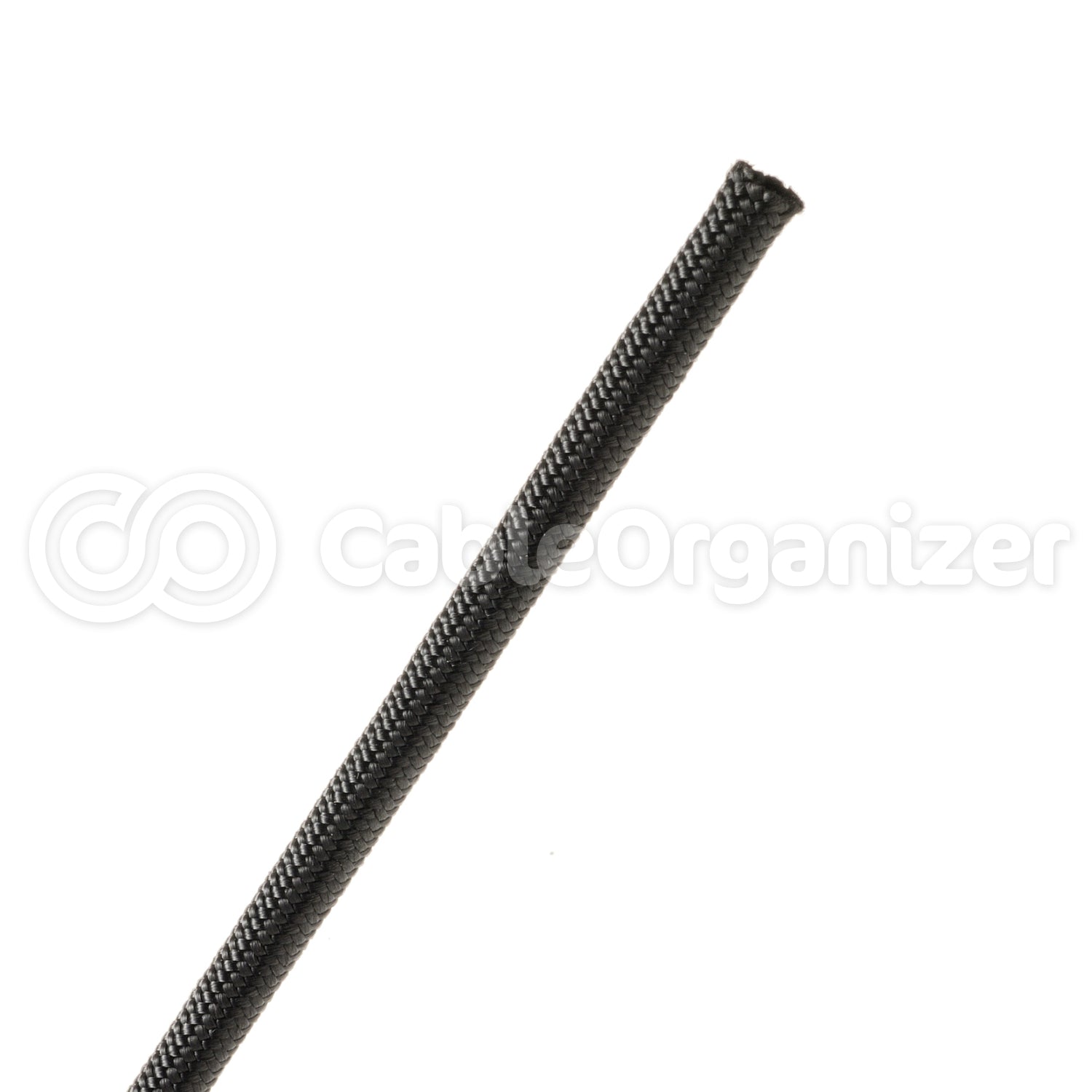

Nylon® Multifilament Braided Sleeving

Full Coverage, Soft, Supple, Strong and Attractive

nylon multifilament sleeving

Close Window

Nylon® Multifilament Braided Sleeving

    Videos
  • benefits and features of using nylon multifilament sleeving - icon

    Additional Images
  • close up of nylon multifilament braided sleeving - icon
  • picture of a military tank - icon
  • close up of nylon multifilament braided sleeving in use on wire assembly - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2014 CableOrganizer.com

UL Recognized Component       CSARoHS Compliant

Low Price GuaranteeWhat's special about Nylon® Multifilament?

  • Lightweight and flexible, yet cuts easily with Hot Knife or scissor
  • Resists automotive fluids and offers excellent abrasion resistance
  • GSA approvedSoft and pliable
  • Click for More Features
Scroll To Pricing

NM's fabric-like softness and flexibility hide surprisingly tough specifications. The high coverage sleeving meets or exceeds military specifications MIL-I-47203(MI) and MIL-S-47053(MI). Nylon Multifilament is highly resistant to abrasion, cuts, common automotive and marine chemicals, UV damage and vibration. It will not rot or retain moisture.

Please Note: Nylon Multifilament is NOT expandable. Please see our Nylon Monofilament for an expandable nylon braided sleeving.

Under the hood or across the floor, Nylon® Multifilament (NM) is the perfect sleeving product for protecting and improving the appearance of wires and cables. NM has been used in military wire harness applications for many years.

The wide operating temperature range allows NM to protect delicate wiring in engine compartments and near exhaust systems.

  • UV resistant
  • Operating Temp. -49°F to 248°F
  • Melt Temp. 250°C / 482°F
  • Excellent for sound and rattle control
  • Compliant with European Union's Restrictions on the use of Hazardous Substances (RoHS) Directive



Click here for Specialty Technical Data Sheet on Nylon Multifilament (PDF) PDF

View Measurement Conversion Chart

Abrasion
Abrasion Resistance (ASTM D-4157) Extremely High
Abrasion Test Machine Taber 5150
Abrasion Test Wheel Calibrase H-18
Abrasion Test Load 500g
Room Temperature 70°F
Humidity 58%
Much Pulling Of Fibers - Very Visible Wear 20 Test Cycles
Wear Pattern Continues 400 Test Cycles
Wear Pattern Continues 900 Test Cycles
Wear Pattern Continues 1,400 Test Cycles
Hole Completely Through Material Destroyed 3,200 Test Cycles
Pre-Test Weight 11,759.5 mg
Post-Test Weight 10,990.2 mg
Test End Loss Of Mass Point Of Destruction 769.3 mg

Flammability
Rating N/A
Moisture Absorption (%) 1.5
Smoke D-Max (ASTM E-662)
Toxicity Index (USN 713)

Chemical Resistance
Aromatic Solvents No Effect
Aliphatic Solvents No Effect
Chlorinated Solvents No Effect
Weak Bases No Effect
Salts No Effect
Strong Bases Little Effect
Salt Water (O-S-1926) No Effect
Hydraulic Fluid (MIL-H-5606) No Effect
Lube Oil (MIL-L-7808) No Effect
De-Icing Fluid (MIL-A-8243) No Effect
Strong Acids Severely Affected
Strong Oxidants Severely Affected
Esters / Keytones Little Effect
UV Light Little Effect
Petroleum Little Effect
Fungus (ASTM D-2863) Affected
Outgassing High
Oxygen Index (ASTM D-2863) 22
Halogon Free Yes

Operating Temperatures
Melt Point (ASTM D-2117) 250°C (482°F)
Maximum Continuous (MIL-I-23053) 120°C (248°F)
Minimum Continuous -45°C (-49°F)

Physical Properties
Multifilament Thickness N/A
Recommended Cutting Scissors
Stock Colors 1
Wall Thickness .03
Tensile Strength PSI (ASTM D-2256) 75,000
Specific Gravity (ASTM D-792) 1.14
Military Specifications Meets or Exceeds AA-59301
Tenacity (GM/Denier) (ASTM D-4157)
Typical Elongation (ASTM D-2256-80)
Break
3g / Denier
Hard Vacuum Data (ASTM E-595) at 10-5 torr
TML
CVCM
WVR

MINISPOOLS
Only Black

Splicing may occur during the production of this sleeving. Two or three lengths may create a full spool.
Continuous lengths are available in most sizes at an additional 10% surcharge. Please specify if you require continuous lengths. -

PART # NOMNAL SIZE SPOOL LENGTH PRICE
MSNYMF0125 1/8" 225'
Qty:
MSNYMF01875 3/16" 200'
Qty:
MSNYMF025 1/4" 200'
Qty:
MSNYMF0312 5/16" 125'
Qty:
MSNYMF0375 3/8" 125'
Qty:
MSNYMF050 1/2" 100'
Qty:
MSNYMF0625 5/8" 75'
Qty:
MSNYMF075 3/4" 75'
Qty:
MSNYMF0875 7/8" 50'
Qty:
MSNYMF100 1" 50'
Qty:
MSNYMF125 1-1/4" 50'
Qty:
MSNYMF150 1-1/2" 50'
Qty:
MSNYMF200 2" 50'
Qty:



BULK
Only Black

Splicing may occur during the production of this sleeving. Two or three lengths may create a full spool.
Continuous lengths are available in most sizes at an additional 10% surcharge. Please specify if you require continuous lengths.

PART # NOMINAL SIZE SPOOL LENGTH PRICE
BSNYMF0125 1/8" 1,000'
Qty:
BSNYMF01875 3/16" 1,000'
Qty:
BSNYMF025 1/4" 500'
Qty:
BSNYMF0312 5/16" 500'
Qty:
BSNYMF0375 3/8" 500'
Qty:
BSNYMF050 1/2" 250'
Qty:
BSNYMF0625 5/8" 250'
Qty:
BSNYMF075 3/4" 250'
Qty:
BSNYMF0875 7/8" 200'
Qty:
BSNYMF100 1" 200'
Qty:
BSNYMF125 1-1/4" 125'
Qty:
BSNYMF150 1-1/2" 100'
Qty:
BSNYMF200 2" 100'
Qty:
