Diamondback® Multiple Channel Module Cable Hose Bridge Systems

Ensure Vehicle Access While Maintaining the Integrity of Your Hoses and Pipes

Low Price Guarantee

CP-UHB-2025T

What's special about this modular bridge system?

  • Create a customized bridge system for single or multiple hoses, pipes, or ducts, allowing heavy vehicles to safely drive over
  • With tunnels from 3" (76mm) to 7" (178mm); even the largest conduit can be protected from crushing
  • Manufactured of Polyurethane to ensure maximum load-bearing capability
  • Lightweight and easy to set up, disassemble, and transport, these heavy duty cord covers are the perfect addition to construction sites, fire departments or municipalities
  • Click for More Features

Provide safe passage for heavy, rubber-wheeled vehicles with the Checkers Diamondback® Cable and Hose Bridge System. Available from 3" to 7" diameters to protect cables and hoses at concerts, fairs or sporting events. The lightweight, interlocking design is easy to set up, breakdown, store and transport.

Images

PART # DESCRIPTION MAX. LOAD PER TIRE 75°F (23.9°C) WEIGHT PRICE
3" Bridge System (Tunnel Diameter 3.0")
CP-UHB-2025T Tunnel Only for up to 3 inch Lines 23,700 lbs (10,750 kg) 15 lbs. (6.8 kg)
Qty:
CP-UHB-2025R Ramps Only (pair) for 3 inch Tunnel 23,700 lbs (10,750 kg)  18 lbs. (8.2 kg)
Qty:
CP-UHB-2025TC Tunnel Connector Only for 3 inch Tunnel 23,700 lbs (10,750 kg) 11 lbs. (5.0 kg)
Qty:

3.5" Bridge System (Tunnel Diameter 3.5")
CP-UHB-3035T Tunnel Only for up to 3.5 inch Lines 19,800 lbs (8,981 kg) 17 lbs. (7.7 kg)
Qty:
CP-UHB-3035R Ramps Only (pair) for 3.5 inch Tunnel 19,800 lbs (8,981 kg) 22 lbs. (10.0 kg)
Qty:
CP-UHB-3035TC Tunnel Connector Only for 3.5 inch Tunnel 19,800 lbs (8,981 kg) 16 lbs. (7.3 kg)
Qty:

4.5" Bridge System (Tunnel Diameter 4.5")
CP-UHB-4045T Tunnel Only for up to 4.5 inch Lines 19,300 lbs (8,754 kg) 21 lbs. (9.5 kg)
Qty:
CP-UHB-4045R Ramps Only (pair) for 4.5 inch Tunnel 19,300 lbs (8,754 kg) 30 lbs. (13.6 kg)
Qty:
CP-UHB-4045TC Tunnel Connector Only for 4.5 inch Tunnel 19,300 lbs (8,754 kg) 21 lbs. (9.5 kg)
Qty:

6.5" Bridge System (Tunnel Diameter 7.0")
CP-UHB-5060T Tunnel Only for up to 6.5 inch Lines 17,100 lbs (7,757 kg) 32 lbs. (14.5 kg)
Qty:
CP-UHB-5060R Ramps Only (pair) for 6.5 inch Tunnel 17,100 lbs (7,757 kg) 58 lbs. (26.3 kg)
Qty:
CP-UHB-5060TC Tunnel Connector Only for 6.5 inch Tunnel 17,100 lbs (7,757 kg) 26 lbs. (11.8 kg)
Qty:
  • Abrasion, impact and weather resistant, to provide years of use and save money on replacements
  • Interlocking design prevents separation, even under extreme weight
  • Diamond plate tread surface for increased traction, even in wet conditions
  • Bright yellow color makes the bridge easy to see



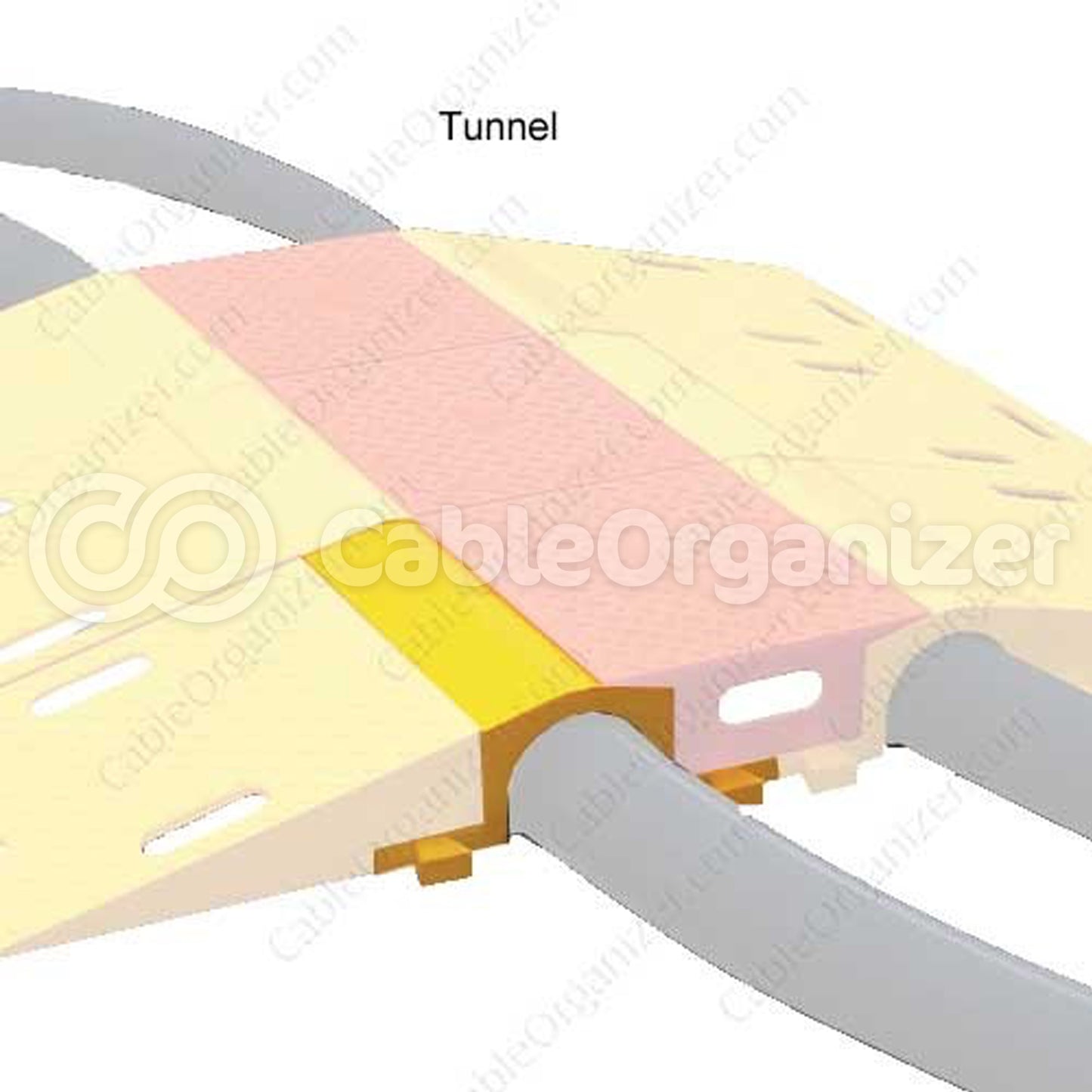

Multiple Hose Bridge Drawing

Part # Description Dimensions Color Price
A - Length B - Width C - Height
CP-UHB-2025T Tunnel Only for up to 3 inch Lines 5.38" (139 mm)  16" (406 mm) 3.88" (99 mm) Yellow
Qty:
CP-UHB-2025R Ramps Only (pair) for 3 inch Tunnel 14.75 in (377 mm) 16" (406 mm) 3.88" (99 mm) Yellow
Qty:
CP-UHB-2025TC Tunnel Connector Only for 3 inch Tunnel 7.88 in (201 mm 16" (406 mm) 3.88" (99 mm) Orange
Qty:

CP-UHB-3035T Tunnel Only for up to 3.5 inch Lines 6.5" (166 mm)  16" (406 mm) 4.63" (118 mm)  Yellow
Qty:
CP-UHB-3035R Ramps Only (pair) for 3.5 inch Tunnel 16 in (406 mm) 16" (406 mm) 4.63" (118 mm)  Yellow
Qty:
CP-UHB-3035TC Tunnel Connector Only for 3.5 inch Tunnel 7.88" (201 mm) 16" (406 mm) 4.63" (118 mm)  Orange
Qty:

CP-UHB-4045T Tunnel Only for up to 4.5 inch Lines 7.75" (198 mm)  16" (406 mm) 5.5" (118 mm)  Yellow
Qty:
CP-UHB-4045R Ramps Only (pair) for 4.5 inch Tunnel 18.25" (466 mm) 16" (406 mm) 5.5" (118 mm)  Yellow
Qty:
CP-UHB-4045TC Tunnel Connector Only for 4.5 inch Tunnel 7.88" (201 mm) 16" (406 mm) 5.5" (118 mm)  Orange
Qty:

CP-UHB-5060T Tunnel Only for up to 6.5 inch Lines 9.13" (233 mm)  16" (406 mm) 8.13" (208 mm) Yellow
Qty:
CP-UHB-5060R Ramps Only (pair) for 6.5 inch Tunnel 25.5" (651 mm)  16" (406 mm) 8.13" (208 mm) Yellow
Qty:
CP-UHB-5060TC Tunnel Connector Only for 6.5 inch Tunnel 7.88" (201 mm)  16" (406 mm) 8.13" (208 mm) Orange
Qty:

MANUALS & USER GUIDES -



RELATED ARTICLES -



HOW-TO CORNER -



VIEW OUR GLOSSARY



Modular Hose Bridge SystemSingle Tunnel Hose Bridge System
From
Modular Hose Bridge Systems provide protection for valuable hose lines while ensuring a method of safe passage for vehicles. High density, all weather urethane construction protects hose lines from damage by physical pressure.

The Hawk"The Hawk" Heavy Duty
From
An optional glow-in-the dark-lid makes this economical low-profile cable protector the ideal shield to safeguard cords and hoses from heavy-duty vehicle and pedestrian traffic - even when the lights go out.



Linebacker GP-1 Cord ProtectorLinebacker® GP-1 Cord Protector
From
The Linebacker® GP-1 is a one channel cord and hose protection system. If you are looking for a more affordable version of the GP-5, the GP-1 is the cord cover for you. The single channel systems protect valuable electrical cables and hose lines from vehicle and foot traffic. 21,000 lb. load capacity per axle.

Yellow Jacket AMSYellow Jacket® AMS
From
Designed to change and grow with your needs, the Yellow Jacket® Advanced Modular System offers a variety of cable protector sections that can be added and removed to create customized protection for an unlimited number of cables.
