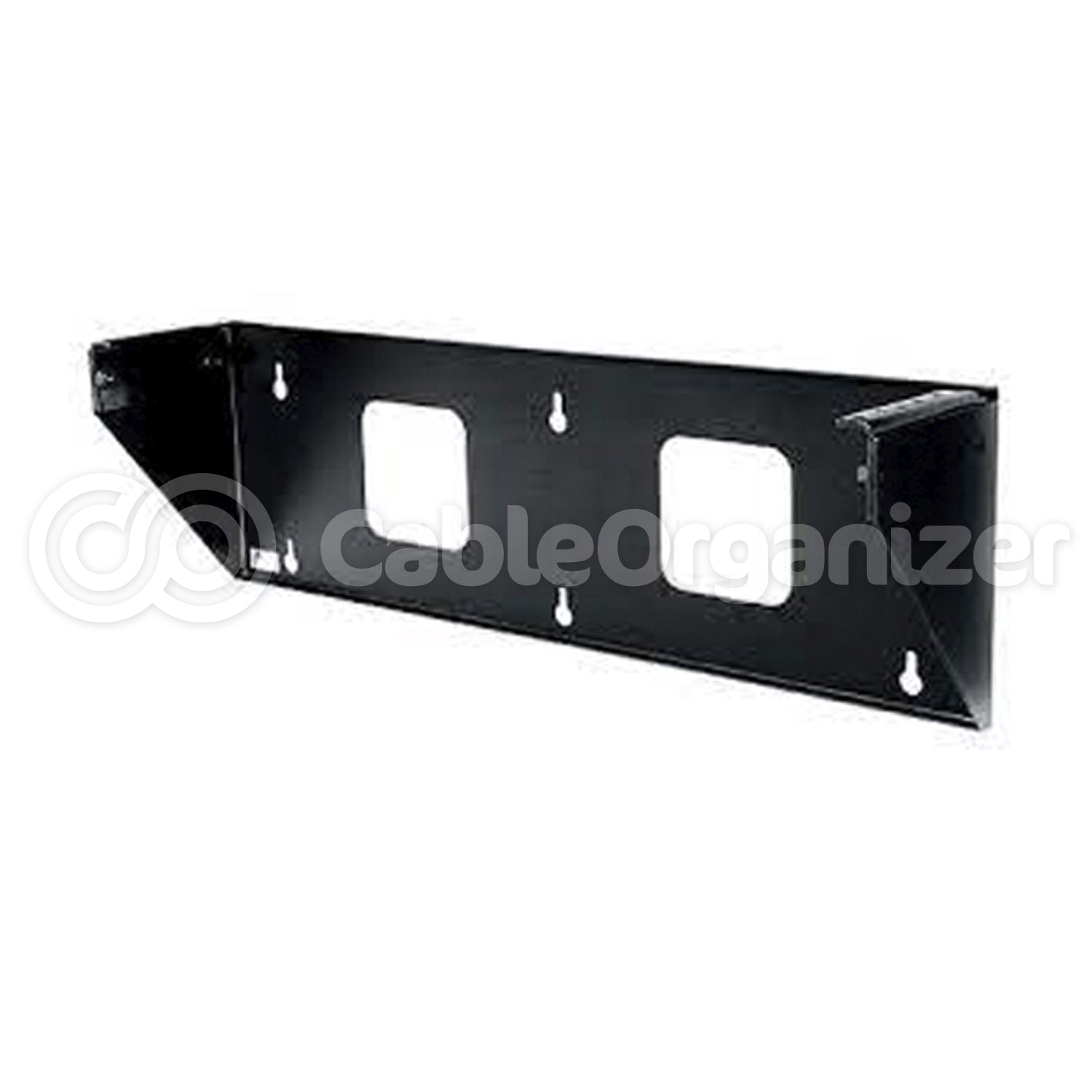

Middle Atlantic Vertical Wall Mount Rack

Make the Most of Available Space in Your Data Center

Low Price Guarantee

MA-VPM-2

What's special about this vertical wall mount rack?

  • Allows you to mount up to 4U of standard 19” rack equipment on any wall
  • Vertical orientation lets you mount equipment of any depth
  • Open design provides easy access to network components for easier monitoring and maintenance
  • 200 lb weight capacity ensures safe mounting for all modern network components
  • Click for More Features

It would not be very space-efficient to purchase a new full rack to mount 4U of components, and thankfully, you don't have to. The Vertical Panel Mount rack by Middle Atlantic® takes the least used space in a server or computer room, the wall, and converts it into an accessible, reliable housing for a few network components. The unit uses screw-slot mounting for easy installation and safely supports up to 200 lbs, ensuring a secure fit for your modern network components.

Images

PART # DESCRIPTION LOAD CAPACITY WEIGHT PRICE
MA-VPM-2 Vertical Panel Mount, 2RU 200 lbs [90,7 kg] 3.0 lbs [1,36 kg]
Qty:
MA-VPM-3 Vertical Panel Mount, 3RU 200 lbs [90,7 kg] 5.5 lbs [2,49 kg]
Qty:
MA-VPM-4 Vertical Panel Mount, 4RU 200 lbs [90,7 kg] 7.9 lbs [3,58 kg]
Qty:
  • Black powder coat finish resists corrosion and is sure to match most other network components
  • Ideal for mounting auxiliary rack equipment, including DVRs, power supplies, switches, patch panels, and more
  • Cold rolled steel construction provides great durability
  • Proudly made in the USA Made in the USA



Part # MA-VPM-2 MA-VPM-3 MA-VPM-4
Price
Qty:
Qty:
Qty:
Rack Spaces 2 3 4
Load Capacity 200 lbs [90,7 kg] 200 lbs [90,7 kg] 200 lbs [90,7 kg]
Dimensions 19" W x 3.5" D
[48,26cm x 8,89cm]
19" W x 5.25" D
[48,26cm x 13,33cm]
19" W x 7" D
[48,26cm x 17,78cm]
Weight 3.0 lbs [1,36 kg] 5.5 lbs [2,49 kg] 7.9 lbs [3,58 kg]
Industry Standards EIA/TIA Compliant EIA/TIA Compliant EIA/TIA Compliant
Finish Black Powder Coat Black Powder Coat Black Powder Coat
Material Cold-Rolled Steel Cold-Rolled Steel Cold-Rolled Steel

No Manuals Avaiable
