Middle Atlantic PPM Pivoting Panel Mounts

Easily Accessible Wall Mount Racks for Quick and Easy Terminations

Pivoting Panel Mount

Close Window

Middle Atlantic PPM Pivoting Panel Mounts

    Additional Images
  • Raceway - icon
  • Home theater - icon
  • Installation - icon
  •  - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2014 CableOrganizer.com

RoHS Compliant Greenguard Certified

Low Price GuaranteeWhat's special about these wall-mountable hinged racks?

  • Pivoting front panel provides convenient rear access to equipment and hardware for faster installation, maintenance, and cable management
  • Innovative "positive stop" allows the front panel to fully be open at a 90° angle, which facilitates punchdown-style terminations to reduce the amount of time it takes to install and wire each patch panel
  • Optional solid top and front cover are available for enhanced security, to protect equipment from unwanted access or tampering
  • Click for More Features

Middle Atlantic Pivoting Panel Mount Racks offer residential and commercial network installers a compact, wall mountable solution for areas where space is at a premium. These wallmount racks are available in sizes ranging from 2 RU to 8 RU, and feature a convenient hinged front panel, which opens up to a sturdy 90° angle to support punching down and easy access.

  • Backless design available for easy installation over wall obstructions such as cable raceway, wire duct, and conduit
  • Abundant cable tie-down points provides for clean and organized wire management
  • EIA compliant rack rails for easy installation of industry-standard patch panels, cable management provisions, and hardware
  • Strong steel construction is finished in a durable black powder coat for lasting quality and dependability
  • 10-32 rack screws and hook/loop fasters included
  • GREENGUARD Indoor Air Quality Certified for use in schools or other environments with children
  • RoHS compliant
  • Made in the USA Made in the USA



Part # Overall Height Useable Height Depth Back Pan Opening Height Mounting Hole Distance Minimum Wall Clearance Load Capacity Weight

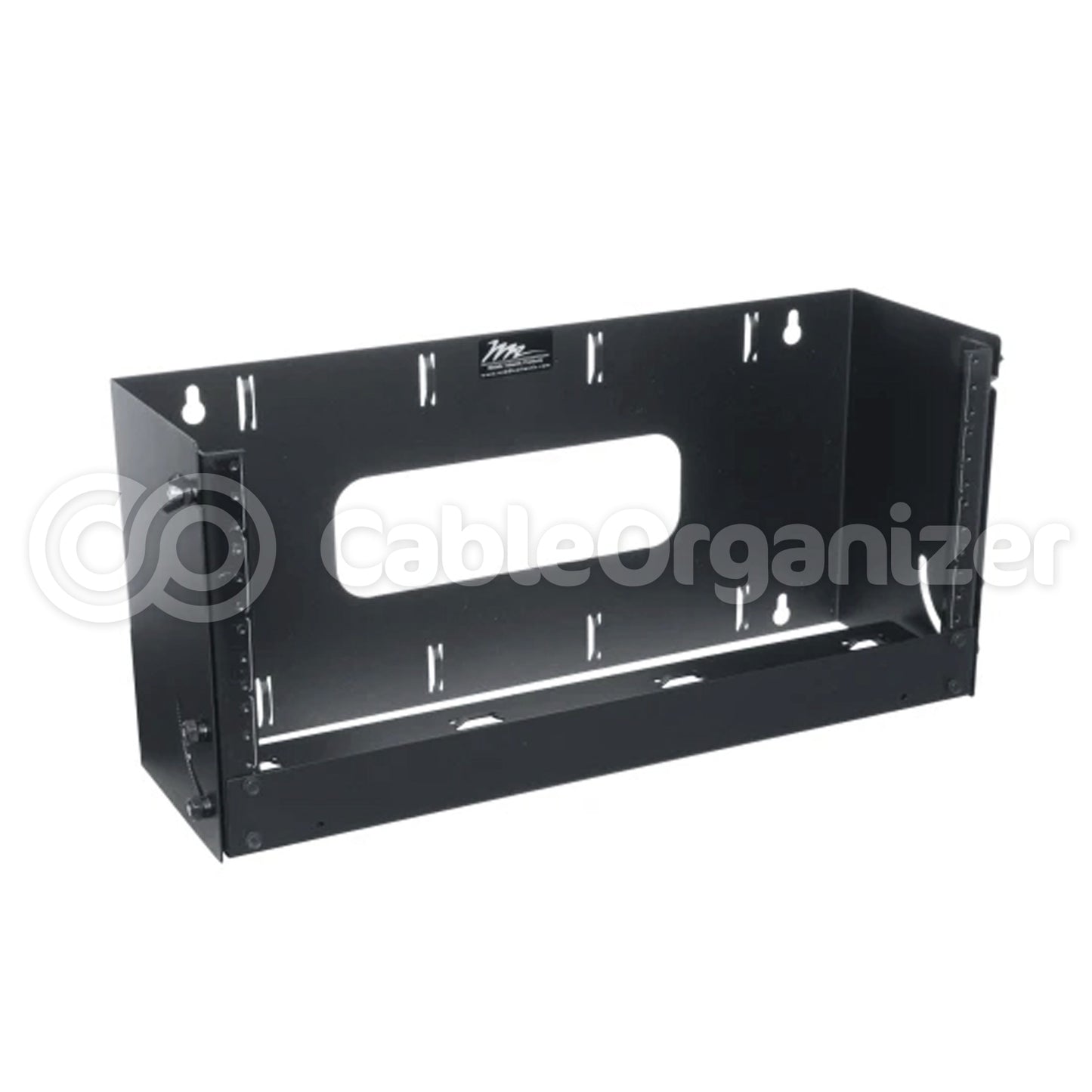

QMA-PPM-2 5.75" 3.50" / 2 RMS 6" 1.71" 4.25" 8" 20 lbs 7.56 lbs
QMA-PPM-4 9.25" 7.00" / 4 RMS 6" 3.00" 7.75" 11.5" 30 lbs 10.43 lbs
QMA-PPM-6 12.75" 10.5" / 6 RMS 6" 6.25" 11.25" 15" 30 lbs 11.59 lbs
QMA-PPM-6-12 12.75" 10.5" / 6 RMS 12" 6.37" 6.12" 21" 40 lbs 18.95 lbs
QMA-PPM-6-16-OB 12.75" 10.5" / 6 RMS 16" - 6.12" 25" 60 lbs 20.0 lbs
QMA-PPM-8-12 16.25" 14.0" / 8 RMS 12" 9.87" 9.62" 24.5" 60 lbs 20.68 lbs
QMA-PPM-8-18 16.25" 14.0" / 8 RMS 18" 9.87" 9.62" 30.5" 60 lbs 25.60 lbs



Rack Thickness 16-gauge steel
Rail Thickness 11-gauge steel





NOTE: Cable management and patch panels are NOT included

PART # U/ RMS DESCRIPTION DIMENSIONS LOAD CAPACITY WEIGHT PRICE
QMA-PPM-2 2U Pivoting Panel Mount 5-3/4" H x 6" D 20 lbs 7.6 lbs
Qty:
QMA-PPM-4 4U Pivoting Panel Mount 9-1/4" H x 6" D 30 lbs 10.4 lbs
Qty:
QMA-PPM-6 6U Pivoting Panel Mount 12-3/4"H x 6" D 30 lbs 11.6 lbs
Qty:
QMA-PPM-6-12 6U Pivoting Panel Mount 12-3/4" H x 12" D 40 lbs 19.0 lbs
Qty:
QMA-PPM-6-16-OB 6U Backless Pivoting Panel Mount 12-3/4" H x 16" D 60 lbs 20.0 lbs
Qty:
QMA-PPM-8-12 8U Pivoting Panel Mount 16-1/4" H x 12" D 60 lbs 20.7 lbs
Qty:
QMA-PPM-8-18 8U Pivoting Panel Mount 16-1/4" H x 18" D 60 lbs 20.7 lbs
Qty:
Security Kits
QMA-PPM-8-12K 8U QMA-PPM-8-12 plus
Top Cover and Front Door
16-1/4" H x 12" D 60 lbs 33 lbs
Qty:



Optional Accessories

Doors and top covers are available separately for retrofitting existing systems that require added security.

Click image for larger view PART # DESCRIPTION WEIGHT PRICE
wall mount rack QMA-PPM-LID12 Top Cover. Fits 12" D 7.6 lbs
Qty:
QMA-PPM-LID18 Top Cover. Fits 18" D 10.4 lbs
Qty:

QMA-PPM-D06 Lift Door Cover. Fits PPM 6U 6"D 11.6 lbs
Qty:
QMA-PPM-D08 Lift Door Cover. Fits PPM 8U 19 lbs
Qty:
Note: To use door, the top cover option is required



Cable Management Options

PART #
Click to view item
DESCRIPTION RMS/U PANEL WIDTH CABLE RINGS
FILL AREA
WEIGHT QTY. PRICE
MA-HCM-1D D-Ring Style 1 19 inch 3-1/8 sq. in. 2.1 lbs 1
Qty:
MA-HHCM-1 Hinged Horizontal
Cable Manager
1 19 inch 1.75 inch 2.9 lbs 1
Qty:

computer workbenchKendall Howard Computer WorkBench
From
Available in 4 widths, these modular computer workstations let you custom-configure the ideal workspace, and feature upper shelves that can adjust in any increment.

DP10-PFP from FURMANFurman Sound D10-PFP Power Distributor
From
This economical power distribution unit allows you to plug in up to 10 rack mounted devices, and will automatically shut down if overloaded, to prevent overheating and fire.



Q-NP2Neat Patch - Patch Cable Management
From
Ensure that your patch panels professional looking and perfectly traceable with the Neat-Patch, which lets you dress and cover patch cords right in the server rack.

Panduit Patch PanelsDP5e™ and DP6™ PLUS Patch Panels - Panduit®
From
Ideal for Gigabit Ethernet and Phone Systems, these Cat5e and Cat6 patch panels are equipped with pre-tested ports that have write-on labels for easy identification.
