Overhead IDF Intermediate Distribution Rack



Low Price Guarantee

MA-IDF-TM-1224BK



MA-IDF-ARB-24

What's special about this overhead rack?

  • Mounts overhead, directly onto uni-strut beams or can also be suspended from trusses using 1/2" threaded rods (not included)
  • Factory installed solid locking and latched front and rear doors and lift-off stop to prevent accidental removal of chains for a secure installation
  • Bottom of enclosure contains a removable aluminum 17-1/2" x 8" plate with multiple knockouts that can be machined in the field to accommodate UHF/VHF antennas, dome cameras and other equipment
  • Click for More Features

The ready-to-install 19" IDF Intermediate Distribution Rack that will rack mount hubs, routers and other equipment overhead to uni-strut beams in warehouses, retail stores, and any other large open area locations (thread rods not included), is EIA/TIA compliant, UL listed, and cUL listed. This rack ships complete with two 55 CFM exhaust fans with fan guards at the top to remove heated air and keep your equipment running cool, and a nine 15-amp power distribution unit.
View Enclosure GUIDE Based on Venue & Application

Images

PART # DESCRIPTION OVERALL
DIMENSIONS
WEIGHT PRICE

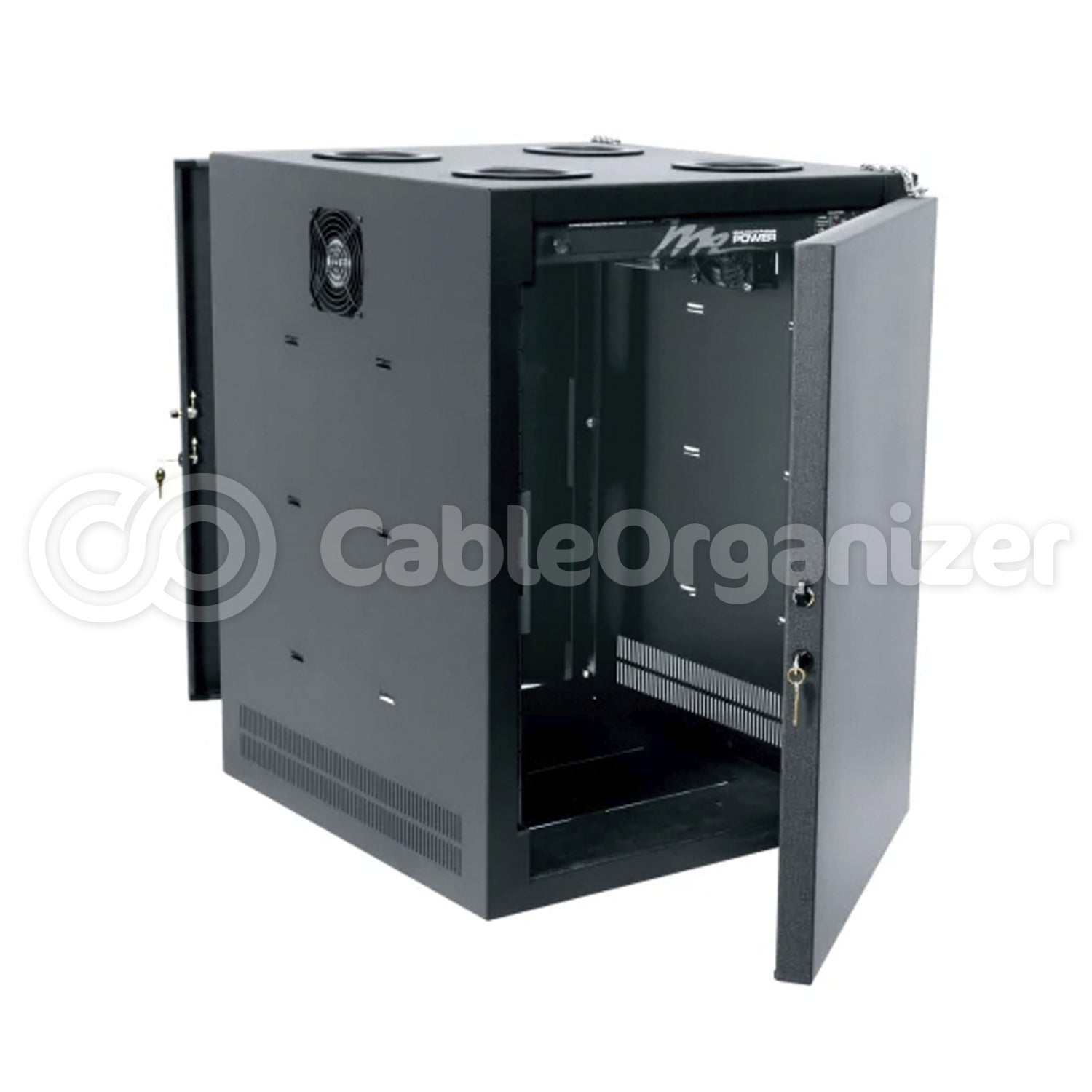

MA-IDF-TM-1224BK 12U IDF Intermediate Distribution Rack 24.13" H x 23.52" W x 28.73" D 67 lbs
Qty:
MA-IDF-TM-1624BK 16U IDF Intermediate Distribution Rack 31.13" H x 23.52" W x 28.73" D 71 lbs
Qty:

MA-IDF-ARB-24 Rail Bracket Extender
Converts IDF Rack to full front-to-rear adjustable rackrail
-- 2 lbs
Qty:
  • Available in 12U (21") and 16U (28")
  • 24" Deep and fits equipment with 21" useable space
  • Welded 16-gauge steel sides, along with 18-gauge door and 11-gauge rails, allow for a sturdy weight capacity of 150 lbs
  • Mounts overhead, directly onto uni-strut beams. Can also be suspended from trusses using 1/2" threaded rods (not included)
  • Factory installed solid locking and latched front and rear doors and lift-off stop to prevent accidental removal of chains for a secure installation
  • Safety lanyard included to ensure a safe installation
  • Two 55 CFM exhaust fans installed on the top
  • Bottom of enclosure contains a removable aluminum 17-1/2" x 8" plate with multiple knockouts that can be machined in the field to accommodate UHF/VHF antennas, dome cameras and other equipment
  • EIA/TIA Compliant 19" and UL Listed in the USA and Canada
  • With the grounding/bonding stub in the top of the enclosure, proper grounding and bonding of your electrical equipment per NEBS and NEC standards is simplified
  • Side knockouts for conduit pass-through to the internal standard 1900 electrical box, located at the top of the enclosure
  • Includes a Middle Atlantic rack mount power distribution unit with nine 15-amp outlets (MA-PD-915R)
  • 4 integral gland grommets are built into the enclosure top to protect cables and reduce dust inside the enclosure
  • Black Textured power coat finish
  • Lifetime warranty from Middle Atlantic Products
  • Made in the USA  Made in the USA



Racking Width 19"
Top 16-gauge steel
Sides, Bottom, Door 18-gauge steel
Rackrails 11-gauge steel
Finish Black powder coat
Rackrails Tapped for 10-32 mounting holes
Rack Fans (2) 55 CFM installed at top
Power Distribution (9) 15 AMP outlet included
Removable Plate 17.5" x 8.0" [445 x 203 mm], machined aluminum, on bottom
Antenna Knockouts (8) for UHF/VHF on bottom
UL File # E313734
UL Category NWIN, NWIN17
Test Standard(s) UL 60950-1
CAN/CSA C22.2 No. 60950-03-1



Part # Overall Height Rack Height Rack Spaces Overall Width Overall Depth Useable Depth Weight Capacity
MA-IDF-TM-1224BK 24.13" [613 mm] 21" [533 mm] 12U 23.52" 28.73" 21.00" 150 lbs
MA-IDF-TM-1624BK 31.13" [791 mm] 28" [711 mm] 16U 23.52" 28.73" 21.00" 150 lbs
