Solid and Gangable Masonry Boxes
Works With All Types of Masonry for Power and Low Voltage Installations
Close Window
Solid and Gangable Masonry Boxes
This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
|
These Masonry Boxes are designed to provide the strength and flexibility you need to install power and data options into masonry. These durable 2.5" to 3.5" deep electrical boxes are available up to 10 gangs, in both solid and gangable styles. Solid boxes speed up installation times for jobs that won't require any future changes, and gangable boxes are ideal for applications that may change unexpectedly in the field. |
- 2 build options to suit your application:
- Solid: One-piece construction, standard boxes for jobs that will not change, available up to 6 gangs
- Gangable: Each gang is made with removable sides for the addition of more gangs, allowing you to daisy-chain an infinite number of boxes for custom installations
- Each box is available in 2-1/2" and 3-1/2" depths to accommodate various wiring densities
- Heavy duty welded steel construction ensures these boxes can withstand the pressure of being installed in masonry
- Each multiple gang box contains a slot for a device partition, separating low-voltage and power device signals for decreased electrical interference
| PROPERTY | VALUE |
| Material | G60 Galvanized Steel |
|---|---|
| Material Gauge | 0.0625" (1.587 mm) |
| Gangs | Solid: 1 to 10 Gangable: 1 to 7 |
| Industry Standards | UL E22445 |
| Gangs | Knockouts | |||
| Bottom | Top | Rear | Sides (L+R) | |
| 1 | 1 | 1 | 2 | 4 |
| 2 | 2 | 2 | 4 | 4 |
| 3 | 3 | 3 | 6 | 4 |
| 4 | 4 | 4 | 8 | 4 |
| 5 | 5 | 5 | 10 | 4 |
| 6 | 6 | 6 | 12 | 4 |
| 7 | 7 | 7 | 14 | 4 |
| 8 | 8 | 8 | 16 | 4 |
| 9 | 9 | 9 | 18 | 4 |
| 10 | 10 | 10 | 20 | 4 |
3-1/2" Deep Boxes | 2-1/2" Deep Extension Rings | 3-1/2" Deep Extension Rings | Accessories
| Click images for larger view | PART # | GANGS | BUILD | PRICE |
| 2-1/2" Deep Boxes | ||||
 |

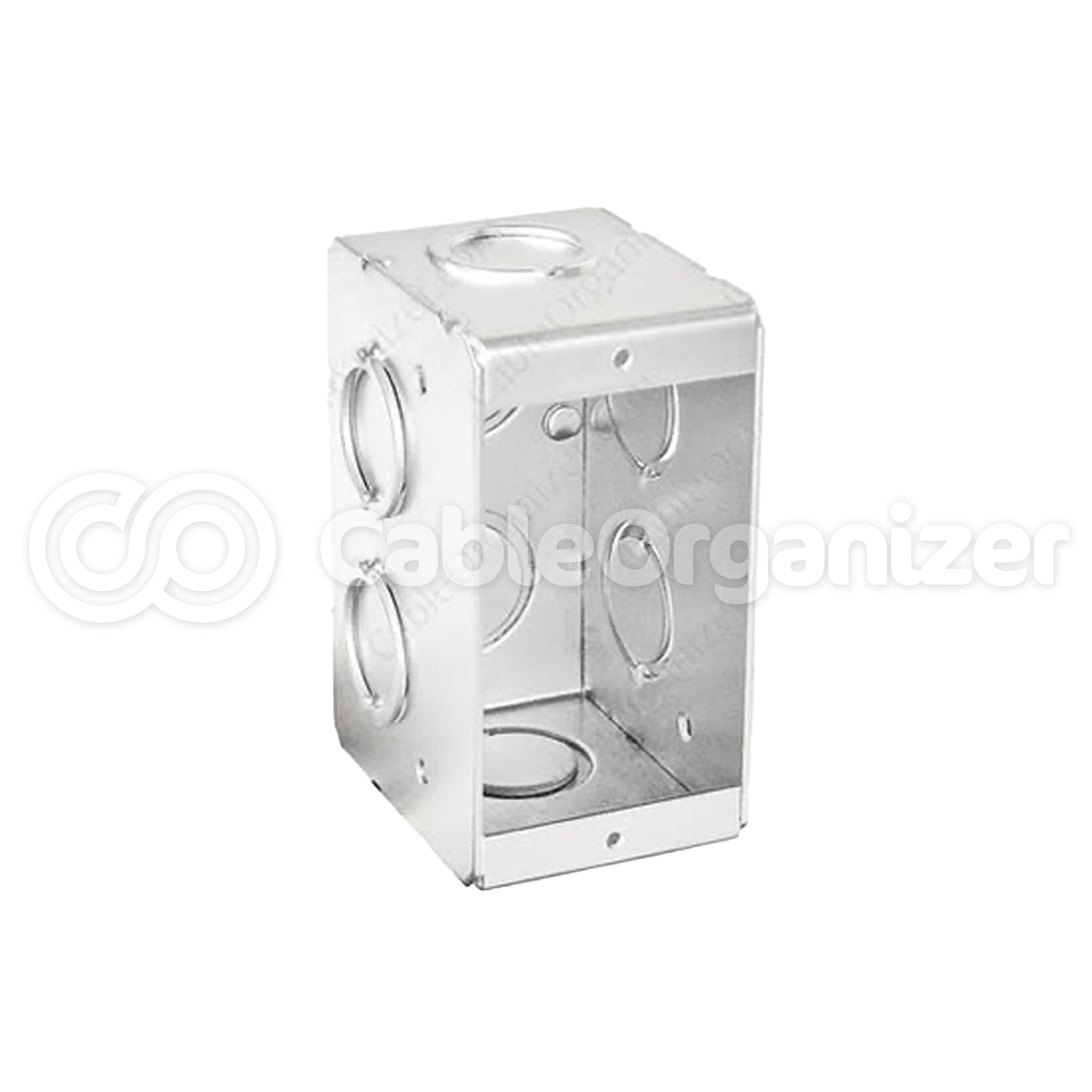

GI-TB-125 |
1 | Solid or Gangable | |
 |
GI-TB-225 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
2 | Solid or Gangable | |
 |
GI-TB-325 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
3 | Solid or Gangable | |
 |
GI-TB-425 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
4 | Solid or Gangable | |
 |
GI-TB-525 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
5 | Solid or Gangable | |
 |
GI-TB-625 Gangable Drawing Dimensions - PDF |
6 | Solid or Gangable | |
 |
GI-TB-725-G Drawing Dimensions - PDF |
7 | Gangable | |
 |
GI-TB-825-G Drawing Dimensions - PDF |
8 | Gangable | |
 |
GI-TB-925-G Drawing Dimensions - PDF |
9 | Gangable | |
 |
GI-TB-1025-G Drawing Dimensions - PDF |
10 | Gangable | |
| PART# | GANGS | BUILD | PRICE | |
| 3-1/2" Deep Boxes | ||||
 |
GI-TB-135 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
1 | Solid or Gangable | |
 |
GI-TB-235 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
2 | Solid or Gangable | |
 |
GI-TB-335 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
3 | Solid or Gangable | |
 |
GI-TB-435 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
4 | Solid or Gangable | |
 |
GI-TB-535 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
5 | Solid or Gangable | |
 |
GI-TB-635 Solid Drawing Dimensions - PDF Gangable Drawing Dimensions - PDF |
6 | Solid or Gangable | |
 |
GI-TB-735-G Drawing Dimensions - PDF |
7 | Gangable | |
 |
GI-TB-835-G Drawing Dimensions - PDF |
8 | Gangable | |
 |
GI-TB-935-G Drawing Dimensions - PDF |
9 | Gangable | |
 |
GI-TB-1035-G Drawing Dimensions - PDF |
10 | Gangable | |
| 2-1/2" Deep Extension Rings | ||||
 |
GI-TBX-125 Drawing Dimensions - PDF |
1-Gang | ||
 |
GI-TBX-225 Drawing Dimensions - PDF |
2-Gang | ||
 |
GI-TBX-325 Drawing Dimensions - PDF |
3-Gang | ||
 |
GI-TBX-425 Drawing Dimensions - PDF |
4-Gang | ||
 |
GI-TBX-525 | 5-Gang | ||
 |
GI-TBX-625 | 6-Gang | ||
| 3-1/2" Deep Extension Rings | ||||
 |
GI-TBX-135 | 1-Gang | ||
 |
GI-TBX-235 | 2-Gang | ||
 |
GI-TBX-335 | 3-Gang | ||
 |
GI-TBX-435 | 4-Gang | ||
| Accessories | ||||
 |
GI-TBD-250 Drawing Dimensions - PDF |
Device Partition for 2-1/2" Deep Masonry Box | ||
 |
GI-TBD-350 Drawing Dimensions - PDF |
Device Partition for 3-1/2" Deep Masonry Box | ||
| - | GI-TB-335-BLNK | Solid, 3-1/2" Deep, Blank Three Gang Masonry Box | ||
 |
GI-MBC3D Drawing Dimensions - PDF |
3 Gang Masonry Box Cover for Duplex Receptacles | ||
 |
GI-MBC3T Drawing Dimensions - PDF |
3 Gang Masonry Box Cover for Toggle Switches | ||
No Manuals Available.
