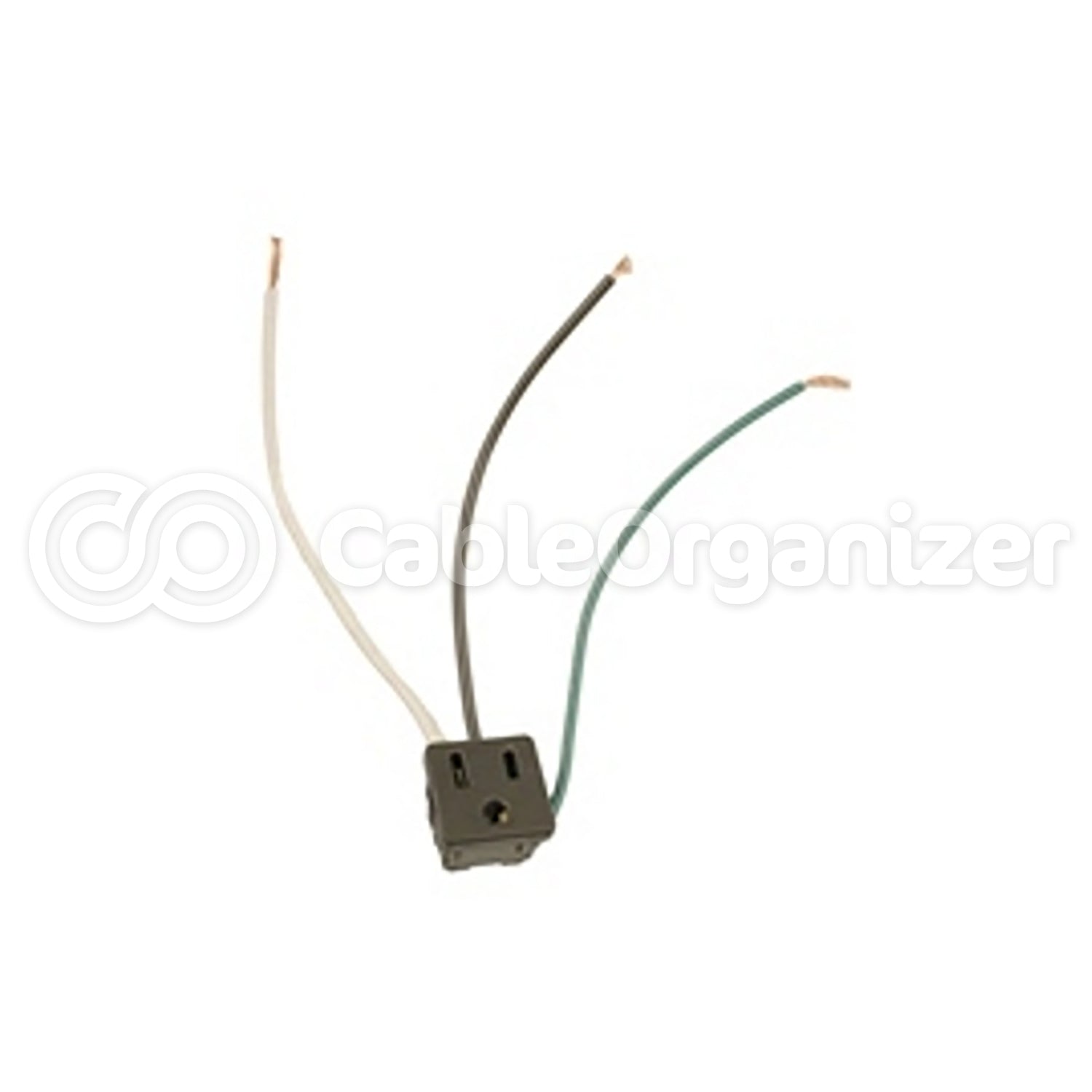

Leviton Snap-In Receptacle, black

Close Window

Leviton Snap-In Receptacle

    Additional Images
  • Leviton Snap-In Receptacle, white - icon
  • Leviton Snap-In Receptacle, black - icon
  • Leviton Snap-In Receptacle, wiring diagram - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2014 CableOrganizer.com

Low Price GuaranteeWhat's special about this portable snap-in connector?

  • Compact single AC outlet is perfect for use in bathrooms, behind refrigerators, or with garage door openers – install it anywhere you need just one outlet
  • Quick and easy to install; just connect the three wires to the appropriate ground, neutral and hot wire, and you have instant power
  • Nema rated, 15 Amp, 125 volt snap-in electrical receptacle can power many standard items including heat guns, crimpers ,desk outlets or small appliances
  • UL and CSAManufactured of thermoplastic to stand up to abrasion and occasional bumps
  • Click for More Features
Qty:

Leviton's Snap-in Straight Blade Receptacle gives electricians the ability to customize outlet design in kitchen, bathroom, garage and office applications that call for a single extra power outlet. Great for technicians that need an extra outlet in both pre-existing or new construction applications.

  • 1/2 inch stripped, 14 AWG, 6 inch long power leads for a quick connection to the main power source
  • 1/2 inch stripped, 16 AWG, 6 inch long grounding lead to ensure safety and minimize accidents
  • Clip is manufactured of corrosion-resistant steel that will withstand tugs and pulls
  • Modular size (0.95"W x 0.95"H x 077"D) is perfect for panel openings, and is able to fit any standard face plate
  • UL listed E13399
  • CSA certified LR-2781
  • NOM certified 057



snap-in receptacle technical drawing
LE-1374
Qty:
Colors Black, White
Amperage 15 Amps
Voltage 125 V
NEMA 5-15R
Warranty 2 year limited
Pole 2
Wire 3
Termination Leads 14 AWG 6" long
Face Material Thermoplastic
Body Material Themoplastic
Clip Material Plastic Serrated
Panel Thickness 0.031" – 0.080"
Panel Opening 0.95"W x 0.95"H x 0.77"D
UL Listed E13399
CSA Certified LR-2781
NOM 057

This receptacle is used for panel openings and DOES NOT fit into standard wall plates

PART # DESCRIPTION AMP/VOLT DIMENSIONS COLOR
Choose at Checkout
PRICE
LE-1374 Single Snap-In AC Receptacle 15 Amp / 125 Volt 0.95"W x 0.95"H x 0.77"D
(24.13mm x 24.13mm x 19.5mm)
Black, White
Qty:
