Low Price GuaranteeWhat's special about pre-configured panels?

  • Large range of pre-configured panels for meeting all kinds of communication, networking, and television needs
  • Boards and video splitters are pre-mounted on Leviton’s durable ABS bracket for easy installation
  • Panel can be used as a stand-alone unit or combined with other structured media panels and enclosures for a complete home communication and multimedia center.
  • Click for More Features

Leviton pre-configured media panels are the perfect solution for meeting the demands of today’s home networking and television industries. Whether you’re a professional or a home owner, these structured media panels combine several of today’s latest technologies into one upgradeable and easy to install panel that can be used by itself or combined with other panels to increase your home's communication and multimedia capabilities.

  • 18-Port Structured Media Panel includes 1 ABS plastic bracket, 1 telephone line distribution module, 3 Category 5e voice & data boards, and 18 8-conductor flat telephone patch cords
  • 24-Port Structured Media Panel includes 1 ABS plastic bracket, 1 telephone line distribution module, 4 Category 5e voice & data boards and 24 8-conductor flat telephone patch cords
  • 4x18 Telephone and Cat 5e Distribution Panel includes 1 ABS plastic bracket, 1 telephone line distribution module, and 1 Category 5e voice & data board
  • 4x18 Telephone Distribution Panel includes 1 ABS plastic bracket, and 1 telephone line distribution module
  • 4x12 Telephone Distribution Board on Plastic Shelf Bracket. Distributes up to 4 telephone lines through 12 connections. Includes 12 modular RJ-45 jack outputs (Line 1,2,3,4). Includes 4 pair 110 type IDC input. pkd: 1/small box, 4/carton boxed.

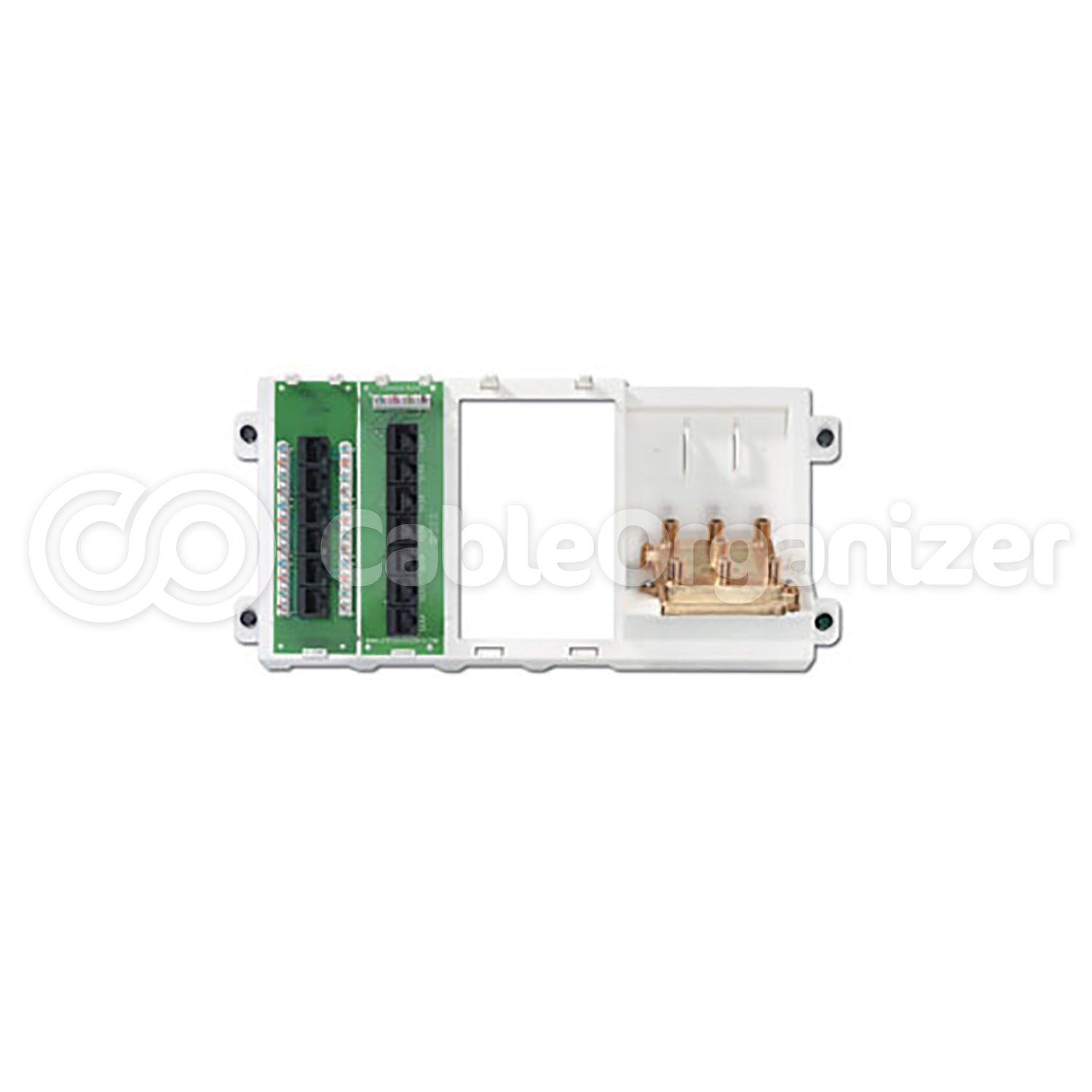

  • Basic Home Networking Plus Panel includes 1 ABS plastic bracket, 1 telephone patching expansion Board, 1 6-way passive video splitter (2GHz),and 1 Category 5e voice and data board
  • Basic Telephone and Video Panel includes 1 ABS plastic bracket, 1 1x9 bridge telephone board, and 1 6-way passive video splitter (2GHz)
  • Advanced Home Telephone and Video Panel includes 1 ABS plastic bracket, 1 telephone line distribution module, 1 category 5e voice and data board, and 1 6-way passive video splitter (2GHz)
  • Compatible with Leviton expansion boards for upgrading or customizing structured panels to suit your specific needs
  • 2 year limited manufacturer warranty



ITEM LE-47603-18P LE-47603-24P LE-47603-8C1 LE-47603-18M
PRICE
Qty:
Qty:
Qty:
Qty:
Material Specs: ABS Plastic Bracket ABS Plastic Bracket ABS Plastic Bracket ABS Plastic Bracket
Mechanical Specs
  - Telephone Line Distribution
  - CAT5e Voice Data

 - (19) 8P8C 2-4-Line Dist, (1) Test, (1) Aux, (1) 110-IDC
 - (18) Category 5e ports and (18) 110-IDC Connector

 - (19) 8P8C 2-4-Line Dist, (1) Test, (1) Aux, (1) 110-IDC
 - (24) Category 5e ports and (18) 110-IDC Connector

 - (18) 8P8C jacks for 4-line distribution
 - (6) CAT5e ports and (6) 110-IDC Conn.

 - (18) 8P8C jacks for 4-line distribution
Standards: UL E109712
TIA/EIA 568A
FCC Rated Part 68 Compliant
UL E109712
TIA/EIA 568A
FCC Rated Part 68 Compliant
UL E109712
TIA/EIA 568A
FCC Rated Part 68 Compliant
UL E109712
TIA/EIA 568A
FCC Rated Part 68 Compliant
Structured Media Components
  - Telephone Line Dist. Modules
  - CAT5e Voice/Data Modules

1
3

1
4

1
1

1
-
Dimensions: 13.3"H x 6.13"W x 2.01"D 13.3"H x 6.13"W x 2.01"D 13.3"H x 6.13"W x 2.01"D 13.3"H x 6.13"W x 2.01"D



ITEM LE-47606-BNP LE-47606-BTV LE-47606-AHT LE-47603-C5 LE-47603-110
PRICE
Qty:
Qty:
Qty:
Qty:
Qty:
Material Specs: ABS Plastic Bracket ABS Plastic Bracket ABS Plastic Bracket ABS Plastic Bracket ABS Plastic Bracket
Mechanical Specs: Telephone Patching Expansion: 1 110-Type IDC Bridged to 7 8P8C/RJ45 Conn
CAT5e Voice/Data: 6 CAT5e ports & 6 110-IDC Conn
Video Splitter: 1 F-Type Female input, 6 F-Type Female output
Video Splitter Freq: 2 GHz
Telephone Bridge: 10 Bridged 4-Pair 110-Type IDC Connectors
Video Splitter: 1 F-Type Female input, 6 F-Type output
Video Splitter Freq: 2 GHz
Telephone Line Dist: 19 8P8C 2-4 Line Dist, 1 Test, 1 Aux, 1 110-IDC
CAT5e Voice/Data: 6 CAT5e ports and 6 11-IDC Conn
Video Splitter: 1 F-Type Female input, 6 F-Type output
Video Splitter Freq: 2 GHz
Cat 5e Voice Data: Six Category 5e ports and six 110-IDC Connector Telephone Bridge: 10 Bridged 4-Pair 110-Type IDC Connectors
Standards: UL E109712
TIA/EIA 568A
FCC Rated Part 68 Compliant
UL E109712
TIA/EIA 568A
FCC Rated Part 68 Compliant
UL E109712
TIA/EIA 568A
FCC Rated Part 68 Compliant
- -
Structured Media Components:  - (1) Telephone Patching Expansions
 - (1)CAT5e Voice/Data Module
 - (1) 6-Way Video Splitter
 - (1) 1x9 Bridged Telephone Module
 - (1) 6-Way Video Splitter
 - (1) Telephone Line Dist Module
 - (1) CAT5e Voice/Data Module
 - (1) 6-Way Video Splitter
 - 6 line 1x4 Bridged Telephone Printed Circuit Board  - 1x9 Bridged Telephone Module
Dimensions: 6.13" H x 13.3" W x 2.28" D 6.13" H x 13.3" W x 2.28" D 6.13" H x 13.3" W x 2.28" D 5.75"H x 1.75"W x 0.685"D 5.75"H x 1.75"W x 0.63"D
PART # DESCRIPTION DIMENSIONS WEIGHT PRICE
LE-47603-18P 18 Port Structured Media Panel 13.3" H x 6.13" W x 2.01" D 2.30 lbs
Qty:
LE-47603-24P 24 Port Structured Media Panel 13.3" H x 6.13" W x 2.01" D 2.55 lbs
Qty:
LE-47603-8C1 4 x 18 Telephone & CAT5e Distribution Panel 13.3" H x 6.13" W x 2.01" D 1.5 lbs
Qty:
LE-47603-18M 4 x 18 Telephone Distribution Panel 13.3" H x 6.13" W x 2.28" D 1.34 lbs
Qty:
LE-47606-BNP Basic Home Networking Plus Panel 13.3" H x 6.13" W x 2.28" D 1.9 lbs
Qty:
LE-47606-BTV Basic Telephone & Video Panel 13.3" H x 6.13" W x 2.28" D 1.65 lbs
Qty:
LE-47606-AHT Advanced Home Telephone & Video Panel 13.3" H x 6.13" W x 2.28" D 2.1 lbs
Qty:

LE-47603-12M 4x12 Telephone Distribution Board on Plastic Shelf Bracket.
Distributes up to 4 telephone lines through 12 connections.
Bracket: 6.13”H x 13.30”W x 2.28”D
Qty:
LE-47603-412 4x12 Telephone Distribution Board on bracket w/ 8-way 2GHz splitter. Bracket: 6.13”H x 13.30”W x 2.28”D
Qty:

LE-47603-C5 Cat5e Voice/Data Expansion Board 5.75"H x 1.75"W x 0.685"D 0.375 lb.
Qty:
LE-47603-110 1 x 9 Bridged Telephone Expansion Module 5.75"H x 1.75"W x 0.63"D 0.375 lb.
Qty:
