Insultherm Spark Plug Boot Insulators

Double-Wall Fiberglass Sleeves Protect Wires & Spark Plug Boots to 1,200° F

product
Close Window

Insultherm Spark Plug Boot Insulators

    Additional Images

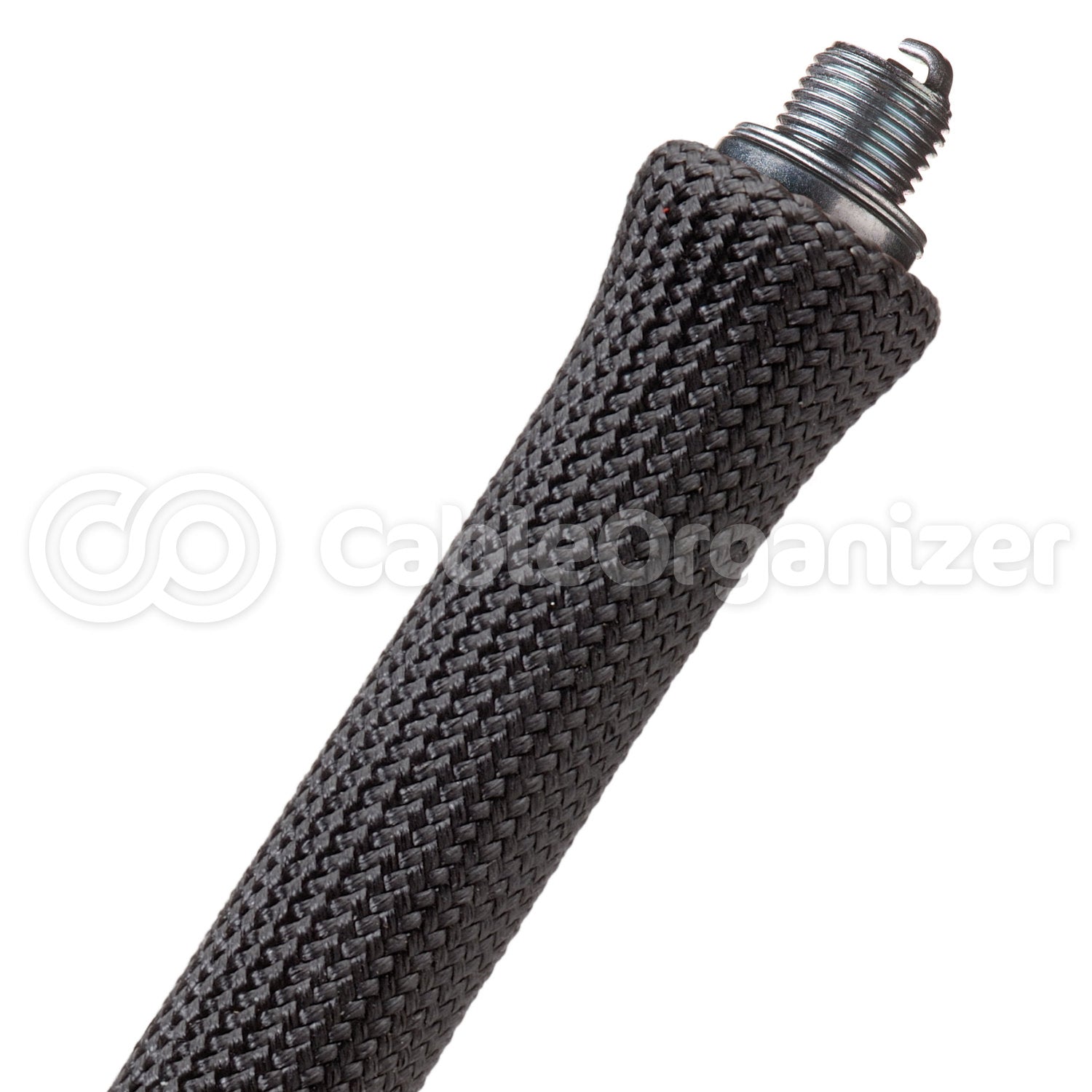

  • spark plug protected with Insultherm Spark plug insulator - icon
  • packages of Insultherm Spark - icon
  • tan, blue, red, and black insultherm spark - icon
  • inside of a car engine with insultherm spark insulators - icon
  •  - icon
  •  - icon
  •  - icon
  •  - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2014 CableOrganizer.com

Insultherm Insulators are available in four colors

Low Price GuaranteeWhat's special about these insulators?

  • GSA approvedEconomical, long lasting protection
  • Resists oil and engine fluids
  • Easy slip-on installation
  • RoHS CompliantProtects up to 1,200° F
  • Halogen and asbestos free
  • Click for More Features

Insultherm Spark Plug Boot Insulators are the ideal solution for protecting spark plugs, boots and cable ends from extreme engine heat. SPBI's are woven from durable, heat resistant fiberglass yarn.

The woven fabric is formed into a double layered sleeve that easily fits over most standard plug/boot combinations, even right angle configurations. The assembly will resist to temperature bursts up to 1,200° F and will continuously protect your delicate components up to 500° F.

  • Economical, long lasting protection
  • Resists oil and engine fluids
  • Easy slip-on installation
  • Protects up to 1,200°F
  • Halogen and asbestos free
  • Resists gasoline and engine chemicals
  • Convenient packaging
  • Compliant with European Union's Restrictions on the use of Hazardous Substances (RoHS) Directive



Material Heat-resistant fiberglass yarn
Resistance Gasoline, engine chemicals
Maximum Temperature up to 1,200° F [648,9° C]
Continuous Protection up to 500° F [260° C]
Halogen Free Yes
Asbestos Free Yes
Available Colors Tan, Red, Blue, Black
Diameter 3/4"
Length 7.5"
Box Quantities 4, 6, 8

UL recognized component    UL Rated Flame Retardent   CSA logo

PART # DIAMETER LENGTH QUANTITY PER BOX COLOR PRICE / BOX
SPB190-4 3/4" 7.5" 4 Tan, Red, Blue, Black
Qty:
SPB190-6 3/4" 7.5" 6 Tan, Red, Blue, Black
Qty:
SPB190-8 3/4" 7.5" 8 Tan, Red, Blue, Black
Qty:

UL recognized component    UL Rated Flame Retardent   CSA logo

REVIEW SNAPSHOT®

by PowerReviews
0.75 in. x 7.5 in. Insultherm Spark Plug 4 Piece

4.7

(based on 3 reviews)

Ratings Distribution

  • 5 Stars



    (2)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Pros

    Cons

      Best Uses

      • Automotive (3)

      Reviewed by 3 customers

      Sort by

      Displaying reviews 1-3

      Back to top


      5.0

      insultherm boots

      By bsully1231

      from St.Louis, MICHIGAN 48880

      About Me Gearhead

      Verified Buyer

      Pros

      • Cheapest Price I Found

      Cons

      • Havent Got To Install Yet

      Best Uses

      • Automotive
      • Protection

      Comments about 0.75 in. x 7.5 in. Insultherm Spark Plug 4 Piece:

      I looked around, someone wanted [$] a piece for these boot sleeves. My friend is a manager at Autozone and a 3ft section of this is almost $60. I would have liked the mylar-refective sleeve but 3/4 was too small and 1inch was too big. I haven't ad the chance to install them on my 79' camaro. My truck got jealous and the neutral safety switch went out in Autozone parking lot. I have drill(army) this weekend so it might be next week to get install. These should work great I bought the camaro in May and August 23 it finally burned thru one of the boots. Only one plug and plug wire is behind the header with a 1/4 inch gap. The rest should be fine but if these boots work for that one plug/ boot. No only will I be able to keep my headers and save money. I'll buy 4 more of these boot sleeves to put on the rest of my plug boots. Thank You!

      • Primary use:
      • Personal

      4.0

      Works as advertised with slight browning

      By Gthbryce

      from Carmichael,CA

      About Me Tech Savvy

      Pros

      • Durable
      • Easy To Install
      • Great Fit
      • Great Protection

      Cons

        Best Uses

        • Automotive

        Comments about 0.75 in. x 7.5 in. Insultherm Spark Plug 4 Piece:

        I installed these on a 460 ci ford in which I removed the stock heat shielding from. Installation was a snap and the shielding slipped over the wires perfectly. There was noticeable browning but at least my boots and wires are okay!

        (2 of 2 customers found this review helpful)


        5.0

        WOW!!!!!!!!!!!!!!!

        By gcsd3742

        from South side of Houston Texas

        About Me Gearhead

        Verified Reviewer

        Pros

        • Durable
        • Easy To Install
        • Fits Multiple Cable Sizes
        • Great Fit
        • Great Protection

        Cons

          Best Uses

          • Automotive

          Comments about 0.75 in. x 7.5 in. Insultherm Spark Plug 4 Piece:

          I enjoy them so much and I pass it on as much as possible. A+++++++++++++ product and you cant beat the price

          • Primary use:
          • Personal
