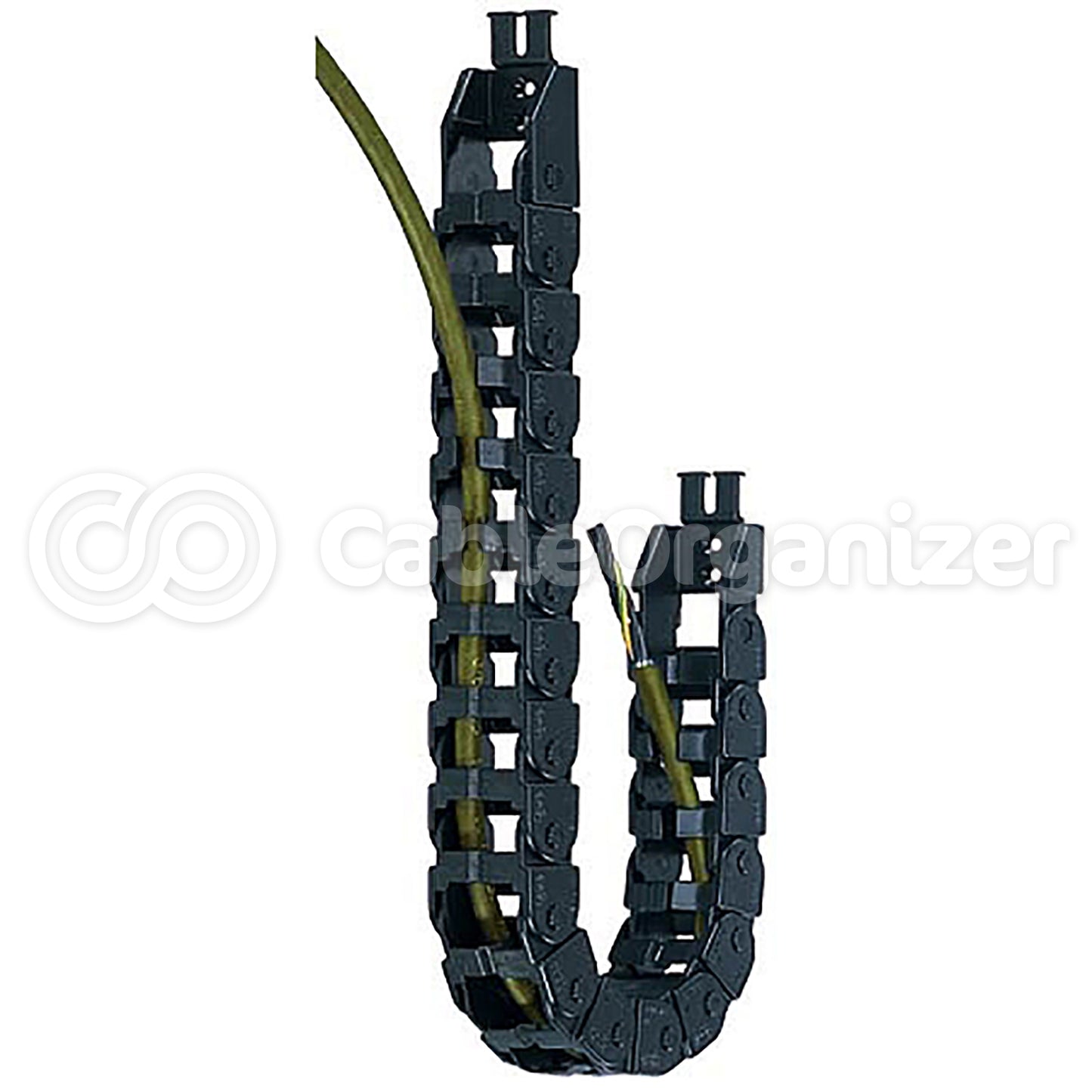

IGUS® E-Chain® Series E08 "E-Z Chain"

    Additional Images
  • IGUS E-Z Chain E08 Series - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2014 CableOrganizer.com



Low Price GuaranteeWhat's special about these IGUS® Cable Carriers?

  • Protects hoses and cable from debris such as wood chips or metal shavings, and from being pinched or shut off during use
  • Water and temperature resistance for extreme applications
  • Limited bend radius protects cables for optimal performance
  • No special tools needed - chain and tubes can be opened and adjusted using just a screwdriver
  • Click for More Features

IGUS® E-Chain® carrier systems are widely used to guide and protect cables and hoses on automated machinery. Over 30 years of experience have proven excellence in performance in various fields such as: medical lab equipment, robot dressout, extendable trailers and tele-handlers, packaging machinery, machine tools and custom machines. E-Chain® is a lightweight, maintenance-free carrier, that prevents cables from breaking, corkscrewing, or tangling.

  • Small pitch for fast and easy access
  • Made from strong material (igumid NB) for torsional rigidity and torque resistance
  • Specifically constructed for quiet operation
  • Ability to handle high loads for your convenience
  • Multi-axis movement for a faster operation
  • Smart design for fast and easy access
  • Withstands temperatures from -22° F to 212° F (-30° C to 100° C) for use in extreme conditions



Material (chain) igumid NB
Material (mounting brackets) igumid G
Permitted Temperature -22°F/212°F (-30°C/+100°C)
Gliding Speed Max. Conditionally suitable
Unsupported V Max. 32.8ft/s (10m/s)
Flammability Class (chain) VDE 0304 IIC UL94 V2
Flammability Class (mounting brackets) VDE 0304 IIC UL94 HB



Dimensional Specifications

cross section of E-Z Chain

PART # INNER WIDTH (Bi)
(inches)
OUTER WIDTH (Ba)
(inches)
RADIUS
(inches)
CURVE HEIGHT
(inches)
CURVE LENGTH
(inches)
WEIGHT
(lb)
IGU-E08-10-028-0 0.39 0.71 1.1 3.15 5.12 0.15
IGU-E08-10-038-0 0.39 0.71 1.5 3.9 6.3 0.15
IGU-E08-10-048-0 0.39 0.71 1.9 4.72 7.48 0.15

IGU-E08-16-028-0 0.63 0.95 1.1 3.15 5.12 0.16
IGU-E08-16-038-0 0.63 0.95 1.5 3.9 6.3 0.16
IGU-E08-16-048-0 0.63 0.95 1.9 4.72 7.48 0.16

IGU-E08-20-028-0 0.79 1.11 1.1 3.15 5.12 0.17
IGU-E08-20-038-0 0.79 1.11 1.5 3.9 6.3 0.17
IGU-E08-20-048-0 0.79 1.11 1.9 4.72 7.48 0.17

IGU-E08-30-028-0 1.18 1.5 1.1 3.15 5.12 0.19
IGU-E08-30-038-0 1.18 1.5 1.5 3.9 6.3 0.19
IGU-E08-30-048-0 1.18 1.5 1.9 4.72 7.48 0.19

IGU-E08-40-028-0 1.57 1.89 1.1 3.15 5.12 0.21
IGU-E08-40-038-0 1.57 1.89 1.5 3.9 6.3 0.21
IGU-E08-40-048-0 1.57 1.89 1.9 4.72 7.48 0.21

IGU-E08-50-028-0 1.97 2.29 1.1 3.15 5.12 0.25
IGU-E08-50-038-0 1.97 2.29 1.5 3.9 6.3 0.25
IGU-E08-50-048-0 1.97 2.29 1.9 4.72 7.48 0.25



Installation Dimensions

drawing of installation
R 1.10" (028mm) 1.50" (038mm) 1.89" (048mm)
H* 2.99" (76mm) 3.78" (96mm) 4.57" (116mm)
D 2.36" (60mm) 2.75" (70mm) 3.15" (80mm)
K ** 5.12" (130mm) 6.30" (160mm) 7.48" (190mm)

* The required clearance height is HF = H + 0.59" (15mm) with 0.20 lb/ft (0.3 kg/m) fill weight.
** The length of the curve

Pitch: 0.79" (20mm) per link
Links per ft (m): 15.254" (50mm)
Chain length: S/2 + K



Mounting Brackets

mounting bracket dimensions

Chain Type Mount Bracket Part # Bore Locations # of Teeth Dimension A Dimension B
E08-10 IGU-080-10-12-PZ Center Only 1 - 0.72" (18.2mm)
E08-16 IGU-080-16-12-PZ Center Only 2 - 0.95" (24.2mm)
E08-20 IGU-080-20-12-PZ Center Only 2 - 1.11" (28.2mm)
E08-30 IGU-080-30-12-PZ Outer Only 3 0.87" (22mm) 1.50" (38.2mm)
E08-40 IGU-080-40-12-PZ Outer Only 4 1.26" (32mm) 1.90" (48.2mm)
E08-50 IGU-080-50-12-PZ Outer Only 5 1.65" (42mm) 2.29" (58.2mm)



Igumid G

Resistance:
The igus® compound igumid G is partly suitable for inconsistant requirements.
Resistant to: Fire, radiation, weathering, cold/heat, explosion areas, vacuum, hot chips, dirt/dust, clean-room, chemicals

Flammability Classifications:

igumid G
  UL 94 HB

igumid NB
  UL 94 V2
  UL 94 V0
  VDE 0304 Parts 3-5.70 classifications - llb
  DIN 4102 flammability V0 option

Weathering, Temperature Resistance
Temperature range: -40°C to +130°C



PART # INNER WIDTH BEND RADII OVERALL
DIMENSIONS
WEIGHT / FT PRICE / FT
Inner Width: 0.39"
IGU-E08-10-028-0 0.39" 1.10" 0.76" x 0.72" 0.141 lb
Qty:
IGU-E08-10-038-0 0.39" 1.50" 0.76" x 0.72" 0.141 lb
Qty:
IGU-E08-10-048-0 0.39" 1.89" 0.76" x 0.72" 0.141 lb
Qty:

Inner Width: 0.63"
IGU-E08-16-028-0 0.63" 1.10" 0.76" x 0.95" 0.161 lb
Qty:
IGU-E08-16-038-0 0.63" 1.50" 0.76" x 0.95" 0.161 lb
Qty:
IGU-E08-16-048-0 0.63" 1.89" 0.76" x 0.95" 0.161 lb
Qty:

Inner Width: 0.79"
IGU-E08-20-028-0 0.79" 1.10" 0.76" x 1.11" 0.168 lb
Qty:
IGU-E08-20-038-0 0.79" 1.50" 0.76" x 1.11" 0.168 lb
Qty:
IGU-E08-20-048-0 0.79" 1.89" 0.76" x 1.11" 0.168 lb
Qty:

Inner WIdth: 1.18"
IGU-E08-30-028-0 1.18" 1.10" 0.76" x 1.50" 0.188 lb
Qty:
IGU-E08-30-038-0 1.18" 1.50" 0.76" x 1.50" 0.188 lb
Qty:
IGU-E08-30-048-0 1.18" 1.89" 0.76" x 1.50" 0.188 lb
Qty:

Inner Width: 1.57"
IGU-E08-40-028-0 1.57" 1.10" 0.76" x 1.50" 0.208 lb
Qty:
IGU-E08-40-038-0 1.57" 1.50" 0.76" x 1.50" 0.208 lb
Qty:
IGU-E08-40-048-0 1.57" 1.89" 0.76" x 1.50" 0.208 lb
Qty:

Inner Width: 1.97"
IGU-E08-50-028-0 1.97" 1.10" 0.76" x 1.50" 0.249 lb
Qty:
IGU-E08-50-038-0 1.97" 1.50" 0.76" x 1.50" 0.249 lb
Qty:
IGU-E08-50-048-0 1.97" 1.89" 0.76" x 1.50" 0.249 lb
Qty:



Full Mounting Bracket Set
Include Tie Wrap Plate w/ Tie Wraps

PART # INNER WIDTH OVERALL DIMENSIONS WEIGHT PRICE
IGU-080-10-12-PZ 0.39" 0.72" x 0.76" 0.15 lb
Qty:
IGU-080-16-12-PZ 0.63" 0.95" x 0.76" 0.16 lb
Qty:
IGU-080-20-12-PZ 0.79" 1.11" x 0.76" 0.17 lb
Qty:
IGU-080-30-12-PZ 1.18" 1.50" x 0.76" 0.19 lb
Qty:
IGU-080-40-12-PZ 1.57" 1.90" x 0.76" 0.21 lb
Qty:
IGU-080-50-12-PZ 1.97" 2.29" x 0.76" 0.25 lb
Qty:

For specifications on mounting brackets

IGUS Zipper CarrierIGUS® E-Chain® Series 15 Zipper
From / ft
The Series 15 IGUS® Zipper is a very advanced designed cable and hose carrier. The "zipper" design allows the user to access the links by simply pulling the top part off in an unzipping type motion. Quick snaps of the cover back on, and the carrier is back on track, not only does it save time; it is also easy to use. This product can help with shorter downtimes, easier troubleshooting and lightning fast replacements.
cable and hose carrierGORTRAC® NYLATRACT Automation Line Cable and Hose Carriers
The Nylatrac Automation Line carriers are capable of high speeds and accelerations, while providing quiet, smooth operation, convenient accessibility, quick installation, and reliable performance.

igus e2 medium chainIGUS® E2 Medium 240/250 Series Cable Carriers
From / ft
IGUS® introduces the E2 Medium 240/250 Series, an innovative step towards protection and accessibility. This easy to assemble line comes in seven different widths and each one with nine different bend radii. This cable carrier meets all of the requirements for a fast and effective cable or hose run; along with the guarantee of a long service life also comes the quality of the IGUS® brand.
triflex energy chainIGUS® Triflex® EZ Access
From / ft
Triflex® from IGUS® offers great flexibility for intricate runs around machinery. Designed with this purpose in mind, this carrier can bend and twist up to 380° per yard, making this product the most versatile cable and hose carrier ever. Available mounting brackets help you guide the Triflex® around extreme turns and its performance will help your production line stay safe and easy to maintain.

snap chain with cablesIGUS® E2 Medium Series 26 Snap Chain
From / ft
The IGUS® SnapChain breaks all of the rules as far as cable carriers are concerned. The typical design of side links and crossbars has been replaced with the concept of one side link with an adjustable loop. With flexibility in two directions and adjustable length of the loop at any time the SnapChain is the perfect replacement for expensive cable clips.
Flexible Steel Conduit

Flexible Steel Conduit
From
Galvanized Steel Conduit is suitable for concealed, exposed, or approved raceways. The flexible conduit is manufactured with a spiral wound strip of corrosion / rust resistant, hot-dipped galvanized steel. The natural color Type RWS conduit features a smooth metal interior for easy wiring pulling.
