HellermannTyton® Edge Clip and Cable Tie Assemblies

Requires No Drilling for Quick and Easy Cable Bundle Routing

Edge Clip

Close Window

Hellermann Tyton Edge Clip

    Additional Images
  • Clip - icon
  • Clip with cable - icon
  •  - icon
  •  - icon
  •  - icon
  •  - icon
  •  - icon
  •  - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2014 CableOrganizer.com

UL     RoHS Compliant

Low Price GuaranteeWhat's special about these edge-mounted cable clips?

These Edge Clips from HellermannTyton® require no tools or hard labor to install, and provide a quick, low-key, and highly versatile wire routing solution.

  • Integrated metal clamp holds the clip securely in place, may cause slight surface scratches but will not destroy a finish
  • Bundles may be held together with cable ties or tape, providing you the flexibility to use the method of your choice
  • Will not leave any residue or do any damage to the surface, aside from a few small scratches
  • UL 94
  • RoHS Compliant



PART # MIN PANEL THICKNESS MAX PANEL THICKNESS LENGTH WIDTH HEIGHT
HT-151-03401 0.039" (1.0 mm) 0.117" (3.0 mm) 1.57" (40.0 mm) 0.39" (10.0 mm) 0.49" (12.4 mm)
HT-151-03402 0.039" (1.0 mm) 0.117" (3.0 mm) 1.57" (40.0 mm) 0.39" (10.0 mm) 0.52" (13.0 mm)
HT-151-03403 0.039" (1.0 mm) 0.117" (3.0 mm) 1.57" (46.5 mm) 0.39" (10.0 mm) 0.52" (13.0 mm)
HT-151-03404  0.117" (3.0 mm) 0.039" (1.0 mm) 1.57" (40.0 mm) 0.39" (10.0 mm) 0.49" (12.4 mm)

Edge Clips with integrated clamps
PART # MIN BUNDLE SIZE MAX BUNDLE SIZE NOMINAL BUNDLE SIZE MIN PANEL THICKNESS MAX PANEL THICKNESS
HT-151-00174 0.614" (15.3 mm) 0.63" (15.9 mm) 0.62" (15.6 mm) 0.04" (1.0 mm) 0.12" (3.0 mm)
HT-151-00234 0.59" (15 mm) 0.87" (22 mm) 0.32" (8.13 mm) 0.12" (3.0 mm) 0.24" (6.0 mm)



Material Polyamide 6.6 high impact modified
Flammability UL 94
Operating Temperature -40°F to 284°F (-40 °C to 105 °C)

Standard Edge Clips

**Clips face different directions, see individual pictures for a better orientation**

PART # DESCRIPTION QTY MAX PANEL THICKNESS WEIGHT PRICE

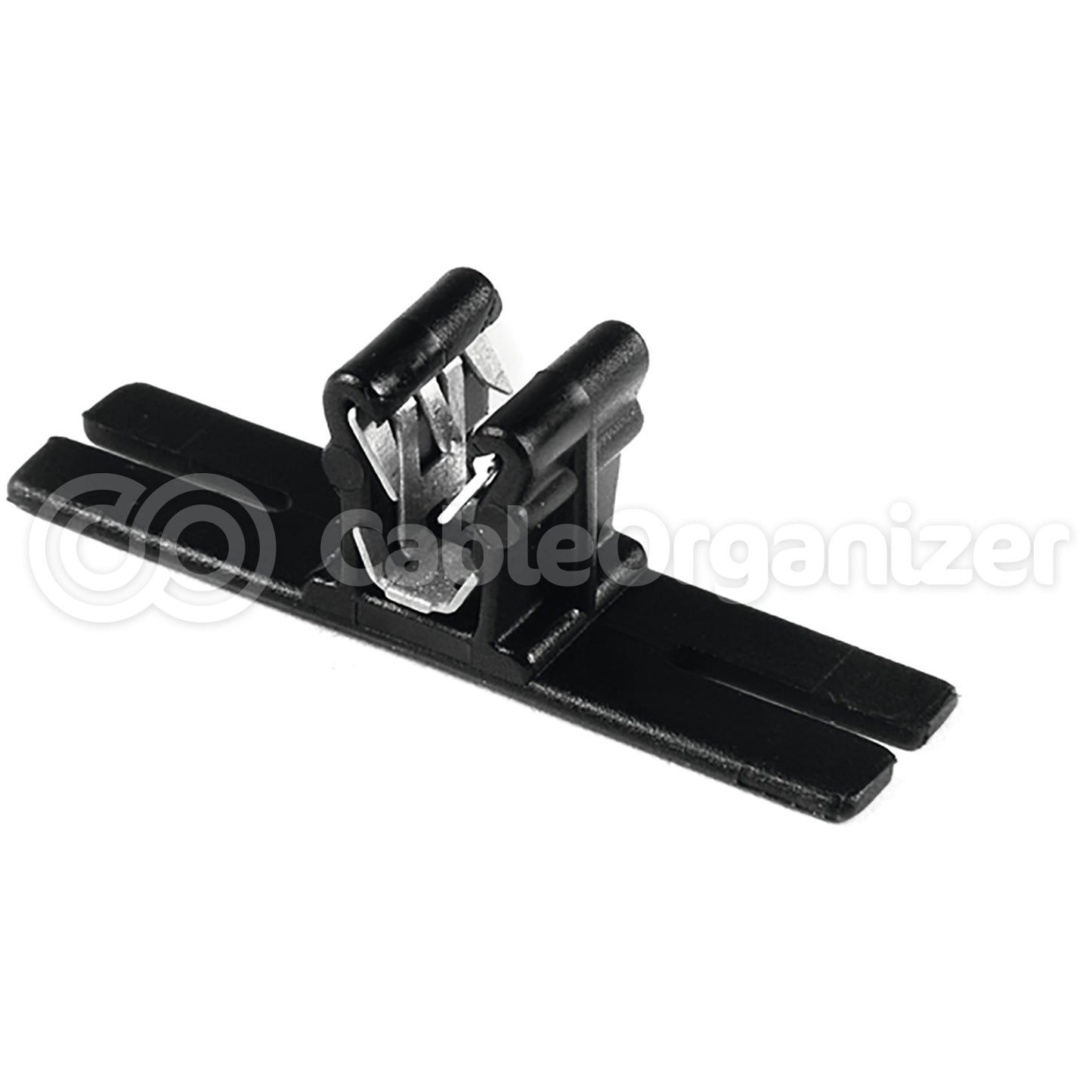

HT-151-03401 Edge Clip and Tape Clips 500 0.117" (3.0 mm) 4.01 lbs (1.82 kg)
Qty:
HT-151-03402 Edge Clip and Tape Clips 500 0.117" (3.0 mm) 4.01 lbs (1.82 kg)
Qty:
HT-151-03403 Edge Clip and Tape Clips 500 0.117" (3.0 mm) 4.01 lbs (1.82 kg)
Qty:
HT-151-03404 Edge Clip and Tape Clips 500 0.039" (1.0 mm) 4.01 lbs (1.82 kg)
Qty:

Edge Clips with Integrated Clamps
HT-151-00174 Edge Clip Cable Clamp, Panel - 00174 250 0.62" (15.6 mm) 2.00 lbs (.91 kg)
Qty:
HT-151-00234 Edge Clip Cable Clamp, Panel - 00234 750 0.32" (8.13 mm) 5.92 lbs (2.68 kg)
Qty:
