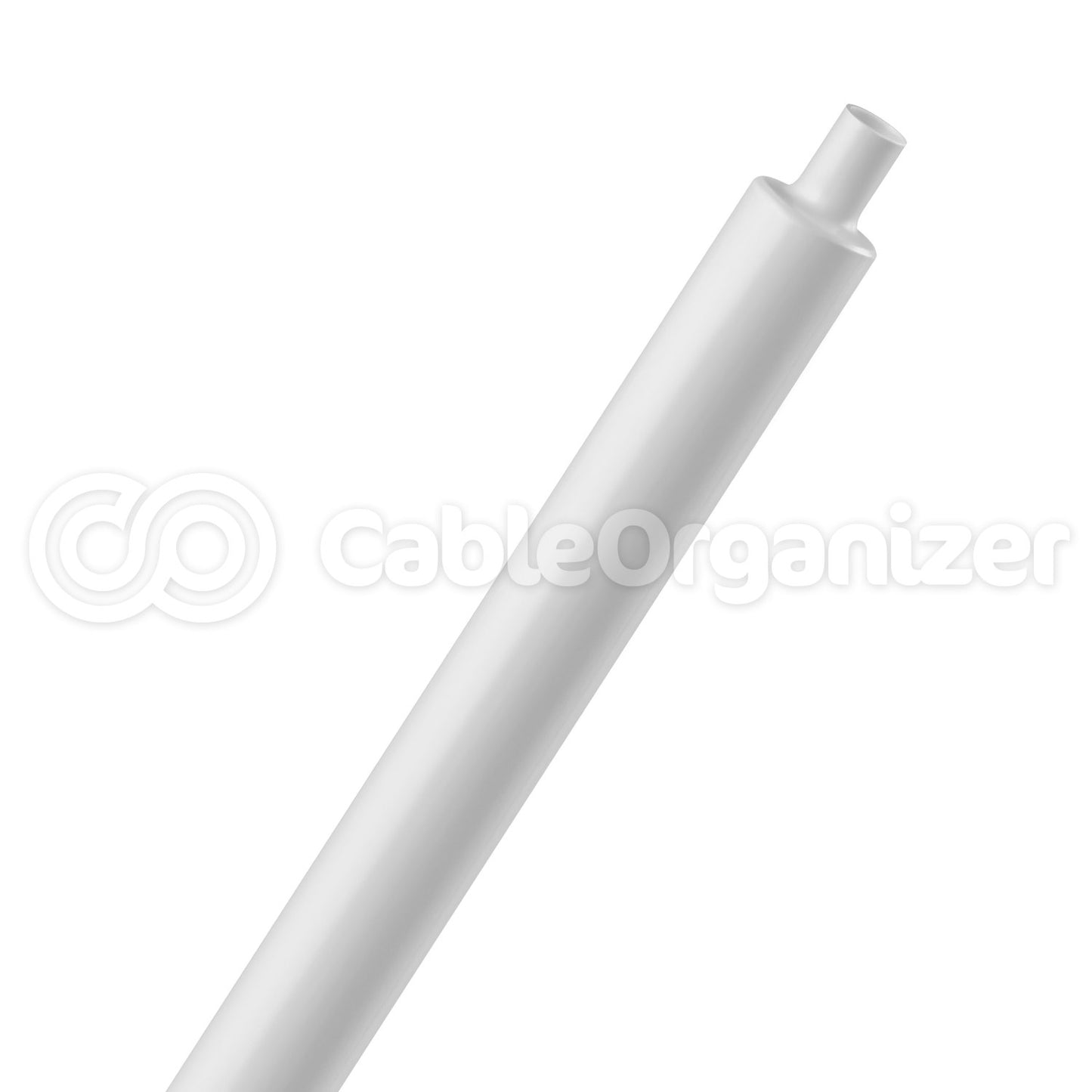

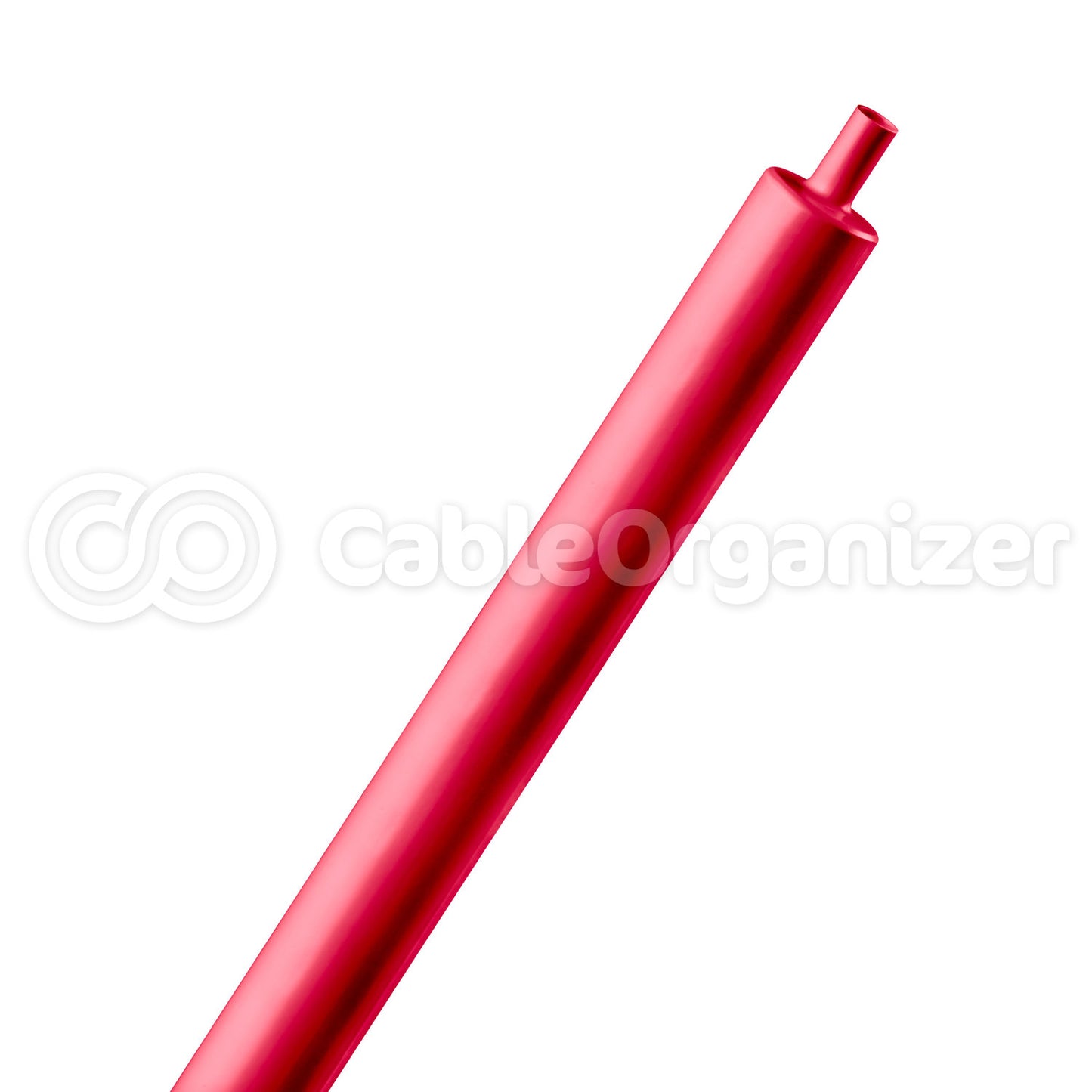

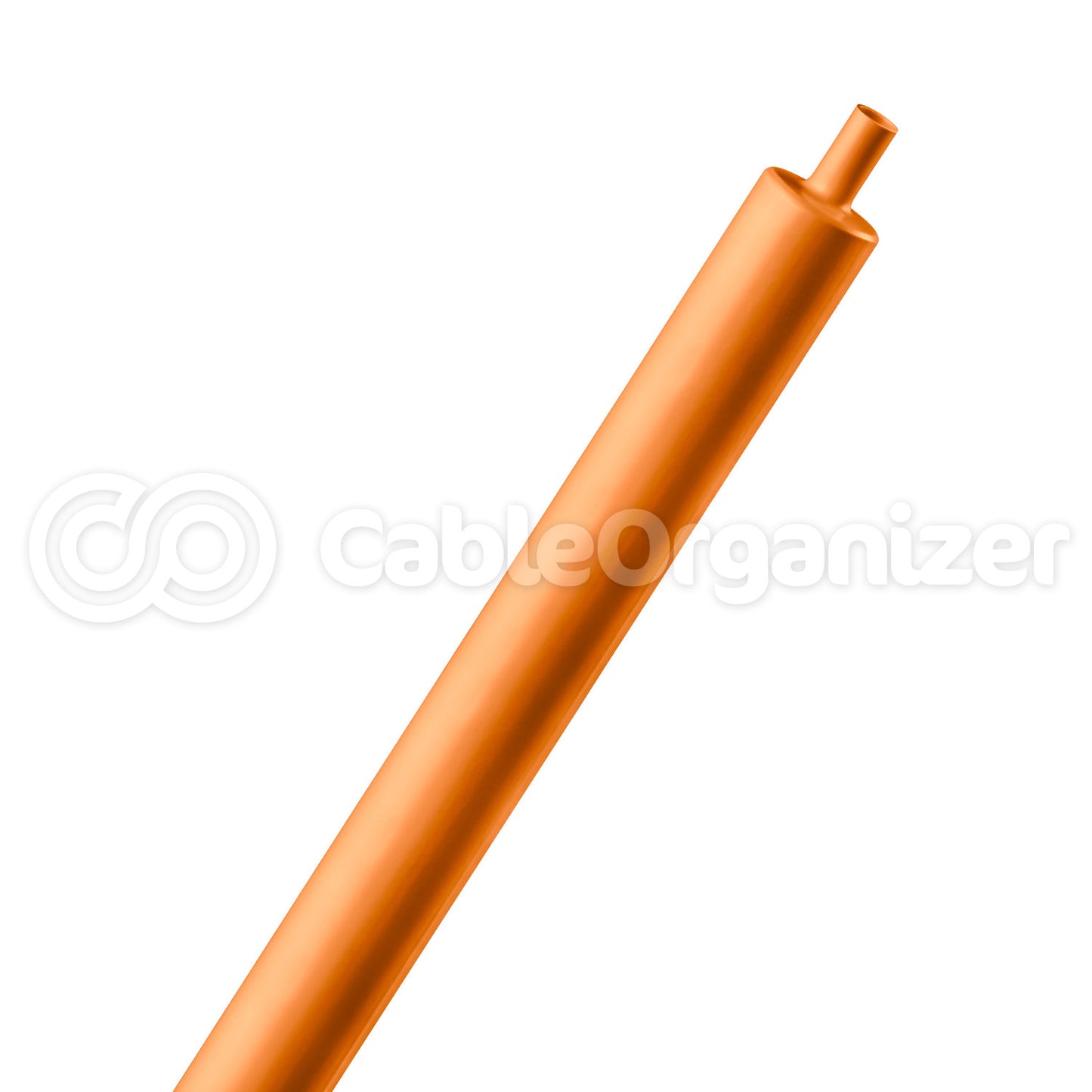

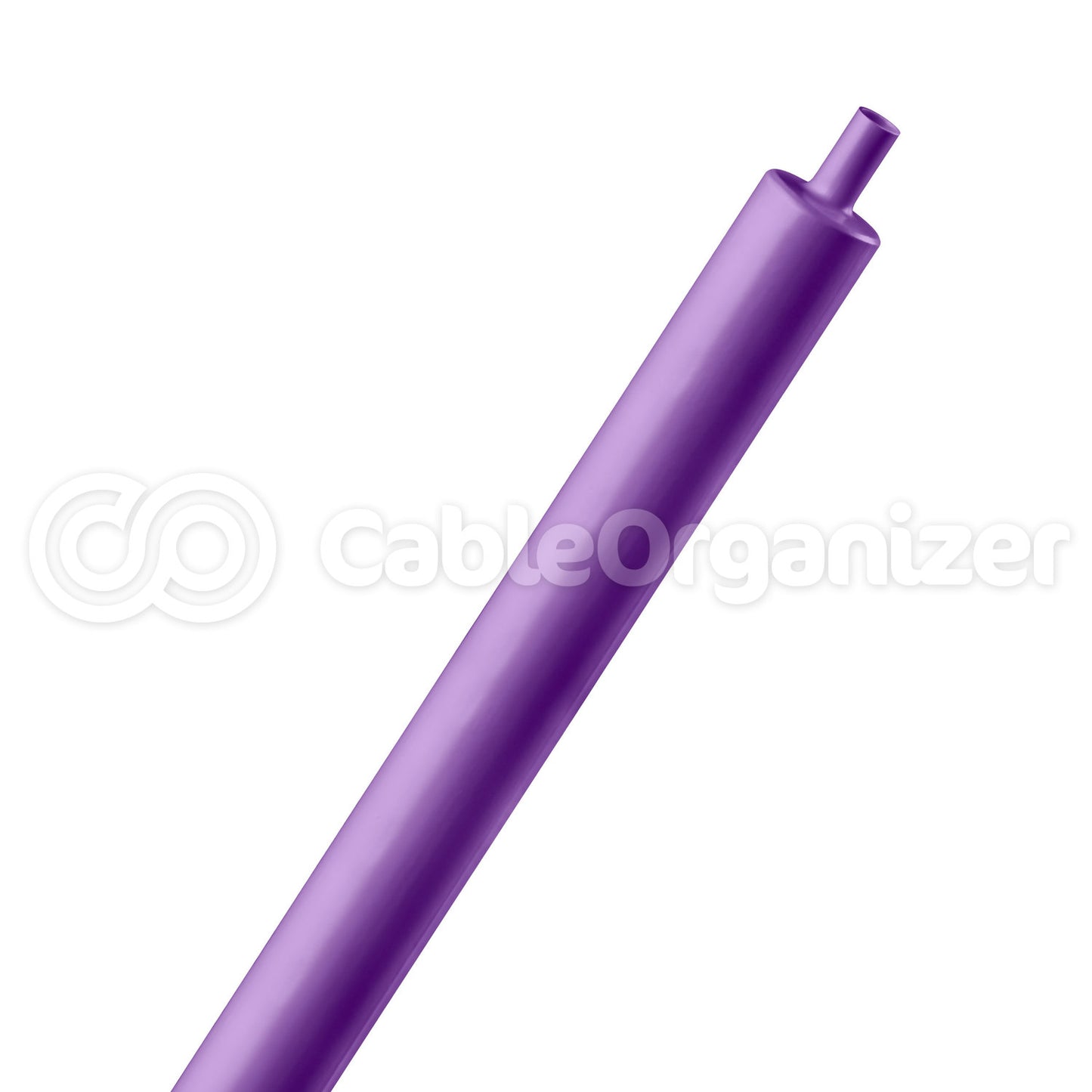

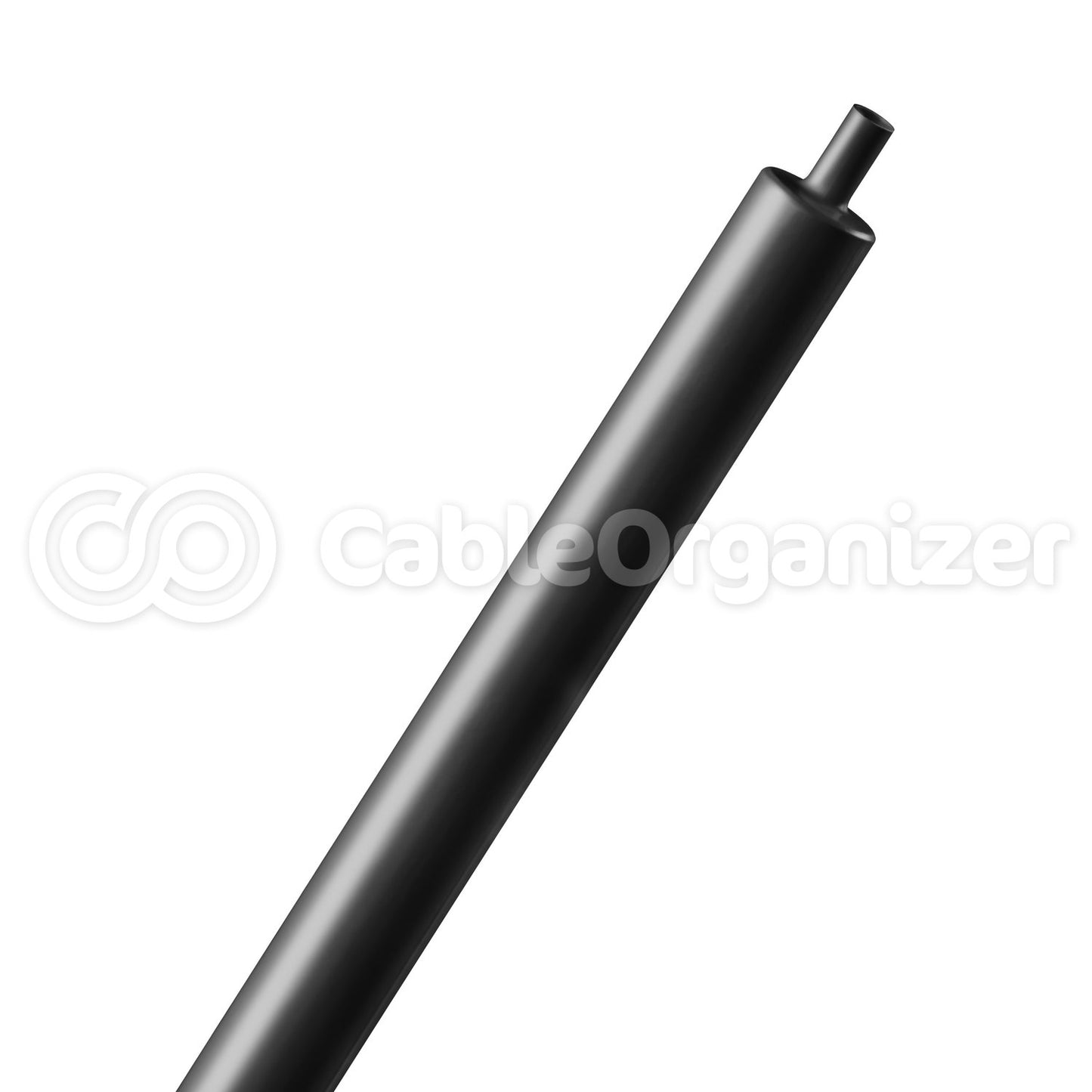

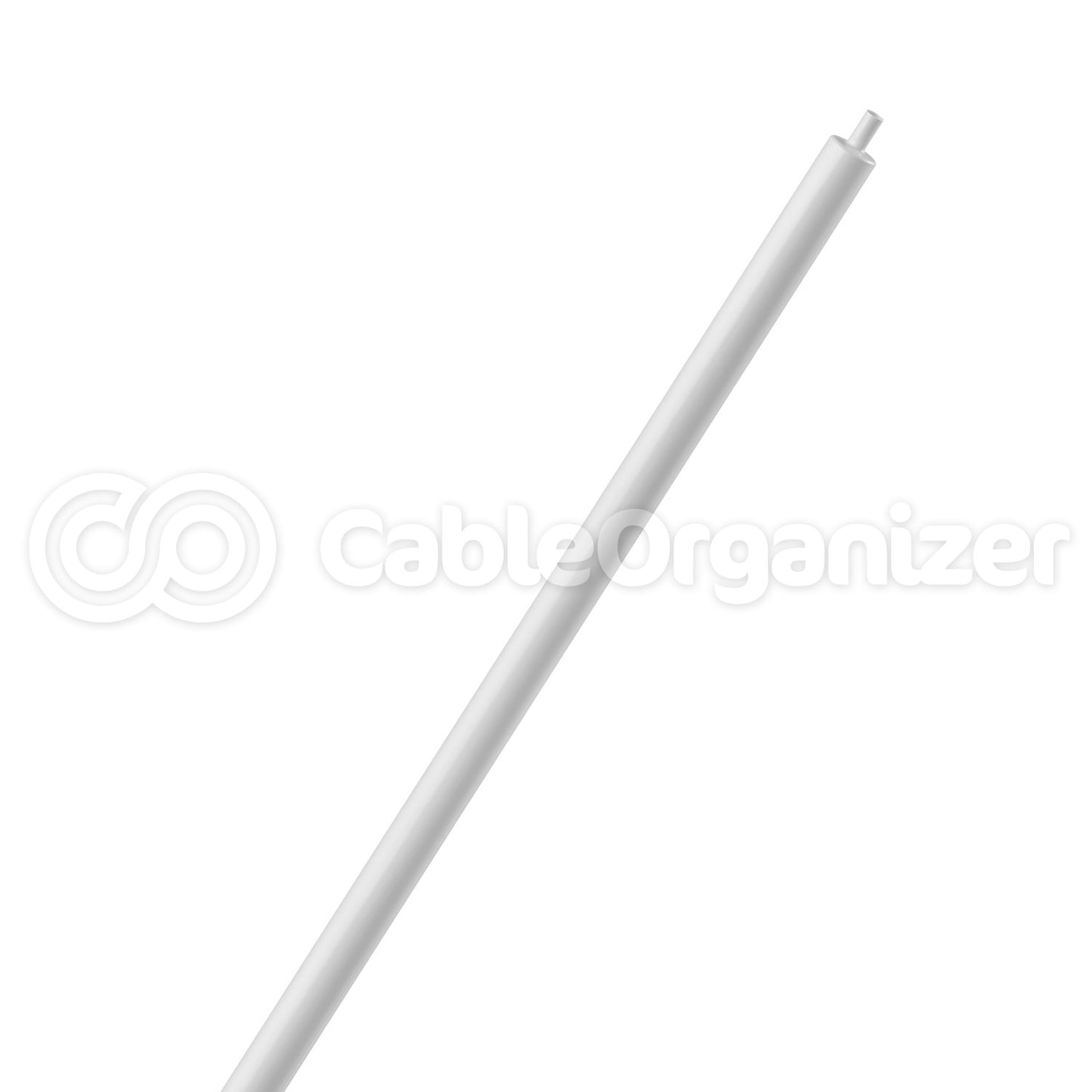

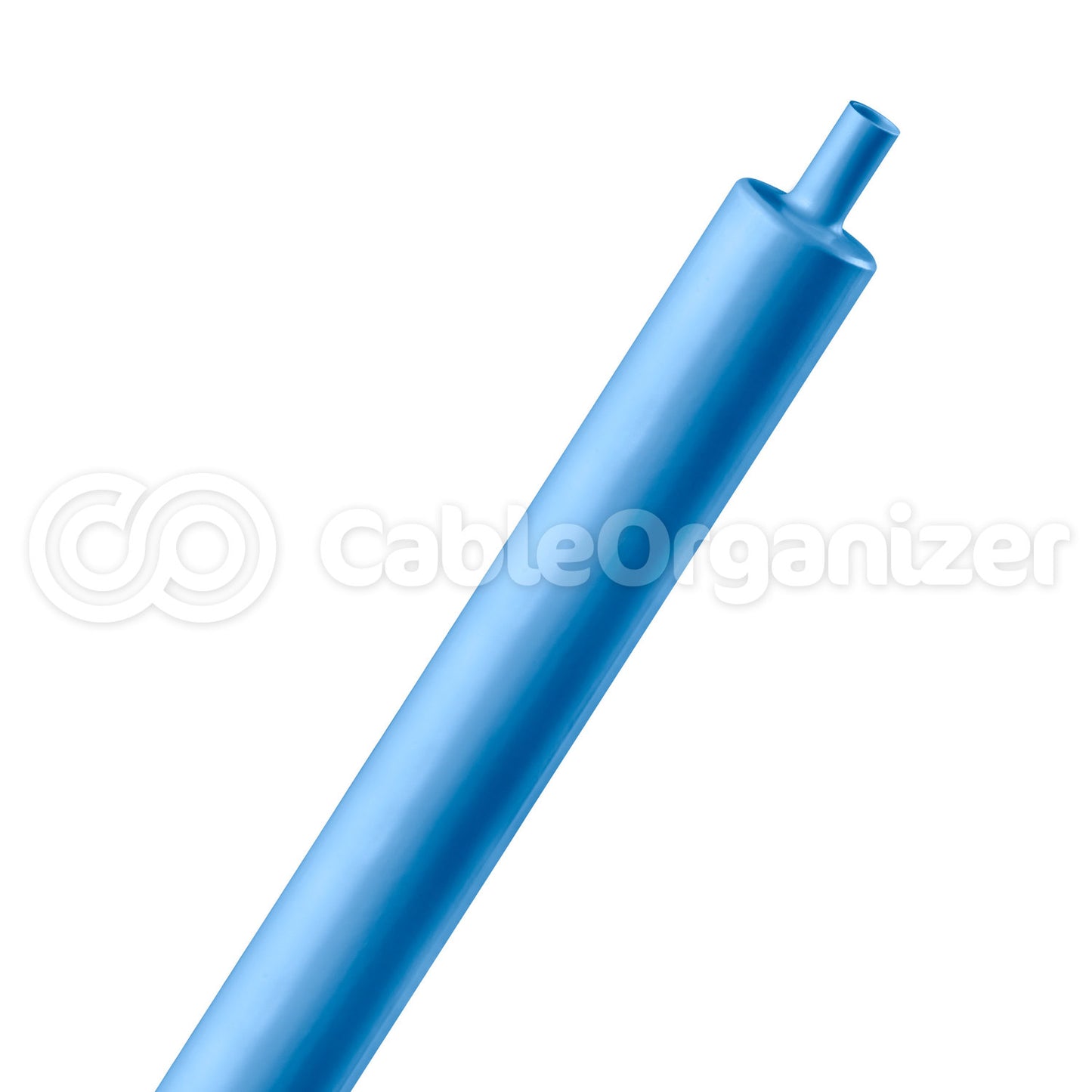

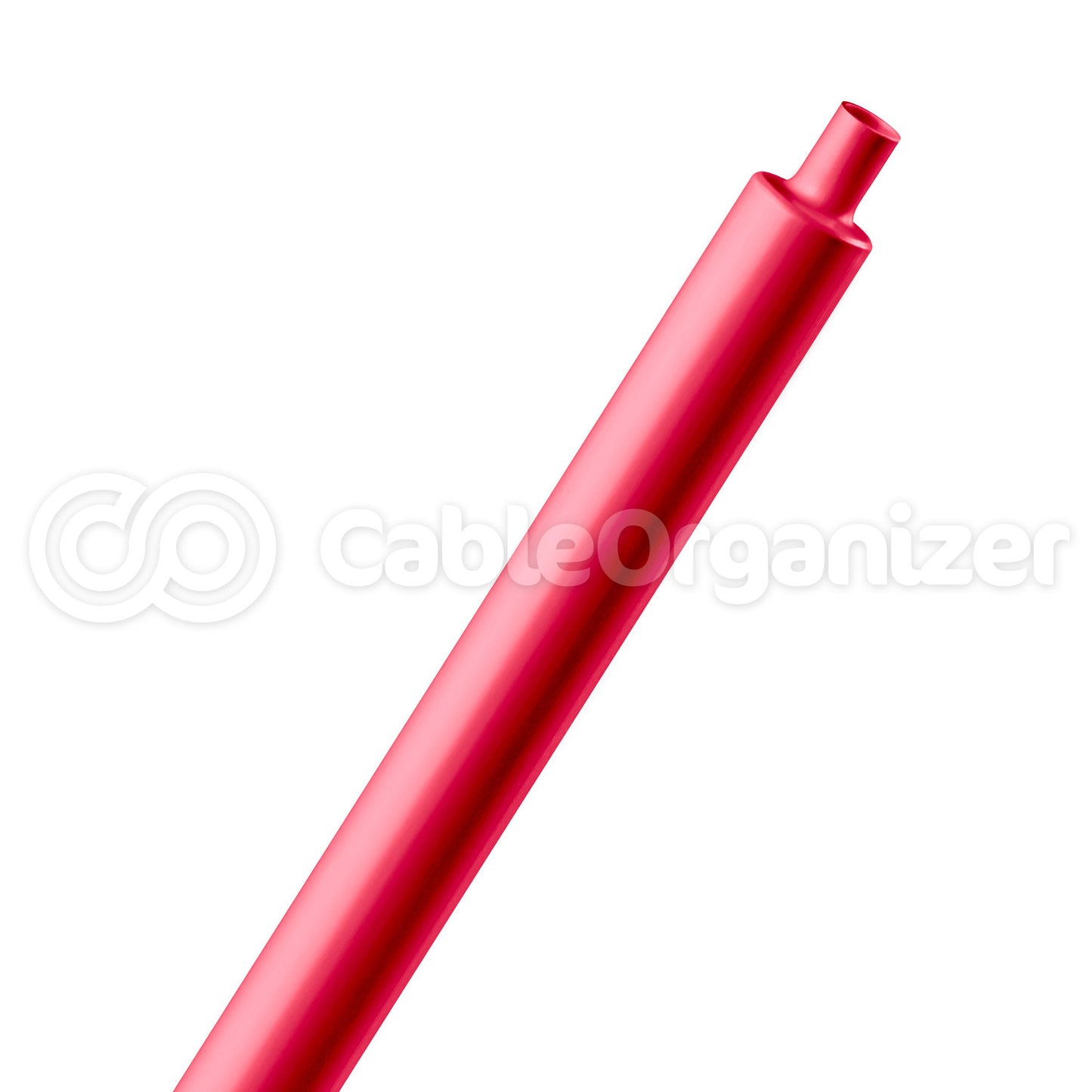

3:1 Ratio Heat Shrinkable Tubing

Professional-Grade Polyolefin Tubing With or Without Adhesive Lining

Low Price Guarantee

HS3-0063FT

What's special about this flame retardant heat shrink?

  • 3:1 heat shrink ratio allows it to fit over the end of a large connector, but will still shrink down enough to seal to the cable
  • Choose between standard and dual wall (adhesive lined) styles
  • Optional “dual wall” heat shrink has adhesive lining that melts when heat is applied and re-solidifies after shrinking, creating a snug, watertight bond between the tubing and cable
  • Available in several colors, making it easy to match your wiring scheme or color-code cables and connectors
  • Can be purchased by the foot or in bulk spools, so you get as much as you need
  • Click for More Features
Passes UL VW-1 Flame TestRoHS Compliant

Our 3:1 heat shrink tubing is an effective way to insulate cables, provide extra strain relief, or professionally finish the ends of wire harnesses. The over-expanded tubing slides easily over bulky connectors, and then shrinks down to 33% of its original diameter to fit snugly around both connectors and the wires attached to them. For an extra tight bond, choose adhesive heat shrink, which efficiently and attractively terminates cable snakes, and prevents fraying along the cut edges of expandable braided sleeving.

Images

Videos

3:1 Heat Shrink - PER FOOT AND BULK

Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT
Due to the nature of the materials, all braided sleeving, wire loom, heat shrink, and spiral wrap products sold by the foot will not be refunded IN FULL if they are cut up in sections of 20' or shorter. 50% restocking fee on returns of 20 feet or less. 25% restocking fee if there is a reorder.



PER FOOT
Discount pricing is automatically calculated based on quantity entered at checkout.

PART # SIZE COLORS QTY DISCOUNT PRICE per Foot
Before After
HS3-0063FT 1/16" 1/48" Black 1 - 49 ft
Qty:
HS3-0125FT 1/8" 1/24" Black, Clear, Red, White, Yellow 1 - 99 ft
Qty:
100+ ft
HS3-0188FT 3/16" 1/16" Black, Clear, Red, White, Yellow 1 - 49 ft
Qty:
50+ ft
HS3-025FT 1/4" 1/12" Black, Clear, Red, White, Yellow, Purple 1 - 49 ft
Qty:
50+ ft
HS3-0375FT 3/8" 1/8" Black, Clear, Red, White, Yellow, Gray, Blue, Purple, Orange 1 - 49 ft
Qty:
50+ ft
HS3-050FT 1/2" 1/6" Black, Clear, Red, White, Yellow, Blue, Gray, Purple 1 - 49 ft
Qty:
50+ ft
HS3-075FT 3/4" 1/4" Black, Clear, Red, White, Yellow, Gray, Blue, Green, Purple, Orange 1 - 49 ft
Qty:
50+ ft
HS3-100FT 1" 1/3" Black, Clear, Red, White, Yellow, Blue, Green, Purple, Orange 1 - 49 ft
Qty:
50+ ft
HS3-150FT 1-1/2" 1/2" Black, Clear, Red, White, Yellow 1 - 49 ft
Qty:
50+ ft



BULK SPOOLS

PART # SIZE COLORS SPOOL QTY PRICE per Foot
Before After
HS3-0125SP500 1/8" 1/24" Black, Clear, Red, White 500 ft.
Qty:
HS3-0188SP250 3/16" 1/16" Black, Clear, Red, White, Yellow 250 ft.
Qty:
HS3-025SP250 1/4" 1/12" Black, Clear, Red, White, Yellow 250 ft.
Qty:
HS3-0375SP200 3/8" 1/8" Black, Clear, Red, White, Yellow 200 ft.
Qty:
HS3-050SP200 1/2" 1/6" Black, Clear, Red, White, Yellow 200 ft.
Qty:
HS3-075SP100 3/4" 1/4" Black, Clear, Red, White, Yellow 100 ft.
Qty:
HS3-100SP100 1" 1/3" Black, Clear, Red, White, Yellow 100 ft.
Qty:
HS3-150SP100 1-1/2" 1/2" Black, Clear, Red, White 100 ft.
Qty:

3:1 Heat Shrink - Technical Specifications. click here
For military specifications and a manufacturers' cross reference, click here
Normally our policy is to supply continuous lengths. If it is absolutely necessary to receive one continuous length, please specify.



Select from the below list of available options to see it on the left.

NOTE: Due to differences in monitor settings, the examples show may vary slightly from the actual product.
NOTE: Not all options may be represented.





Dual Wall 3:1 - PER FOOT

Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT
Due to the nature of the materials, all braided sleeving, wire loom, heat shrink, and spiral wrap products sold by the foot will not be refunded IN FULL if they are cut up in sections of 20' or shorter. 50% restocking fee on returns of 20 feet or less. 25% restocking fee if there is a reorder.

The longest continuous length available is 4 ft.

PART # BEFORE SHRINKING AFTER SHRINKING COLOR PRICE / FOOT
HS3A-0125FT 1/8 in. 0.04 in. Clear, Black and Red
Qty:
HS3A-025FT 1/4 in. 0.08 in. Black, Blue, Red, Yellow, Green, Clear
Qty:
HS3A-0375FT 3/8 in. 0.125 in. Yellow, White, Black, Red, Clear, Blue
Qty:
HS3A-050FT 1/2 in. 0.167 in. Yellow, Black, Red, Clear, Blue, Green
Qty:
HS3A-075FT 3/4 in. 0.250 in. Yellow, Black, Red, Clear, Blue
Qty:
HS3A-100FT 1 in. 0.375 in. Yellow, Black, Red, Clear
Qty:
HS3A-150FT 1-1/2 in. 0.500 in. Black, Clear, Red
Qty:



Dual Wall 3:1 - CUT PIECES
Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT
Custom Sizes and Cut Pieces are NON-RETURNABLE and NON-REFUNDABLE

PART # BEFORE SHRINKING AFTER SHRINKING LENGTH / PIECE PIECES / PACK COLOR PRICE / PACK
HS3A-0125PCS-BK 1/8 in. 0.04 in. 6 in. 8 Black
Qty:
HS3A-025PCS-BK 1/4 in. 0.08 in. 6 in. 8 Black
Qty:
HS3A-0375PCS-BK 3/8 in. 0.125 in. 6 in. 6 Black
Qty:
HS3A-050PCS-BK 1/2 in. 0.167 in. 6 in. 6 Black
Qty:
HS3A-075PCS-BK 3/4 in. 0.250 in. 6 in. 4 Black
Qty:
HS3A-100PCS-BK 1 in. 0.333 in. 6 in. 3 Black
Qty:
HS3A-150PCS-BK 1-1/2 in. 0.500 in. 6 in. 2 Black
Qty:

Normally our policy is to supply continuous lengths. If it is absolutely necessary to receive one continuous length, please specify.

  • High shrink ratio helps to seal and protect awkwardly-shaped objects with varying diameters
  • Flame retardant and heat resistant to protect cables against damage from high temperatures
  • Adhesive lining (included in the "dual wall" option) creates a tight seal between tubing and wires, so that the tubing won't shift or slide off
  • Less than 10% shrinkage in the axial (lengthwise) direction, so you can better estimate the length of material you will need
  • Passes UL VW-1, CSA OFT, -F- MARK for safety specifications

3:1 Heat Shrink is ROHS (Restriction of Hazardous Substances) Compliant

Adhesive Lined Tubing

The adhesive version of our 3:1 heat shrink features "dual-wall" design, which is made up of an outer polyolefin (heat shrink) tube lined with a interior coating of heat-activated adhesive. During application, as the outer tubing shrinks, the inner layer melts, flows, and then resets when cooled, helping the tubing to achieve a snug, moisture-resistant fit around wire harnesses, cables and connectors. We recommend it for applications that require strain relief, watertight seals, or wire color-coding (for example, to help identify positive and negative battery connections).

3:1 Heat Shrink Technical Specifications
Minimum Shrink Temperature: 120° C

Size Expanded Recovered
Internal Diameter Minimum (D) Internal Diameter Maximum (d) Minimum Total Wall Thickness (t)
Metric (Inch) In. mm in. mm in. mm
1.5mm (1/16") 0.059 1.5 0.020 0.5 0.0157 0.40
3mm (1/8") 0.118 3.0 0.039 1.0 0.0120 0.50
4.5mm (3/16") 0.177 4.5 0.059 1.5 0.0212 0.54
6mm (1/4") 0.235 6.0 0.078 2.0 0.0232 0.59
9mm (3/8") 0.354 9.0 0.118 3.0 0.0268 0.68
12mm (1/2") 0.472 12.0 0.157 4.0 0.0268 0.68
18mm (3/4") 0.708 18.8 0.236 6.0 0.0303 0.77
24mm (1") 0.945 24.0 0.315 8.0 0.0354 0.90
38mm (1-1/2") 1.496 38.0 0.512 13.0 0.0409 1.04



PHYSICAL PROPERTY TEST METHOD TYPICAL VALUE
Tensile Strength (psi) ASTM D 638 1500 min.
Elongation (%) ASTM D 638 200 min.
Specific Gravity ASTM D 792 1.35 max.
Low Temperature Flexibility -55°C MIL-DTL-23053 no cracking
Heat Shock 4 hours at 250°C MIL-DTL-23053 no cracking
Heat Resistance (175°C, 168 hrs.)
Elongation (%)
ASTM D638 100 min.
Secant Modulus (psi) ASTM D 882 2.5 x 10,000 max.
Longitudinal Change (%) MIL-DTL-23053 +-5
Electrical
Dielectric Strength ASTM D 876 500 min.
Volume Resistivity ASTM D 876 1.0 x 10,000 min.
Chemical
Corrosion (175°C, 16hrs) MIL-DTL-23053 no corrosion
Water Absorption (%) ASTM D 570 0.5 max.
Fluid Resistance (23°C, 24 hrs.)
Tensile Strength (psi)
MIL-I-23053 1000 min.
Flammability UL 224 VW-1

pass

Shrink Temperature, Nominal   90°C



Application (Typical) General Purpose Over Expanded
Recovery Temperature 90°C
Flame Retardant YES
Continuous Operating Temperature -55° to 135°C
Flexibility Excellent
Abrasion Resistance Good
Solvent Resistance Good
UL Rating & File No. (Subject 224) 125°C, 600V
VW-1 (Jacket only for dual wall)
E48762
UL Catalog No. 826 Suffix 3X

Specification reference:
MIL-I-23053/5 Class 1 and Class 3. MIL-R-46846, Type V
UL 224 125°C, 600 V, VW-1 File E48762 YDPU2







LG heat shrinkable and non-shrinkable tubing products do not contain the compound Di (2-ethylhexyl) phthalate commonly referred to as DEHP.

In addition, LG heat shrinkable and non-shrinkable tubing products do not contain PFOS (perfluoroctane sulfonate), PFOA (perfluorocanoic acid) or Tinuvin 320.





Limiting Oxygen Index (LOI)
The ratio of how much oxygen - as compared to other gases - needs to be present in the air surrounding a particular material in order for that material to burn. The fact that Earth's normal atmospheric air contains around 21% oxygen is used a reference point when materials are classified into burn categories that are based on Limiting Oxygen Index. Substances that are combustible in air containing less than 21% oxygen are considered flammable, while those that burn in the range of anything greater than 21% but less than 28% are typically labeled "slow burning". Any material with an LOI that exceeds 28% is classified as self-extinguishing.

In the table below, you'll find a list of polymers commonly found in our heat shrink tubing and braided sleeving products, along with their LOIs and the burn categories each falls into.


MATERIAL ALTERNATE NAME LOI CATEGORY
ECTFE (Ethylene chlorotrifluoroethylene) Halar 64% Self Extinguishing
Nomex N/A 28% Slow Burning
Nylon 6:6 N/A Ranges fron 24-29% Slow Burning to Self Extinguishing
PET (Polyethylene Terephthalate) Mylar (film), Dacron (fiber) Ranges from 21-34% Slow Burning to Self Extinguishing
Polyethylene (PE) N/A 17% Flammable
Polypropylene (PP) polythene (in the UK) 17% Flammable
Polytetrafluoroethylene (PTFE) Teflon 95% Self Extinguishing
Polyvinyl Chloride (PVC) N/A Ranges from 45-49% Self Extinguishing
