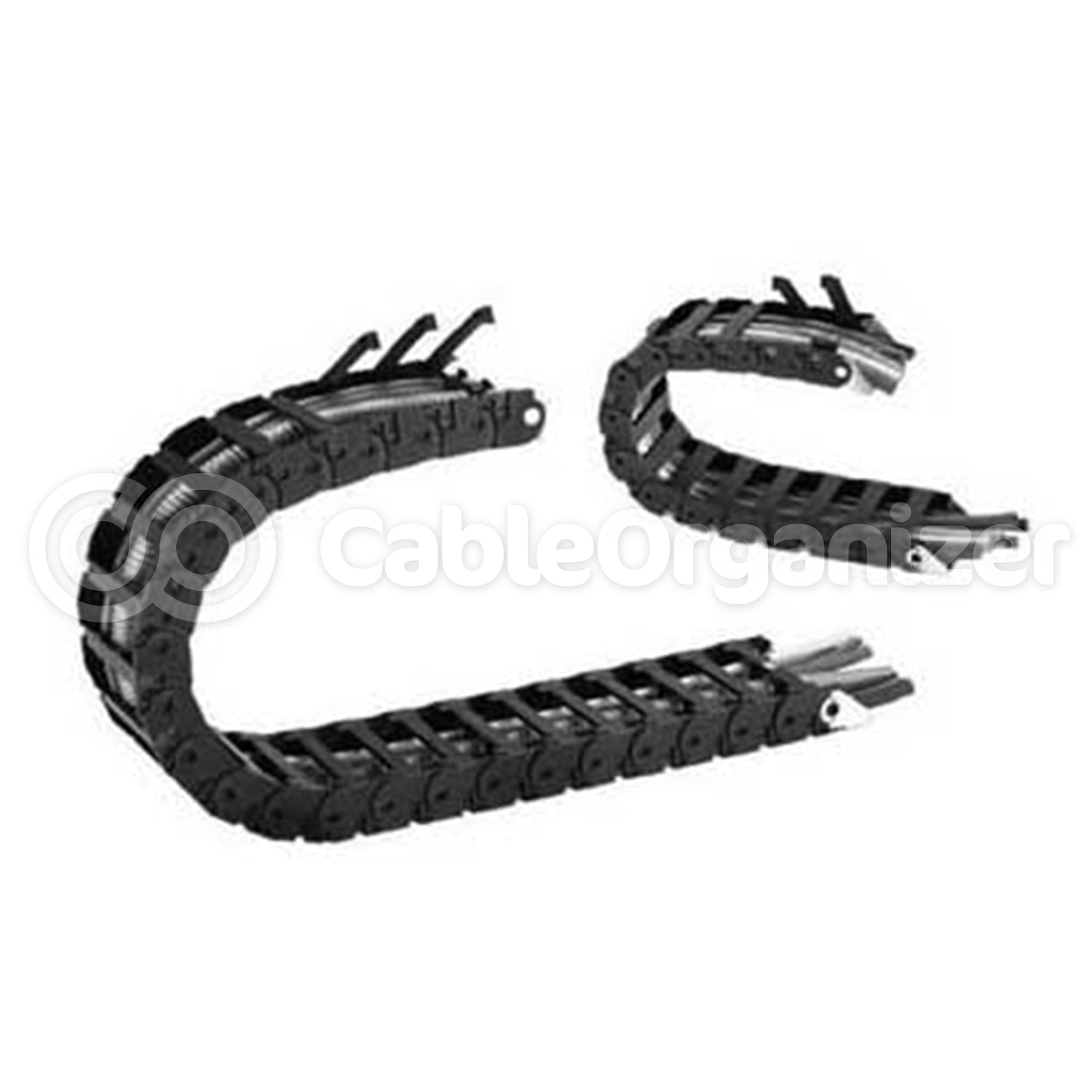

NYLATRAC™ KL Series Cable and Hose Carriers

    Additional Images
  • side view of nylatrac kl series cable carrier icon
  • nylatrac kl series cable carrier in use on a car wash icon
  • nylatrac kl series cable carrier mounting brackets icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2013 CableOrganizer.com

Low Price GuaranteeWhat's special about these cable carriers?

GSA approved
  • LINK HEIGHT 2.50 inches (63.50 mm)
  • Maintains proper bend radius of air, hydraulic, electric lines/cables
  • Non-metallic link type design
  • Non-conductive
  • Heavy duty Fiber reinforced nylon is corrosion resistant
  • Limited bend radius protects cables for optimal performance
  • Bulk pricing available
  • Click for More Features
Scroll To Pricing

Maintains proper bend radius of air, hydraulic, electric lines/cables. Non-metallic link type design. The KL Series is ideal for travel lengths up to 500 ft. A trough system is recommended for travels exceeding 15 Ft.



Standard Mounting Bracket

side view schematic of KL Nylatrac

cross section of KL series link

Part # A
INCHES/mm		 C
INCHES/mm		 Q
INCHES/mm		 Weight
#/Ft. KG/m
KL1 3.00/76.20 3.75/95.25 1.88/47.75 1.30/1.93
KL2 4.50/114.30 5.25/133.35 3.38/85.85 1.50/2.23
KL3 7.00/177.80 7.75/196.85 5.88/149.35 1.70/2.52



Height R
INCHES/mm		 H
INCHES/mm		 K
INCHES/mm		 CL
INCHES/mm
8.5 3.00/76.20 8.50/215.90 6.88/174.75 14.68/372.87
12 4.75/120.65 12.00/304.80 8.63/8219.20 20.18/512.57
14 5.75/146.06 14.00/355.60 9.63/244.40 23.31/592.07
18 5.87/149.10 13.10/332.74 8.00/203.20 21.75/554.45
26 11.75/298/45 18.00/457.20 15.60/396.24 42.18/1071.37



Recommendations:

  • Length (L)
    • Length requirement calculation: (Travel / 2) + ( Curve Length (CL)) + (Offset distance from center) = Length
    • Mount the stationary (fixed) end of the carrier at the center of travel, thus minimizing the required length.
    • If center mounting of the fixed end is not possible, add the distance offset from center to the carrier length calculation.
  • Interior Width (A):
    • For each cable, allow 10% Cable Clearance
    • For each hose, allow 20% Hose Clearance
    • Do not fill carrier over 60%
  • Height (H)
    • The overall height of the carrier at the loop. It is recommended that 2.5 inches clearance should be provided above the carrier to account for built in camber.
  • Radius (R)
    • The Radius of the carrier should be 8 times the largest cable or hose outside diameter.

Bulk Kits
Buy in Bulk and Save!!

ORDER INSTRUCTIONS:

Step 1 - Choose Interior Width (A) and Height (R) requirement., and choose appropriate Part #, Click Shopping Cart
Step 2 - Choose QUANTITY amount of FEET Length (L) required

Please Note: Orders of less than 50 ft. will ship in 2-3 business days. Orders of more than 50 ft. will ship in 5 business days.

PART # DESCRIPTION INTERIOR WIDTH "A" HEIGHT "R" SHIPPING WEIGHT
per KIT		 PRICE / KIT
inches mm inches mm
G-KL1-8.5-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL1-8.5-0 per 5 Feet + Bracket (Pair) 3 76.2 3 76.2 8.3 lbs
$186.95 Qty:
G-KL1-12-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL1-12-0 per 5 Feet + Bracket (Pair) 3 76.2 4.75 120.65 8.3 lbs
$186.85 Qty:
G-KL1-14-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL1-14-0 per 5 Feet + Bracket (Pair) 3 76.2 5.75 146.05 8.3 lbs
$186.95 Qty:
G-KL1-18-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL1-18-0 per 5 Feet + Bracket (Pair) 3 76.2 5.87 149.1 8.3 lbs
$186.85 Qty:
G-KL1-26-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL1-26-0 per 5 Feet + Bracket (Pair) 3 76.2 11.75 298.45 8.3 lbs
$186.95 Qty:

G-KL2-8.5-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL2-8.5-0 per 5 Feet + Bracket (Pair) 4.5 114.3 3 76.2 9.3 lbs
$203.19 Qty:
G-KL2-12-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL2-12-0 per 5 Feet + Bracket (Pair) 4.5 114.3 4.75 120.65 9.3 lbs
$203.19 Qty:
G-KL2-14-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL2-14-0 per 5 Feet + Bracket (Pair) 4.5 114.3 5.75 146.05 9.3 lbs
$203.19 Qty:
G-KL2-18-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL2-18-0 per 5 Feet + Bracket (Pair) 4.5 114.3 5.87 149.1 9.3 lbs
$203.19 Qty:
G-KL2-26-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL2-26-0 per 5 Feet + Bracket (Pair) 4.5 114.3 11.75 298.45 9.3 lbs
$203.19 Qty:

G-KL3-8.5-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL3-8.5-0 per 5 Feet + Bracket (Pair) 7 177.8 3 76.2 10.3 lbs
$222.10 Qty:
G-KL3-12-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL3-12-0 per 5 Feet + Bracket (Pair) 7 177.8 4.75 120.65 10.3 lbs
$222.10 Qty:
G-KL3-14-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL3-14-0 per 5 Feet + Bracket (Pair) 7 177.8 5.75 146.05 10.3 lbs
$222.10 Qty:
G-KL3-18-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL3-18-0 per 5 Feet + Bracket (Pair) 7 177.8 5.87 149.1 10.3 lbs
$222.10 Qty:
G-KL3-26-0-5FTKIT Nylatrac KL Cable / Hose Carrier KL3-26-0 per 5 Feet + Bracket (Pair) 7 177.8 11.75 298.45 10.3 lbs
$222.10 Qty:

View Mounting Bracket  |  View Link Separator  |  View Bulk Kits

ORDER INSTRUCTIONS:

Step 1 - Choose Interior Width (A) and Height (R) requirement., and choose appropriate Part #, Click Shopping Cart
Step 2 - Choose QUANTITY amount of FEET Length (L) required

Please Note: Orders of less than 50 ft. will ship in 2-3 business days. Orders of more than 50 ft. will ship in 5 business days.

PART # DESCRIPTION INTERIOR WIDTH "A" HEIGHT "R" SHIPPING WEIGHT
per FOOT		 PRICE / FOOT
inches mm inches mm
G-KL1-8.5-0 Nylatrac™ KL Cable and Hose Carrier 3.00 76.20 3.00 76.20 1.5 lbs
$32.72 Qty:
G-KL1-12-0 Nylatrac™ KL Cable and Hose Carrier 3.00 76.20 4.75 120.65 1.5 lbs
$35.01 Qty:
G-KL1-14-0 Nylatrac™ KL Cable and Hose Carrier 3.00 76.20 5.75 146.05 1.5 lbs
$35.01 Qty:
G-KL1-18-0 Nylatrac™ KL Cable and Hose Carrier 3.00 76.20 5.87 149.10 1.5 lbs
$35.01 Qty:
G-KL1-26-0 Nylatrac™ KL Cable and Hose Carrier 3.00 76.20 11.75 298.45 1.5 lbs
$35.01 Qty:

G-KL2-8.5-0 Nylatrac™ KL Cable and Hose Carrier 4.50 114.30 3.00 76.20 1.7 lbs
$37.99 Qty:
G-KL2-12-0 Nylatrac™ KL Cable and Hose Carrier 4.50 114.30 4.75 120.65 1.7 lbs
$37.99 Qty:
G-KL2-14-0 Nylatrac™ KL Cable and Hose Carrier 4.50 114.30 5.75 146.05 1.7 lbs
$37.99 Qty:
G-KL2-18-0 Nylatrac™ KL Cable and Hose Carrier 4.50 114.30 5.87 149.10 1.7 lbs
$37.99 Qty:
G-KL2-26-0 Nylatrac™ KL Cable and Hose Carrier 4.50 114.30 11.75 298.45 1.7 lbs
$37.99 Qty:

G-KL3-8.5-0 Nylatrac™ KL Cable and Hose Carrier 7.00 177.80 3.00 76.20 1.9 lbs
$41.48 Qty:
G-KL3-12-0 Nylatrac™ KL Cable and Hose Carrier 7.00 177.80 4.75 120.65 1.9 lbs
$41.48 Qty:
G-KL3-14-0 Nylatrac™ KL Cable and Hose Carrier 7.00 177.80 5.75 146.05 1.9 lbs
$41.48 Qty:
G-KL3-18-0 Nylatrac™ KL Cable and Hose Carrier 7.00 177.80 5.87 149.10 1.9 lbs
$41.48 Qty:
G-KL3-26-0 Nylatrac™ KL Cable and Hose Carrier 7.00 177.80 11.75 298.45 1.9 lbs
$41.48 Qty:



Nylatrac™ KL Series Bracket - Pair (Strain Relief not included)

dimensional drawing of KL mounting bracket



PART # DESCRIPTION HOLE TO HOLE CENTER
DIMENSION "Q"		 SLOTTED MOUNTING HOLE DIMENSION SHIPPING WEIGHT PRICE / PAIR
inches mm
G-KL1-BRACKET Pair of Brackets KL1 Series Carrier 1.88 47.75 0.38" x 1.0" 1 lbs
$24.99 Qty:
G-KL2-BRACKET Pair of Brackets KL2 Series Carrier 3.38 85.85 0.38" x 1.0" 1 lbs
$27.49 Qty:
G-KL3-BRACKET Pair of Brackets KL3 Series Carrier 5.88 149.35 0.38" x 1.0" 1 lbs
$30.23 Qty:



Nylatrac™ KL Series Snap-In Separator

drawing of KL link separator

Note: one Separator required for each link that needs a separator, usually every 3-4 links

PART # DESCRIPTION SHIPPING WEIGHT PRICE EACH
G-KL0032-1 Separator for KL Series Carrier 0.1 lb
$1.61 Qty:
