Fiberglass Braided Sleeving



natural fiberglass braided sleeving

More Images
Watch Videos
Close Window

Fiberglass Braided Sleeving

    Videos
  • features and benefits to using fiberglass braided sleeving - icon

    Additional Images
  • fiberglass braided sleeving in white - icon
  • close up of fiberglass braided sleeving termination - icon
  • close up of fiberglass braided sleeving termination 2 - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2013 CableOrganizer.com

Fiberglass Sleeving - Natural

UL Recognized Component UL Flame Test logo

Low Price GuaranteeWhat's special about fiberglass braided sleeving?

  • Thermal Class 240°C
    • GSA approved
  • UL VW-1
  • Dielectric Grade C-3 (no dielectric guaranteed)
  • Resists solvents and engine fluids
  • RoHS Compliant1:1.25 expansion ratio
  • Click for More Features

CSA logoFiberglass (FG) sleeving is composed of a tightly braided, highly flexible, continuous filament E glass which has been heat-treated to remove starches and oils, and to "set" the braid. FG maintains about half of its strength at temperatures up to 750°C.

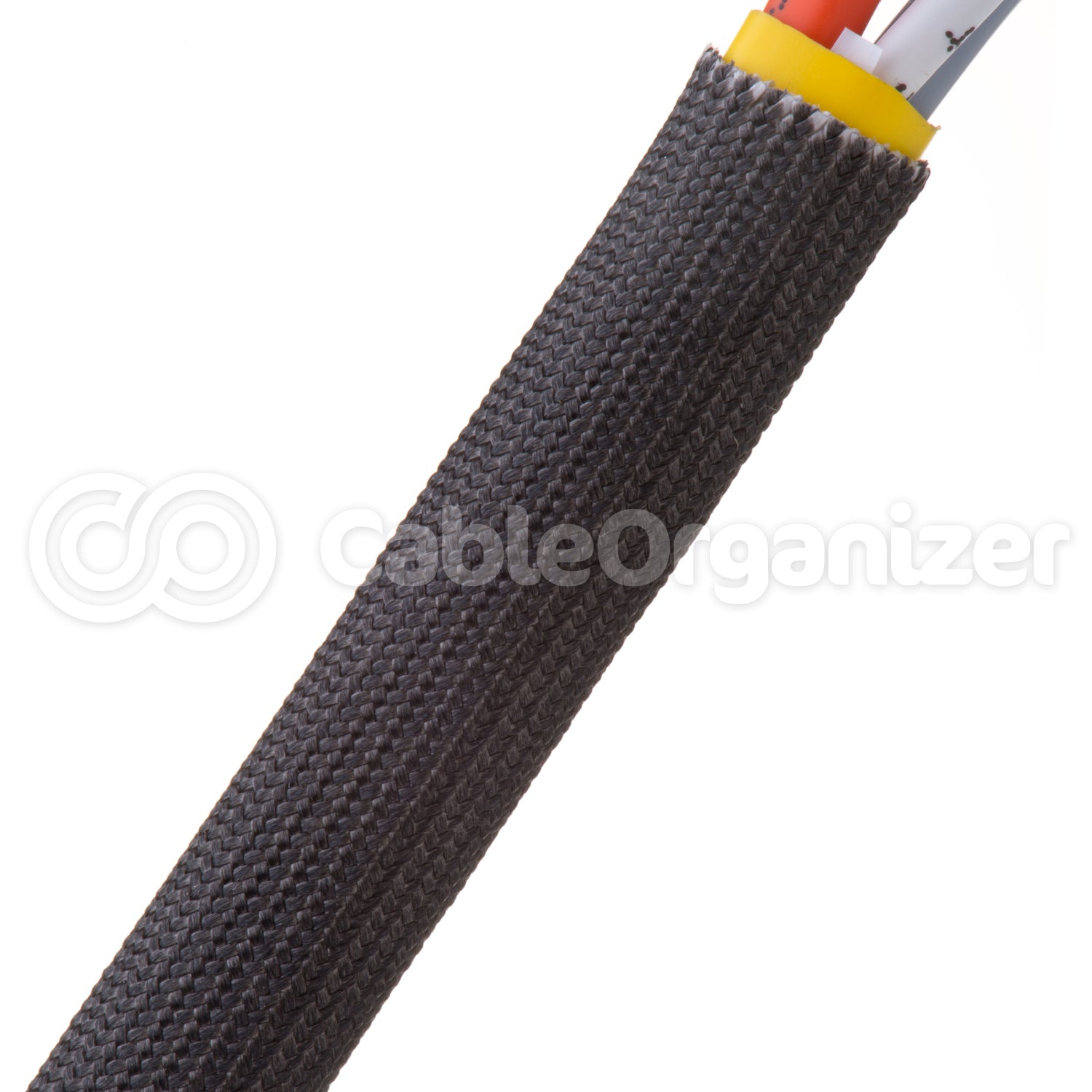

FG is available in Natural, Black, Tan, Red or Yellow. Saturated Fiberglass (FGS) sleeving is made in a similar fashion as the FG, except after heat treatment, it is saturated with acrylic resin formulated to provide excellent fray resistance when cut. The resin also stabilizes the fibers, which reduces operator skin irritation. Although the acrylic resin degrades at operating temperatures above 200°C, FGS continues to provide thermal and space factor insulation as high as 650°C with continuous operation at 450°C.

  • Thermal Class 240°C
  • UL VW-1
  • Dielectric Grade C-3 (no dielectric guaranteed)
  • Resists solvents and engine fluids
  • 1:1.25 expansion ratio
  • Lightweight and flexible
  • Compliant with the European Union's Restrictions on the use of Hazardous Substances (RoHS) Directive
  • Cuts easily with scissors
  • High abrasion resistance
  • Contains no asbestos
  • Non corrosive to metals
  • Excellent resistance to moisture, fungus and chemical attack
  • Continuous operating temperature -94°F to 1200°F



Fiberglass (FG) is used in high temperature, low voltage (up to 300V) applications such as toasters, coffee makers, and other small heating appliances. Its flexibility and expandability allows for use over irregular shapes. It is also used in wire harness assemblies as well as for thermal protection of insulated wires against damage from external heat sources. It is also an ideal choice for sleeving applications where varnishing or vacuum pressure impregnation is used.

Saturated Fiberglass (FGS) is used in high temperature, low voltage (up to 300V) applications such as toasters, coffee makers, and other small heating appliances. Its flexibility and expandability allows for use over irregular shapes. It is also used for thermal and cut-through protection in automotive wire harness assemblies as well as track, stage and other types of lighting devices.



Part # NEMA Grade UL CSA Temp. Class Applications
SPFG C3 E86619 094072 240° C Heating appliances, lighting fixtures when additional mechanical protection is required and space factor insulation is sufficient. Will with-stand use temperatures as high as 650°C.
SPFGS C3 E86619 094072 240° C Electric motors, heating appliances, cable harnesses.

View Measurement Conversion Chart

1/32" (0.030") Wall also available. Click here for more info

1/64" (0.015") Wall thickness
Please Note: These products ship within 4 weeks

AWG Size Min. Diameter
[inches]		 Max.
Diameter
[inches]		 Spool Size
(FT)		 Standard Heat Treated Fiberglass Fray Resistant (saturated) Fiberglass
Color: Natural Colors: Black, Tan, Red, Yellow
Part # Price Part # Price
24 0.022 0.027 500 SPFG024G
$63.80 Qty:
 SPFGS024G
$70.00 Qty:
22 0.027 0.032 500 SPFG022G
$64.40 Qty:
 SPFGS022G
$70.70 Qty:
20 0.034 0.039 500 SPFG020G
$65.80 Qty:
 SPFGS020G
$71.40 Qty:
18 0.042 0.049 500 SPFG018G
$66.60 Qty:
 SPFGS018G
$72.10 Qty:
17 0.047 0.055 500 SPFG017G
$67.20 Qty:
 SPFGS017G
$72.80 Qty:
16 0.053 0.061 500 SPFG016G
$68.60 Qty:
 SPFGS016G
$73.50 Qty:
15 0.059 0.066 500 SPFG015G
$69.40 Qty:
 SPFGS015G
$74.20 Qty:
14 0.066 0.072 500 SPFG014G
$70.00 Qty:
 SPFGS014G
$74.90 Qty:
13 0.076 0.080 250 SPFG013G
$36.80 Qty:
 SPFGS013G
$39.90 Qty:
12 0.085 0.089 250 SPFG012G
$38.50 Qty:
 SPFGS012G
$42.35 Qty:
11 0.095 0.101 250 SPFG011G
$39.90 Qty:
 SPFGS011G
$44.80 Qty:
10 0.106 0.112 250 SPFG010G
$41.70 Qty:
 SPFGS010G
$46.90 Qty:
9 0.118 0.124 250 SPFG009G
$44.80 Qty:
SPFGS009G
$49.35 Qty:
8 0.133 0.141 250 SPFG008G
$48.00 Qty:
 SPFGS008G
$52.50 Qty:
7 0.148 0.158 250 SPFG007G
$51.80 Qty:
 SPFGS007G
$57.40 Qty:
6 0.166 0.178 250 SPFG006G
$54.60 Qty:
 SPFGS006G
$61.95 Qty:
5 0.186 0.198 250 SPFG005G
$60.90 Qty:
 SPFGS005G
$66.50 Qty:
4 0.208 0.224 250 SPFG004G
$67.60 Qty:
 SPFGS004G
$74.55 Qty:
3 0.234 0.249 250 SPFG003G
$76.30 Qty:
 SPFGS003G
$82.25 Qty:
2 0.263 0.278 250 SPFG002G
$86.80 Qty:
 SPFGS002G
$97.30 Qty:
1 0.294 0.311 100 SPFG001G
$39.48 Qty:
 SPFGS001G
$45.36 Qty:
0 0.330 0.347 100 SPFG000G
$45.80 Qty:
 SPFGS000G
$50.26 Qty:
3/8" 0.387 0.399 100 SPFG0375
$68.20 Qty:
 SPFGS0375
$75.18 Qty:
7/16" 0.450 0.462 100 SPFG0438
$90.60 Qty:
 SPFGS0438
$103.46 Qty:
1/2" 0.512 0.524 100 SPFG050
$117.76 Qty:
 SPFGS050
$131.60 Qty:
5/8" 0.640 0.655 100 SPFG0625
$141.96 Qty:
 SPFGS0625
$158.48 Qty:
3/4" 0.786 0.786 50 SPFG075
$175.84 Qty:
 SPFGS075
$188.16 Qty:
7/8" 0.893 0.911 100 n/a SPFGS0875
$235.20 Qty:
1" 1.018 1.036 100 SPFG100
$252.00 Qty:
 SPFGS100
$282.24 Qty:
