Eagle Manufacturing® Ramps and Dockplates

Smoothly Transport Your Rolling Carts and Dollies


EM-1794
Qty:

What's special about these poly ramps?

  • Strong material can support loads between 750 lbs and 1000 lbs.
  • Dockplates comply with OSHA standard 1910.30(a) for safety on the jobsite.
  • Equipped with built-in guardrails to prevent carts or dollies from slipping off the sides of the ramp.
  • Click for More Features

Eagle Manufacturing’s® ramps and dock plates provide you with an instant and portable solution for loading and unloading materials. These sloped ramps make it easier for 2 or 4-wheel hand carts, dollies, and shipping containers to be loaded up or down a platform, curb, or other raised surface.

Please Note: These products ship within 3 business days

Part # Description Dimensions Capacity Weight Price
EM-1794 Eagle® Poly Curb Ramp, Yellow 27"L x 27"W x 4"H 1000 lbs 9 lbs
Qty:
EM-1795 Eagle® Portable Poly Dock Plate for Hand Trucks 36"L x 35"W x 5"H 750 lbs 37 lbs
Qty:
EM-1795CR Eagle® Shipping Container Ramp, Polyethylene 35"L x 36"W x 6"H 750 lbs 25 lbs
Qty:
EM-1796 Eagle® Fixed Poly Dock Plate for Hand Trucks 26"L x 35"W x 5"H 1000 lbs 20 lbs
Qty:
Installation Kits
Part # Description Weight Price
EM-1796KIT Eagle® Fixed Poly Dock Plate Installation Kit 30 lbs
Qty:
  • Allows dollies to roll smoothly up or down a curb, and prevents damage to inventory during transport.
  • Durable HDPE material is resistant to weather extremes, UV light, and abrasive chemicals for long-term use.
  • Reduce injuries associated with lifting heavy items by easily rolling them up or down a ramp.
  • Safety yellow color is highly visible, so the ramps are noticed in poor lighting conditions.
  • Lightweight with molded-in carry handles to provide ease of positioning and transport.
  •

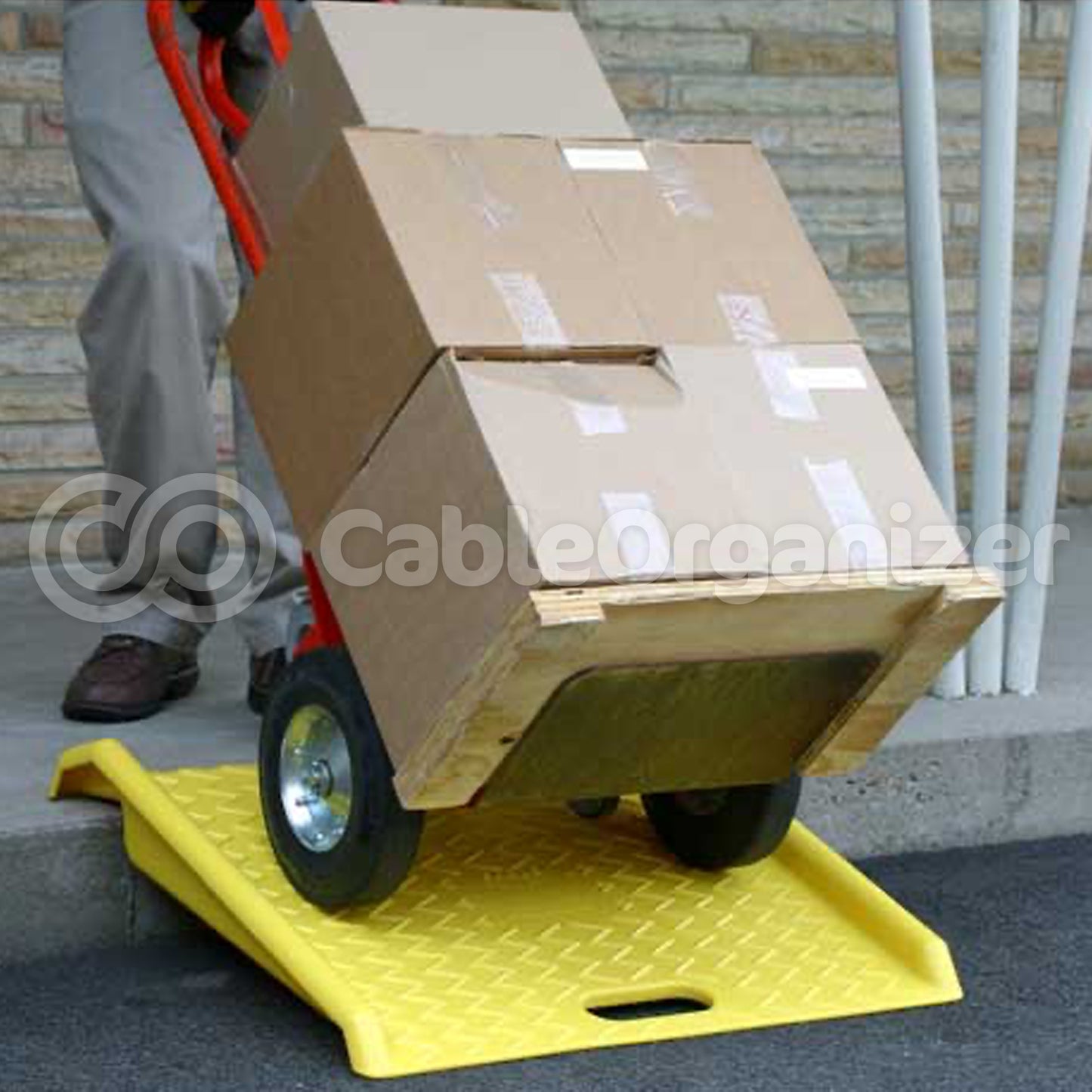

    1794 Poly Curb Ramp:

  • Raised surface provides a non-slip grip and greater traction, even in wet weather conditions.
  • Ideally suited for curbs up to 8” high.
  •

    1795 Portable Poly Dockplate:

  • Equipped with a raised non-slip surface to provide traction.
  • Entry and exit edges are beveled for greater surface hold.
  • 4" height differential capability.
  • Powder coated steel legs for extra support.
  •

    1795CR Shipping Container Ramp:

  • Equipped with a hook-rail that attaches to the door-keepers to provide a secure 3-point contact with added support across the full width of the ramp.
  • Also includes a tab that inserts into the door-keepers to prevent the ramp from moving side to side while in use.
  •

    1796 Fixed Poly Dockplate:

  • Equipped with UV inhibitors for durability during prolonged outdoor use.
  • Lift and lower design reduces injuries associated with heavy lifting.
  • Installs easily to metal or concrete dock facings using installation kit (EM-1796KIT sold separately).
  • Features a 6-foot slide bar to center onto trucks and to store out of the way when not in use.
  •

    Part # EM-1794 EM-1795 EM-1795CR EM-1796
    Width 27" 35" 35" 35"
    Length 27" 36" 36" 26"
    Height 4" 5" 6" 5"
    Load Capacity 1000 lbs 750 lbs 750 lbs 1000 lbs
    Weight 9 lbs 37 lbs 25 lbs 20 lbs
    Maximum Incline 8" 4" 10" 4"
    Material Yellow HDPE Yellow HDPE Yellow HDPE Yellow HDPE



    Chemical Resistance Guide

    Reagent 70° F
    (21° C)
    140° F
    (60° C)
    Reagent 70° F
    (21° C)
    140° F
    (60° C)
    Acetaldehyde S O Castor oil conc. S S
    Acetic acid 1-10% S S Catsup S S
    Acetic acid 10-50% S O Caustic soda S O
    Acetic acid 50-100% S O Cedar leaf oil U U
    Acetic anhydride S S Cedar wood oil U U
    Acetone S S Chlorine liquid O U
    Acids, aromatic S S Chlorobenzene O U
    Acrylic emulsions S S Chloroform U U
    Adipic acid S S Chlorosulfonic acid 100% U U
    Aluminum chloride dilute S S Chrome alum sat'd. S S
    Aluminum chloride conc. S S Chromic acid 10-20% S O
    Aluminum fluoride conc. S S Chromic acid 50% S O
    Aluminum sulfate conc. S S Cider S S
    Alume (all ltypes) conc. S S Cinnamon S S
    Amino acetic acid S S Cinnamon oil U U
    Ammonia 100% dry gas S S Citric acid sat'd. S S
    Ammonium acetate S S Citronella oil O U
    Ammonium bromide S S Cloves (ground) S S
    Ammonium carbonate S S Coconut oil alcohols S S
    Ammonium chloride sat'd. S S Cod liver oil S S
    Ammonium fluoride 20% S S Coffee S S
    Ammonium hydroxide S S Copper chloride sat'd. S S
    Ammonium metaphosphates sat'd. S S Copper cyanide sat'd. S S
    Ammonium nitrate sat's. S S Copper fluoride 2% S S
    Ammonium persulfate sat'd S S Copper nitrate sat'd. S S
    Ammonium phosphate S S Copper sulfate dilute S S
    Ammonium sulfate sat'd. S S Corn oil S S
    Ammonium sulfide sat'd. S S Cottonseed oil S S
    Ammonium thiocyanate sat'd. S S Cranberry sauce S S
    Amyl acetate 100% O U Creola S O
    Amyl alcohol 100% S S Cuprous chloride sat'd S S
    Amyl chloride 100% O U Cuprous oxide S S
    Aniline 100% S U Cyclohexane U U
    Anise seed oil O U Cyclohexanone U U
    Antimony chloride S S Decalin S U
    Aqua regla O U Detergents synthetic S S
    Aromatic hydrocarbons U U Developers photographic S S
    Arsenic S S Dextrin saturated S S
    Aspirin S S Dextrose saturated S S
    Barium carbonate sat'd. S S Dibutyl ether O U
    Barium chloride saturated S S Dichlorobenzane (O&P) U U
    Barium hydroxide S S Diethylene glycol S S
    Barium sulfate saturated S S Disodium phosphate S S
    Barium sulfide saturated S S Dioxane S S
    Beer S S Emulsions photographic S S
    Benzaldehyde S O Ether O O
    Benzene O U Ethyl acetate 100% O O
    Benzene sulfonic acid S S Ethyl alcohol 100% S S
    Benzic acid - Crystals S S Ethyl alcohol 35% S S
    Benzic acid - Saturated S S Ethylbenzene O U
    Bismuth carbonate sat'd. S S Ethylene glycol S S
    Black liquor S S Ferric chloride sat'd. S S
    Bleach lye 10% S S Ferric nitrate sat'd. S S
    Borax cold saturated S S Ferrous ammonium citrate S S
    Boric acid dilute S S Ferrous chloride sat'd. S S
    Brine S S Ferrous sulfate S S
    Bromic acid 10% S S Fluoboric acid S S
    Bromine liquid 100% O U Fluorine S U
    Bromochloromethane U U Fluosilicic acid 32% S S
    Butadlene U U Fluosilicic acid conc. S S
    Butanediol 10% S S Formaldehyde 10-30% S S
    Butanediol 60% S S Formaldehyde 30-40% S O
    Butanediol 100% S S Formic acid 20% S S
    Butter S S Formic acid 50% S S
    Butyl acetate 100% O U Formic acid 100% S S
    Butyl alcohol 100% S S Fructose saturated S S
    Butylene glycol S S Fuel oil S U
    Butylic acid 100% S S Furtural 100% O U
    Caffeine citrate saturated S S Furturyl alcohol S O
    Calcium bisulfide S S Galtic acid saturated S S
    Calcium bromide S S Gasoline S U
    Calcium carbonate sat'd. S S Glucose S S
    Calcium chlorate saturated S S Glycerin S S
    Calcium chloride saturated S S Glycol S S
    Calcium hydroxide S S Glycolic acid 30% S S
    Calcium hypochloride bleach sol'n S S Grape juice S S
    Calcium nitrate 50% S S Grapefruit juice S S
    Calcium sulfate S S Heptane O U
    Camphor crystals S S Hexachlorobenzene S S
    Camphor oil U U Hexane U U
    Carbon dioxide 100% dry S S Hydrobromic acid 50% S S
    Carbon dioxide 100% wet S S Hydrochloric acid 10% S S
    Carbon dioxide cold sat'd. S S Hydrochloric acid 30% S S
    Carbon disulphide O U Hydrochloric acid 35% S S
    Carbon monixide S S Hydrocyanic acid S S
    Carbon tetrachloride U U Hydrocyanic acid sat'd. S S
    Carbonic acid S S Hydrofluoric acid 40% S S
    Carnauba wax S S Hydrofluoric acid 60% S S
    Carrot juice S S Hydrofluoric acid 75% S S

    Hydrogen 100% S S    Silver S S
    Hydrogen bromide 10% S S    Tin S S
    Hydrogen chloride gas dry S S    Zinc S S
    Hydrogen peroxide 30% S S Potassium bicarbonate sat'd. S S
    Hydrogen peroxide 90% S O Potassium borate 1% S S
    Hydroquinone S S Potassium bromate 10% S S
    Hydrogen sulfide S S Potassium bromide sat'd. S S
    Hypochlorous acid conc. S S Potassium carbonate S S
    Inks S S Potassium chlorate sat'd. S S
    Iodine crystals O O Potassium chloride sat'd. S S
    Isobutyl alcohol S S Potassium cyanide sat'd. S S
    Isopropyl alcohol S S Potassium dichromate 40% S S
    Isopropyl ether O U Potassium ferri/ferro cyanide S S
    Kerosene O O Potassium nitrate sat'd. S S
    Lactic acid 10% S S Potassium perborate sat'd. S S
    Lactic acid 90% S S Potassium perchlorate 10% S S
    Lanolin S S Potassium permanganate 20% S S
    Lard S S Potassium sulfate conc. S S
    Lead acetate sat'd. S S Potassium sulfide conc. S S
    Lead nitrate S S Potassium sulfite conc. S S
    Lemon juice S S Potassium persulfate sat'd. S S
    Lemon oil O U Propane gas S S
    Lime juice S S Propergyl alcohol S S
    Linseed oil S S Propyl alcohol S S
    Magnesium sulfate sat'd. S S Propylene glycol S S
    Margarine S S Pyridine S O
    Magnesium carbonate sat'd. S S Rayon coagulating bath S S
    Magnesium chloride saturated S S Resorcinol S S
    Magnesium hydroxide sat'd. S S Sallcytic acid S S
    Magnesium nitrate sat'd. S S Sea water S S
    Mercuric chloride S S Shortening S S
    Mercuric cyanide sat'd. S S Silicic acid S S
    Mercurous nitrate sat'd. S S Silver nitrate sol'n. S S
    Mercury S S Soap solution conc. S S
    Methyl alcohol 100% S S Sodium acetate sat'd. S S
    Methyl ethyl ketone 100% U U Sodium benzoate 35% S S
    Methylsulfuric acid S S Sodium bicarbonate sat'd. S S
    Methylene chloride 100% U U Sodium bisulfate sat'd. S S
    Milk S S Sodium bisulfite sat'd. S S
    Mineral oils S U Sodium borate S S
    Molasses S S Sodium carbonate conc. S S
    Mustard (prepared) S S Sodium chlorate sat'd. S S
    Naphtha O U Sodium chloride sat'd. S S
    Napthalene S U Sodium cyanide S S
    Natural gas (wet) S S Sodium dichromate sat'd. S S
    Nickel chloride sat'd. S S Sodium ferricyanide sat'd. S S
    Nickel nitrate conc. S S Sodium ferricyanide S S
    Nickel sulfate S S Sodium fluoride sat'd. S S
    Nicotinic acid S S Sodium hydroxide conc. S S
    Nitric acid 0-30% S S Sodium hypochlorite S S
    Nitric acid 30-50% S O Sodium nitrate S S
    Nitric acid 70% S O Sodium nitrite S S
    Nitric acid 85-90% U U Sodium perborate S S
    Nitrobenzene 100% U U Sodium phosphate S S
    Nitroglycerine O U Sodium sulfide 25% to saturated S S
    Octane S S Sodium sulfite sat'd S S
    Oleura conc. U U Sodium thlosulphate S S
    Olive oil S S Soybean oil S S
    Orange juice S S Stannous chloride sat'd. S S
    Ozalic acid dilute S S Stannic chloride sat'd. S S
    Ozalic acid saturated S S Starch solution sat'd. S S
    Ozone O O Stearic acid 100% S S
    Palm oil S S Sulfuric acid 0-50% S S
    Paraffin oil S O Sulfuric acid 70% S O
    Peanut butter S S Sulfuric acid 80% S U
    Perchloroethylene U U Sulfuric acid 96% O U
    Pepper (fresh ground) S S Sulfuric acid 96% conc. O U
    Peppermint oil O U Sulfuric acid fuming U U
    Perchloric acid 50% S O Sulfurous acid S S
    Petroleum ether U U Tartaric acid S S
    Petroleum jelly S S Tannic acid 10% S S
    Phenol S S Tea S S
    Phosphoric acid 0-30% S S Tetrahydrofuran O O
    Phosphoric acid 30-90% S S Toluene U U
    Phosphoric acid over 90% S S Tomato juice S S
    Photographic solutions S S Transformer oil S O
    Phthalic anhydride S S Trisodium phosphate sat'd. S S
    Pickling baths (listed below) - - Trichloroethylene U U
       Sulfuric acid S S Turpentine O U
       Hydrochloric acid S S Urea S S
       Sulfuric-nitric S U Urine S S
    Pine oil O U Vanilla extract S S
    Plating solutions (listed below) - - Vaseline S S
       Brass S S Vinegar com. S S
       Cadmium S S Wetting agents S S
       Chromium S S Whiskey S S
       Copper S S Wines S S
       Gold S S Xylene U U
       Indium S S Yeast S S
       Lead S S Zinc chloride sat'd. S S
       Nickel S S Zinc oxide S S
       Rhodium S S Zinc sulfate sat'd. S S

    NOTE: The above information concerns general chemical resistance only. Since other factors such as permeation, ESCR, and container design are involved, full compativility testing is recommended.

    LEGEND:
    S = Satisfactory
    O = Some Attack
    U = Unsatisfactory
