Electrical Supplies > Cable Ties, Wraps and Clips > Cable Ties > Cable Ties - Nylon 6/6 General Purpose
Click image for larger view |

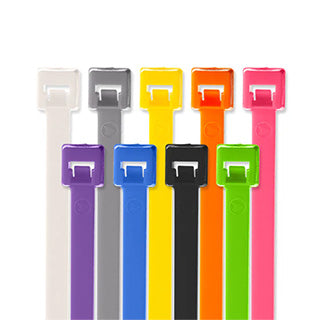

Cable Ties - Nylon 6/6 General Purpose
General purpose nylon 6/6 is suitable for use in most practical applications at a continuous temperature up to 150°F. Nylon 6/6, the grade most often used for cable tie production, meets UL 94V-2 flammability ratings. Its working temperature range is from 40°F to 185 °F. Our cable ties are widely used. They work great with our adhesive mounting bases.   |
)
- Smooth, rounded edges do not cut insulation - or hands - and are comfortable to work with.
- Closely spaced positive-locking teeth allow fine adjustment to tie bundles of all sizes.
- No metal parts; head and pawl are integrally molded for added strength and durability
- Self-locking, one-piece, low-profile head conserves space.
- V-shaped raised ridges on bent tip give a sure grip and easy pull-up.
- All RT Series cable ties have a bent tip for easier pickup, insertion and pull-up
Material Specifications
| Material | MAX. Operating Temperature |
MIN. Operating Temperature |
Tensile Strength at 73F Dry as molded ASTM D-638 (PSI) | UL Flame Rating |
| Nylon 6/6- General Purpose | 185° F 85° C |
-40° F -40° C |
12,000 | 94V-2 |
| Oxygen Index % | Gamma Radiation Resistance | UV Resistance | Military, Federal, & ASTM Specifications |
| 28 | 1 x 100000 Rads | Poor | ASTM-D4066 PA111 FDA CFR 177.1500 |
Military Specifications
| MIL-Spec | Length | Color |
| MS-3367-4-0 | 4 | UV Black |
| MS-3367-4-9 | 4 | Natural |
| MS-3367-4-2 | 4 | Red |
| MS-3367-4-3 | 4 | Orange |
| MS-3367-4-4 | 4 | Yellow |
| MS-3367-4-5 | 4 | Green |
| MS-3367-4-6 | 4 | Blue |
| MS-3367-4-7 | 4 | Purple |
| MS-3367-4-8 | 4 | Gray |
| MS-3367-5-9 | 5.5 | Natural |
Cables Ties Maximum Bundler Diameter
4" = 3/4" diameter
8" = 1-3/4" diameter
14" = 4" diameter
5.5" cable ties are used to secure up to a 1-1/4" diameter cable bundle.
7" cable ties are used to secure up to a 1-3/4" diameter cable bundle.
Black, Gray,White, Clear, Neon Pink, Red, Orange, Yellow, Neon Yellow, Neon Green,
Blue, Hunter Green, Purple. UV Reactive colors available in Green, Yellow, Pink, Orange
| Part # | Length | Width | Min. Loop Tensile | Colors | Quantity per Pack | PRICE Select color at checkout |
| CT04-100 | 4" | 0.09" | 18 lbs | Blue, Black, Brown, Clear, Green, Gray, Neon Green, Neon Pink, Neon Yellow, Orange, UV Reactive Orange, Orange, Purple, Red, Yellow | 100 | $5.99 |
| CT055-100CL | 5.5" | 0.18" | 40 lbs | Clear | 100 | $5.99 |
| CT07-100 | 7" | 0.18" | 40 lbs | Blue, Black, Brown, Clear, Green, Gray, Neon Green, Neon Pink, Neon Yellow, Orange, UV Reactive Orange, Purple, Red, Yellow | 100 | $6.75 |
| CT07-50LB-100 | 7" | 0.18" | 50 lbs | Black, Natural | 100 | $6.75 |
| CT12-50LB-100 | 12" | 0.18" | 50 lbs | Black, Natural | 100 | $8.95 |
| CT14-100 | 14" | 0.18" | 50 lbs | Blue, Black, Clear, Green, Gray, Neon Green, Neon Pink, Neon Yellow, Orange, UV Reactive Orange, Purple, Red, Yellow | 100 | $14.99 |
| CT14-120LB-100 | 14" | 0.25" | 120 lbs | Black, Natural | 100 | $17.99 |
| CT22-250LB-100 | 22" | 0.5" | 250 lbs | Black | 100 | $29.00 |
FREE REWARD: |
||||||
The following discounts will be reflected in the shopping cart when the proper quantity is entered
| Size | Number of Packs (100 per Pack) |
Price per Pack (100 per Pack) |
| 4", 5.5" | 1-4 | $5.99 |
| 4", 5.5" | 5-9 | $4.75 |
| 4", 5.5" | 10 - 99 | $4.00 |
| 4", 5.5" | 100+ | $2.50 |
| 7" | 1-4 | $6.75 |
| 7" | 5-9 | $5.75 |
| 7" | 10 - 99 | $5.45 |
| 7" | 100+ | $3.45 |
Instructional Video
"Get Flash player" http://www.adobe.com/products/flashplayer/
Having trouble seeing our video? Click here to view it on YouTube.
ARTICLES - A place to find educational articles covering a wide range of topics, all categorized according to your areas of interest. Learn more
CATALOG - PDF
For your convenience, we have made our brochure and catalogs available online in PDF format. Downloading the PDF catalog will take you no more than 5 minutes, so you won’t have to wait days for the print catalog. PDF catalogs include links to our products: just click on the hyperlinked product headings, and you’ll be directed right to our website.
Office
PDF Catalog 2 MB
Automotive PDF Catalog 2.6 MB
Datacom/Telecom PDF Catalog 5.7 MB

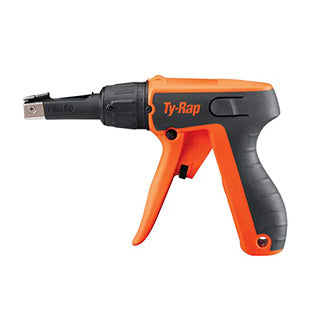

 Cable Tie Installation ToolsFrom $17.99 |
 Panduit GS4H Cable Tie Installation Tool Price $349.00 Choose Panduit’s ergonomic metal installation tool for any cable tie installation. The GS4H is easy to use with no maintenance required and comes with a 20-year warranty to protect your purchase. All Panduit products are manufactured and registered as ISO 9001:2000 quality certified. |
 Releasable Cable TiesFrom $4.99 Cable ties are a secure, convenient and inexpensive way to handle your wire management. |

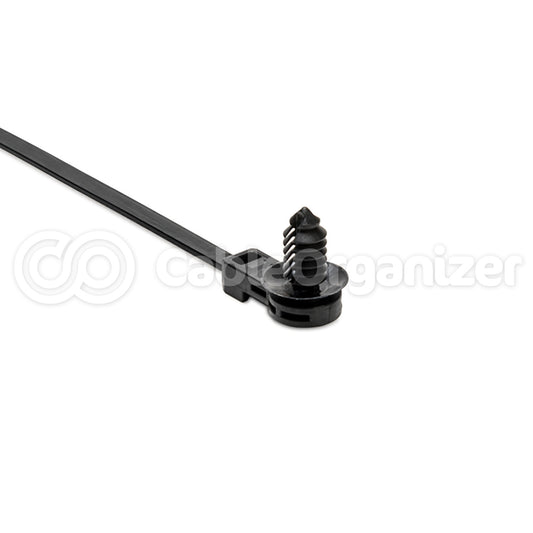

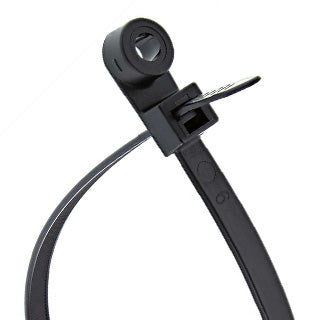

 Mounted Head Cable TiesFrom $8.99 |
