Black Box VGA Video Splitters

Link Multiple Monitors to One PC

Low Price Guarantee

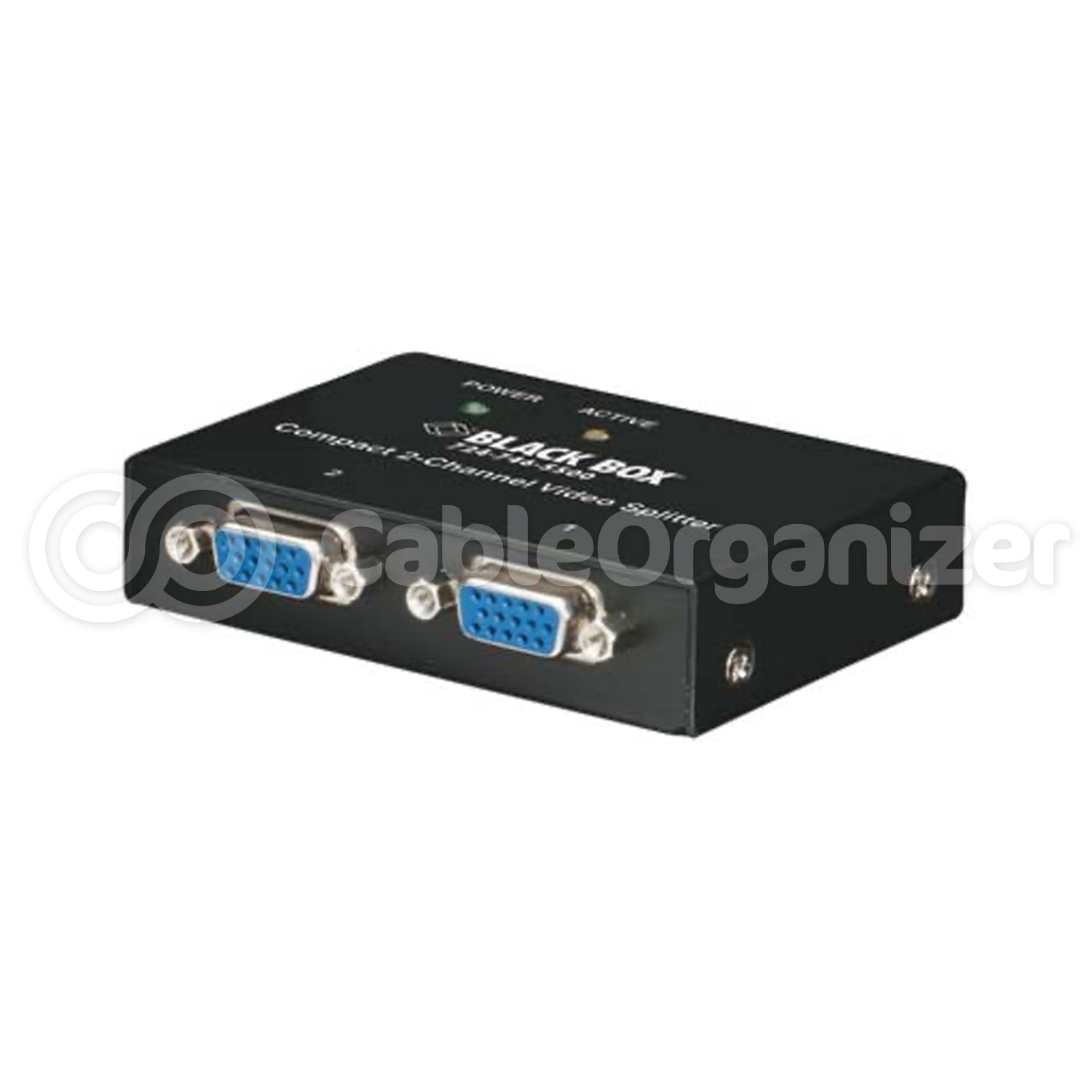

BB-AC1056A-2

What's special about these VGA splitters?

  • Allows you to send crisp, clear images to large audiences from your PC with multiple displays
  • Ideal for trade shows, points of sale, trainings, even public information systems displaying multimedia video
  • Enable you to broadcast your PC monitor displays on two, four, or eight monitors up to 210 feet (64 m) away
  • Click for More Features

Black Box VGA Video Splitters allow you to send clear eye-catching images to two, four, or eight monitors from your PC.  These video splitters are great for presentations, trade show or point of sale displays, or for displaying multimedia video to large audiences at sales or training meetings.

Images

PART # # CHANNELS DIMENSION WEIGHT PRICE
BB-AC1056A-2 2 0.9“H x 3.3“W x 2.7“D 0.40 lb
Qty:
BB-AC1056A-4 4 1.6"H x 3.3"W x 2.7"D 0.60 lb
Qty:
BB-AC1056A-8 8 1.6"H x 7.8"W x 2.7"D 1.30 lb
Qty:
  • Also may be used to distribute on-line information to workstations on a factory floor while maintaining the CPU (Take to definition) in a separate room
  • Choose between three options: 2-channel, 4-channel and 8-channel according to your multimedia presentation requirements
  • Automatic power-save function for situations when the VGA signal is lost and protects your information and multimedia presentations
  • Quick setup. Just connect the VGA cables, power up your system, and you're ready to start duplicating VGA images for multiple monitors
  • Includes VGA cables for input and output connections
  • You may cascade units to increase VGA outputs to connect more monitors allowing you to reach increased number of viewers
  • Provide clear, sharp images whether you're using VGA, Super VGA (SVGA), or multisync monitors
  • 2- and 4-channel splitters feature 350-MHz bandwidth; 8-channel model provides 300-MHz bandwidth
  • Double Diamond Warranty



PACKAGE CONTENTS:

  • AC1056A-2:
    • (1) video splitter
    • (1) 6-ft. (HD15 male/HD15 male) VGA input cable
    • (1) 10-ft. (HD15 male/HD15 female) VGA output cable
  • AC1056A-4:
    • (1) video splitter
    • (1) 6-ft. (HD15 male/HD15 male) VGA input cable
    • (1) 10-ft. (HD15 male/HD15 female) VGA output cable
  • AC1056A-8:
    • (1) video splitter
    • (1) 6-ft. (HD15 male/HD15 male) VGA input cable
    • (1) 10-ft. (HD15 male/HD15 female) VGA output cable



  2-channel 4-channel 8-channel
Maximum Distance: 210 ft. (64 m) 210 ft. (64 m) 210 ft. (64 m)
Pixel Frequency: 350 MHz 350 MHz 300 MHz
Maximum Resolution: 1920 x 1440 at 70 Hz 1920 x 1440 at 70 Hz 1920 x 1440 at 70 Hz
CE Approval: Yes Yes Yes
Connectors: Output: (2) HD15 F
Input: (1) HD15 F
Output: (4) HD15 F
Input: (1) HD15 F
Output: (8) HD15 F
Input: (1) HD15 F
Power: Input: 100–240 VAC, 50–60 Hz
Output: 5 VDC, 2 A
Input: 100–240 VAC, 50–60 Hz
Output: 5 VDC, 2 A
Input: 100–240 VAC, 50–60 Hz
Output: 5 VDC, 2 A
Product Material: Metal Metal Metal
Operating Temperature: 32F to 122F (0 to 50 C) 32F to 122F (0 to 50 C) 32F to 122F (0 to 50 C)
Storage Temperature: -40°F to 185°F(-40°C to 85°C) -40°F to 185°F(-40°C to 85°C) -40°F to 185°F(-40°C to 85°C)
Operating Humidity: 0-95% non-condensing 0-95% non-condensing 0-95% non-condensing
Size: 0.9"H x 3.3"W x 2.7"D
(2.3 x 8.4 x 6.9 cm)
1.6"H x 3.3"W x 2.7"D
(4.1 x 8.4 x 6.9 cm)
1.6"H x 7.8"W x 3"D
(4.1 x 19.8 x 7.6 cm)
Weight: 0.4 lb. (0.2 kg) 0.6 lb. (0.3 kg) 1.3 lb. (0.6 kg)

DOUBLE DIAMOND WARRANTY
The Double Diamond Warranty is our no-questions-asked warranty that protects your BLACK BOX® brand products* from accidental damage, including drops, water, and power surges. Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! During the warranty period, Black Box will repair or replace your damaged equipment within one week of receipt at NO CHARGE!
